Precise inspection, quick solution

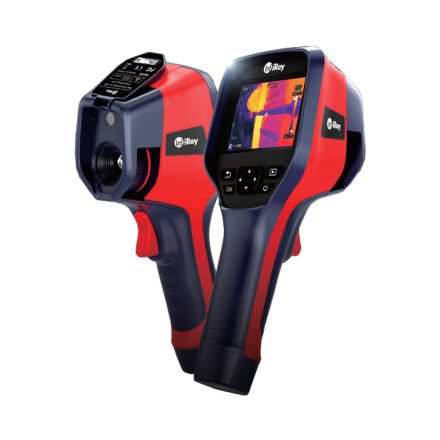

The new InfiRay Tianxuan M600 is a hand-held industrial thermal camera with manual focus intended for professional use, with the help of which extremely accurate measurements can be made in the temperature range of -20°C to +550°C. An extremely easy-to-use tool that is also among the best in the professional world. InfiRay's self-developed 640x512 pixel, 12 µm pixel size thermal image sensor with 35 mK thermal sensitivity and a 5 MP CMOS visible image camera with 30 Hz image refresh together result in an infinitely versatile device that you can now successfully use - opening up new horizons for your business. or during your company's maintenance tasks. All this with the usual market-leading quality and innovations from InfiRay.
Just aim and read!
You can access the information you need with one well-directed movement. With the help of its precisely adjustable manual focus, you save time during an inspection or examination. Its robust construction makes it easy to use and durable even in the event of increased use. It can be used ideally in a wide variety of areas. Thanks to the 48° viewing angle of the M600 model, it is a comfortable and well-sized examination tool that stands its ground in almost any area. Whether it is mechanical inspection or maintenance, product testing, application in automotive service areas, gas, heating and electrical installation work, general building maintenance, users will find an excellent tool for every problem in the M600. Perhaps we could also call it the "right hand" of the user. Yes, this thermal camera is no longer an experiment, it is a technological innovation.
The properties and accuracy of the thermal camera are determined on the one hand by the well-measured viewing angle, the resolution of the thermal sensor and the size of its pixels. The medium-wide viewing angle is ideal for analyzing small areas and for indoor examinations, and with a sensor resolution of 640x512 pixels and a pixel size of 12 µm, the engineers configured it in such a way as to provide a clear, contoured image in all situations, which not only approximates, but also provides accurate and detailed data able to provide - to facilitate the precise localization and discovery of possible errors. It's true that these are close-ups, e.g. when examining electrical switch cabinets (where the wide viewing angle at low magnification and the resolution of the sensor guarantee a more precise error detection than ever before), but the visible heat map is just as spectacular, e.g. a floor heating water circuit, or - with the help of digital magnification - even in the case of remote inspection of high-voltage lines. Basic functions are the indication of the lowest and highest temperature points, but in the case of set temperatures, the possibility of automatic visual or sound alarm is also available. This category already allows the creation of voice notes.
Its ergonomic housing hides an LED light source, and thanks to its comfortable design, it can be used comfortably with either the right or left hand. The creation of the non-slip surface was so effective that the user's first thought after receiving it is that it is really holding a very comfortable and intuitive device in his hand. The operation of the buttons is logical, and safety during work is ensured by the IP54 protection of the device housing, which can be dropped up to 2 meters.
The built-in 3.5" TFT LCD color display with 384x288 pixels shows the data captured by the sensor in great detail. The user can choose from 5 image modes and 10 pseudo color settings, each of which has its own advantages in different analysis situations. The device has infrared and visible image also with a camera. This offers endless possibilities for the user. The fusion function is so special that it combines the thermal image and the visible image in one image. This provides a significantly better interpretable image in many cases. With the help of picture in picture (PIP), its available functions are further become richer. With the help of the latest technology, the so-called "Detail enhancement", an extremely spectacular, clear and detailed thermal image can be displayed. The images created in this way and recorded on a memory card open up new areas for subsequent analysis, or even for the generation of contractor quotations, or the success of the completed works The technology inherent in it makes it possible get offers, the User pushes the limits of creative usability.
The InfiRay M600 measures temperatures from -20°C to +550°C with high accuracy (+/-2°C or +/-2%). Within this interval, its thermal sensitivity can reach up to 0.035°C. All this, together with the 5 MP camera with 30 Hz image refresh rate, can be used even when documenting scientific research work. The emission correction can be changed during the measurement. The device automatically tries to filter out disturbing environmental influencing factors. The thermal camera can store images in JPEG format on the included 32 GB micro SD card. It is possible to save images automatically and manually. The included Li-Ion battery enables up to 3 hours of operation. However, thanks to its USB-C connector, even continuous charging can be done without special connectors. A full charge takes approx. 3 hours.
The device supports the use of a computer analysis application from an optional computer with InfiRay software provided by the manufacturer. Through a USB connection - with the help of the analysis software - even real-time tests or analyzes can be carried out - in a more complex system than ever before. With the help of a cloud service, it is also possible to analyze online in real time. The uploaded data can be shared, it is also possible to use it with several clients. Analyzes can be performed with a mobile application using a WiFi connection.
In hunting and law enforcement circles, InfiRay thermal cameras are well-recognized for their excellent performance, continuous innovation and sophisticated, well-thought-out design.
System requirements for the included analysis software:
CPU: minimum i3
Memory: minimum 4 GB
Operating system: Windows 10 with Office 2010
Display settings (engine): text change the size of applications and other elements at least 100%
- Shockproof up to a drop of 2 meters
- various temperature measurement functions
- IP54 level protection
- JPEG storage, thermal image and visible image together (fusion function)
- outstanding cost effectiveness
- uncooled microbolometer sensor
- sensor size 640x512 pixels
- IFOV: 1.31 mrad
- NETD sensitivity: 35 mK
- manual focus
- spectral measurement range: 8-14 µm
- °C / °F / K
- measurement built-in LED light source
- USB-C connection for image and data transfer
