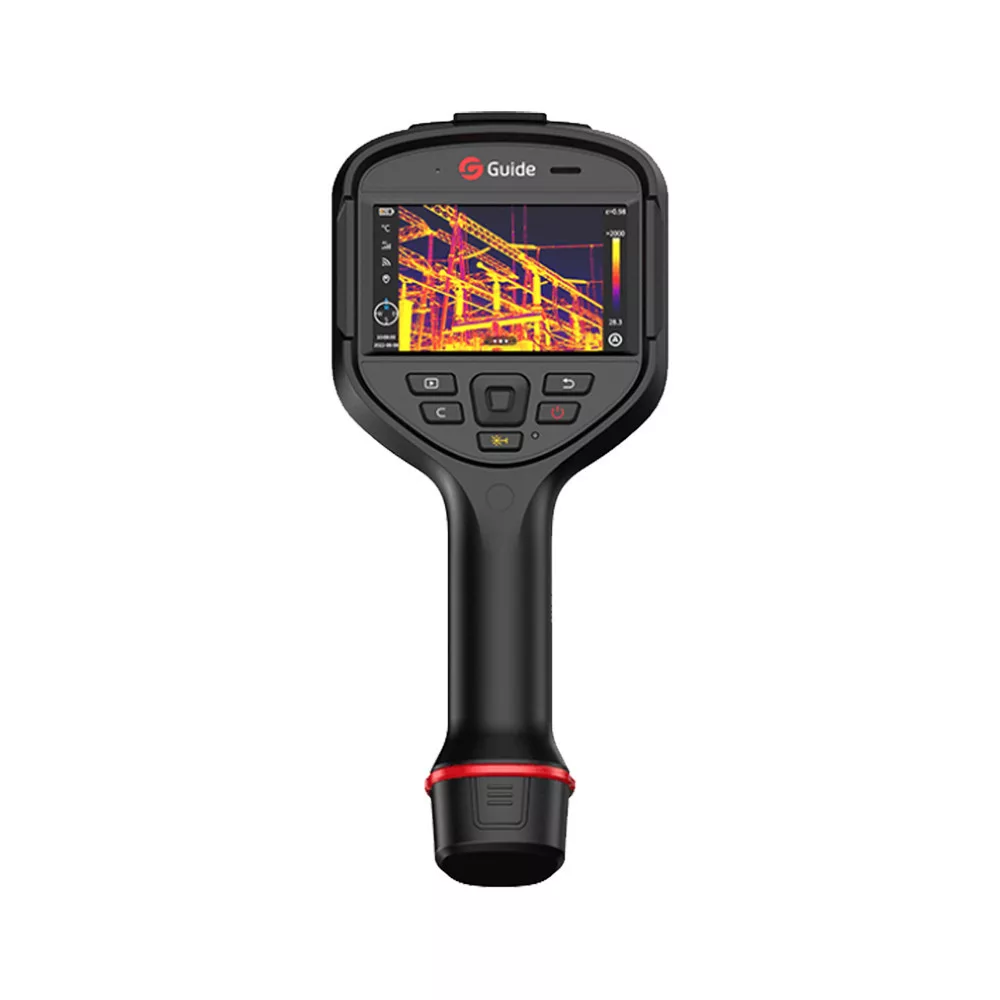

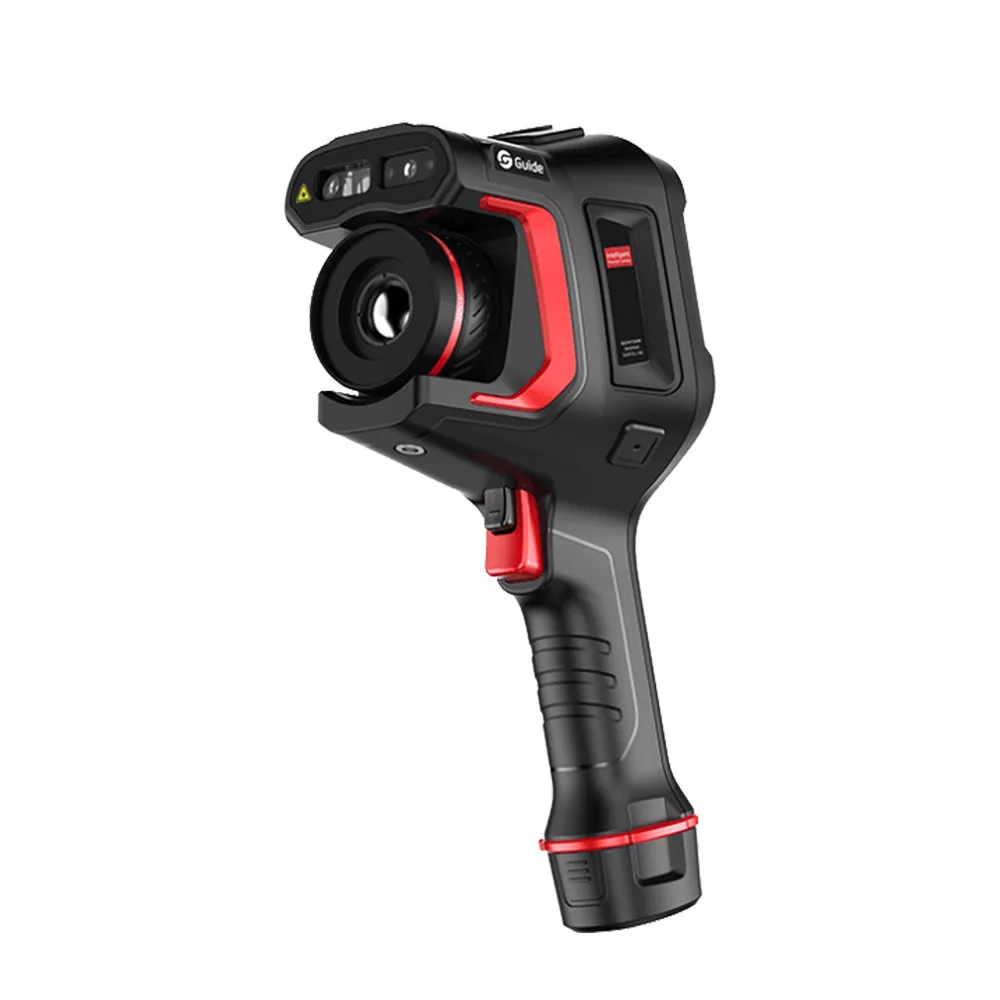

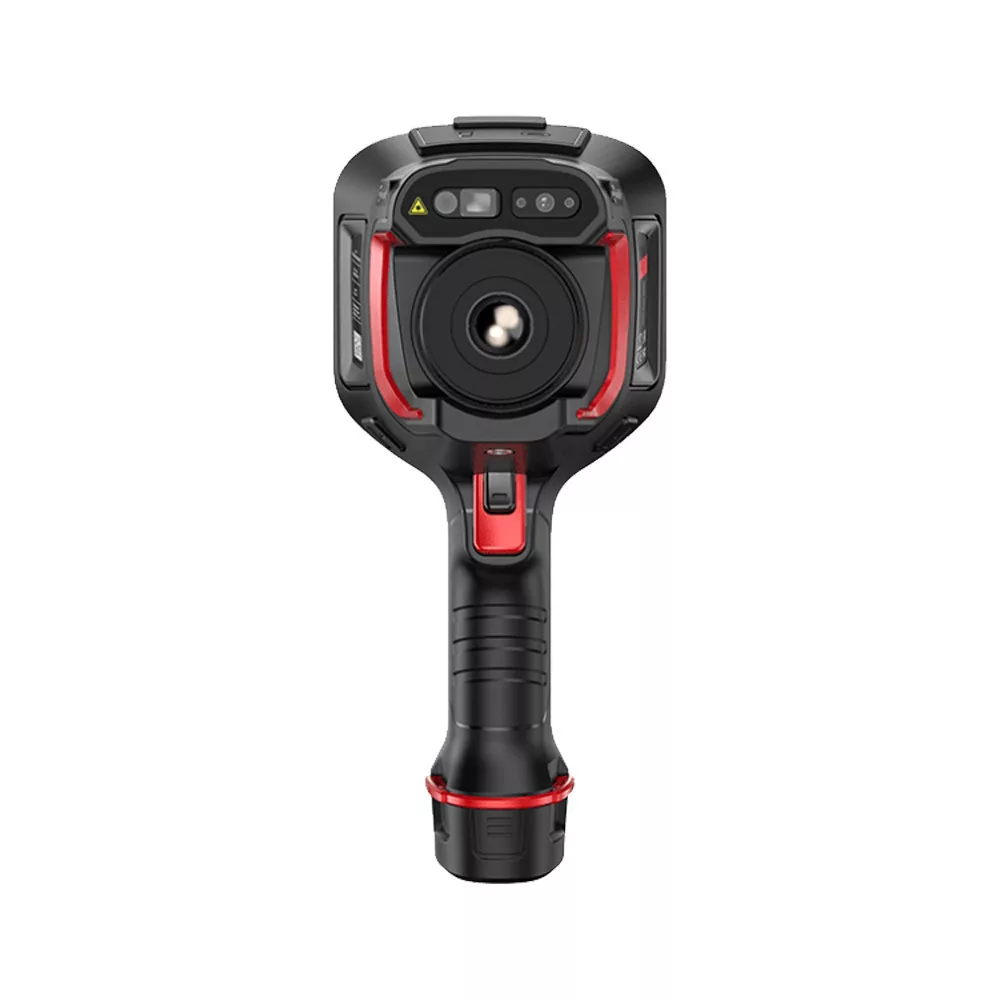

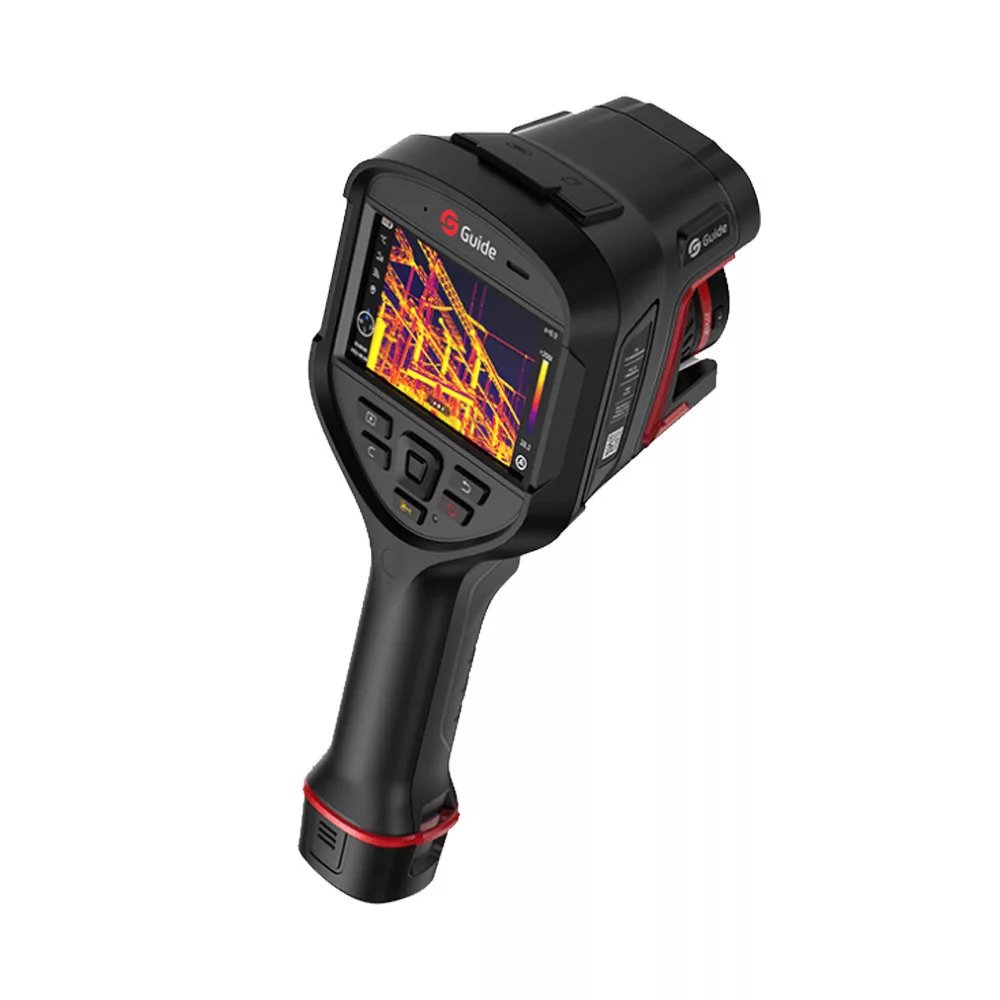

Guide Hammer H3+ Industrial thermal camera

Article No.:
GUIH3PLUS

For industrial purposes

Thermal sensor NETD:
45 mK
User's Guide (HUN), A linkre kattintva letölthető a magyar nyelvű használati útmutató.:

Kattints

User's Guide (HUN):
Thermal sensor:
384x288 12µm
On stock
4 373.54 EUR
3 748.71 EUR
Saving 624.83 EUR
Details

Thermographic Handheld Camera: The Hammer Series

The Hammer series stands out as the leading choice in the realm of thermographic handheld cameras. Equipped with a self-developed high-sensitivity IR detector and a 8MP visible light camera, this high-precision device offers intuitive viewing of high-definition images and temperature details of the target. The classic "hammer" shape ensures a comfortable grip and easy maneuverability in various industrial environments.

High-Sensitivity IR Detector for Precise Imaging

The Hammer Series features a new generation of self-developed infrared focal plane detectors with an impressive resolution of 384x288. This high-sensitivity detector, combined with super-resolution reconstruction technology, enables the camera to produce high-quality, clear thermal images. The superior imaging capabilities of this camera allow users to detect even the subtlest temperature variations, ensuring accurate and reliable monitoring.

Real-Time Presentation of Intuitive Temperature Data

The Hammer Series provides various modes for visualizing temperature data to facilitate quick and efficient analysis. The IR (infrared), VL (visible light), MIF (multiple infrared fusion), and PIP (picture-in-picture) modes allow users to view the temperature data of the target intuitively. Additionally, the camera automatically presents the highest, lowest, and central temperatures on the full-screen display, providing comprehensive insights into the thermal conditions of the monitored area.

Fast and Accurate Temperature Data Capture

The Hammer Series offers an impressive 30Hz infrared frame rate, surpassing similar products in its class. This high frame rate ensures fast and accurate access to temperature data, even for moving targets. With this capability, industrial professionals can efficiently identify temperature anomalies and make informed decisions promptly, preventing potential hazards and optimizing maintenance procedures.

OTA Upgrade for Seamless Performance

Keeping up with the latest technological advancements is crucial in the industrial field. The Hammer Series is designed to support Over-The-Air (OTA) upgrades, ensuring users have access to the latest system version effortlessly. With an increased upgrade speed of 25%, this camera streamlines the process and enables seamless integration with Warehouse Management Systems (WMS). By embracing cutting-edge technology, the Hammer Series guarantees long-term relevance and compatibility with evolving industrial requirements.

Info
When do I get it?: Orderable When do I get it?:
Orderable
Data storage: Local storage (64 GB) and external SD card (up to 256 GB) Data storage:
Local storage (64 GB) and external SD card (up to 256 GB)
Plugs: USB-C Plugs:
USB-C
Digital zoom: 1.1x - 10x Digital zoom:
1.1x - 10x
Other properties:

Image modes:White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, Tint, Black Hot, Blue Hot, Sepia, Green Hot, Ice and Fire, Amber

Laser (Ranging 0.1m to 40m), Microphone, Speaker, Electronic Compass, GPS

Other properties:

Image modes:White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, Tint, Black Hot, Blue Hot, Sepia, Green Hot, Ice and Fire, Amber

Laser (Ranging 0.1m to 40m), Microphone, Speaker, Electronic Compass, GPS

Energy supply: rechargeable Li-ion battery Energy supply:
rechargeable Li-ion battery
File format: JPG , MP4 File format:
JPG , MP4
Resolution: 8 MP Resolution:
8 MP
Manufacturer: Guide Manufacturer:
Guide
Warranty: 2 years manufacturer's warranty Warranty:
2 years manufacturer's warranty
Manufacturer's article number: H3PLUS Manufacturer's article number:
H3PLUS
IFOV: 1.13mrad IFOV:
1.13mrad
Image repetition frequency: 30 Hz / 9 Hz Image repetition frequency:
30 Hz / 9 Hz
Additional informations: Cloud Services, Bluetooth 5.0, Wifi Additional informations:
Cloud Services, Bluetooth 5.0, Wifi
Display: 4.3’, 800×480 pixel touchscreen LCD Display:
4.3’, 800×480 pixel touchscreen LCD
Screen color modes: IR, visual picture, Pip, MIF Screen color modes:
IR, visual picture, Pip, MIF
Field of view (°): 25° × 19° Field of view (°):
25° × 19°
Sizes: 292 × 125 × 125 mm Sizes:
292 × 125 × 125 mm
Measurement properties:

Temperature ranges: -40°C to 150°C, 0°C to 650°C(Automatic switching)

Measurement accuracy: ±2°C or ±2%

Temperature measuring parameters: Emissivity, reflected temperature, target distance, humidity, atmospheric transmittance, optical transmittance, dew point

Measurement properties:

Temperature ranges: -40°C to 150°C, 0°C to 650°C(Automatic switching)

Measurement accuracy: ±2°C or ±2%

Temperature measuring parameters: Emissivity, reflected temperature, target distance, humidity, atmospheric transmittance, optical transmittance, dew point

Working / storage temperature: -20°C to 50°C / -40°C to 60°C Working / storage temperature:
-20°C to 50°C / -40°C to 60°C
Lens: 10.5 mm, fix focus Lens:
10.5 mm, fix focus
Sensor: 384 × 288@12μm, VOx NETD ≤45 mK Sensor:
384 × 288@12μm, VOx NETD ≤45 mK
Color: black Color:
black
In the box:

camera, wrist strap, 64GB SD card, battery charger, USB cable, adapter

In the box:

camera, wrist strap, 64GB SD card, battery charger, USB cable, adapter

Weight (g): ≤1.15KG (with battery) Weight (g):
≤1.15KG (with battery)
Shock resistance: fall resistance 2 m Shock resistance:
fall resistance 2 m
Operating time:

up to 5 hours
Charging time: 90% of full charge in 2.5 hours

Operating time:

up to 5 hours
Charging time: 90% of full charge in 2.5 hours

Water resistance: IP54 Water resistance:
IP54
Product type: Thermal camera, Nightvision Product type:
Thermal camera, Nightvision
EAN code: 6970883551187 EAN code:
6970883551187
Type: Handheld camera Type:
Handheld camera
