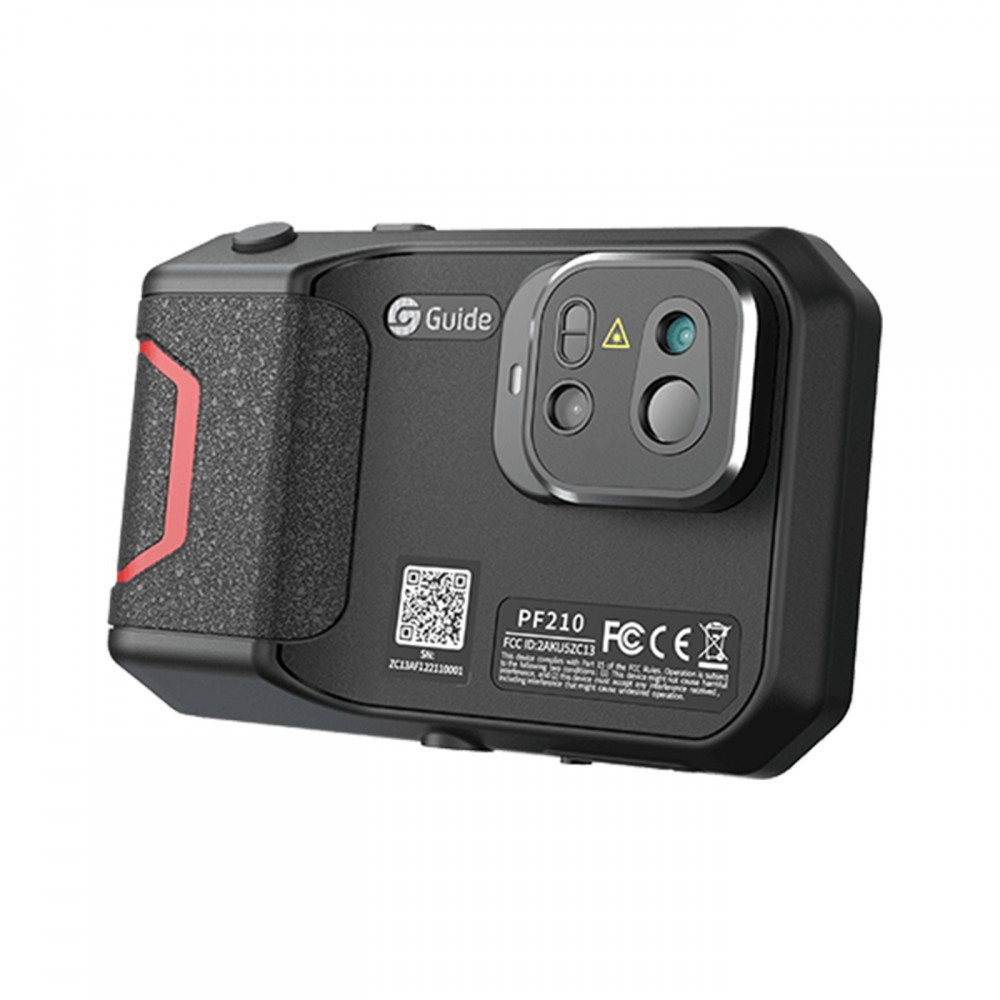

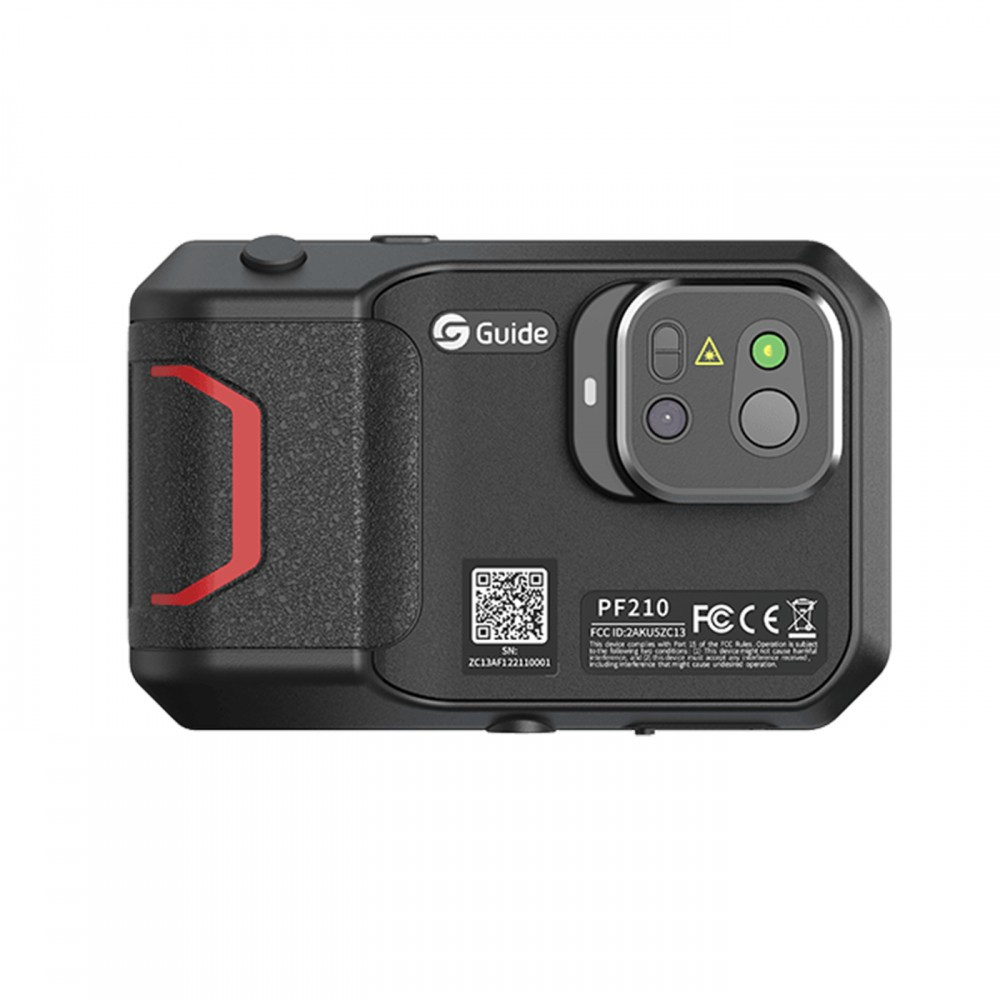

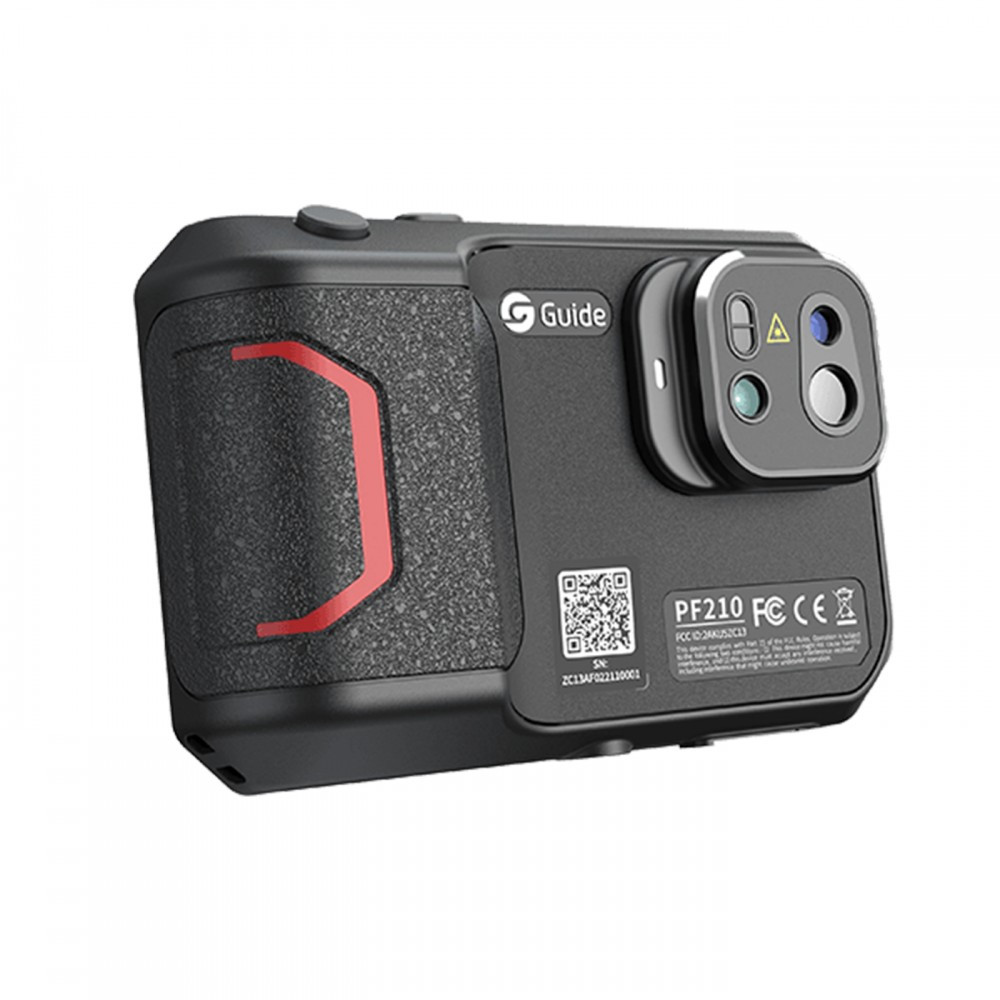

Guide PF210 Thermal Camera

Article No.:
GUIPF210

Excellent quality, large display, different modes, laser rangefinder.

Thermal sensor, The smaller the value the more detail the picture has.: 256x192 12μm Thermal sensor:
256x192 12μm
Thermal sensor NETD:
60 mK
Magnification interval (x):
1.1 – 8
User's Guide (HUN), A linkre kattintva letölthető a magyar nyelvű használati útmutató.:

Hungarian version

 User's Guide (HUN):

Hungarian version

Thermal sensor:
256x192 12μm
Guide PF210 Thermal Camera
Guide PF210 Thermal Camera
Guide PF210 Thermal Camera
1
3
Available for order
501.26 EUR
Details

The PF Series pocket-sized thermal camera is a non-contact inspection tool for diagnosing problems and finding hidden deficiencies of electrical equipment, thanks to its 256 × 192 pixel infrared detector, -20°C to 550°C temperature range, 5 MP visible light camera and 3.5-inch LCD touchscreen. The extraordinary thermal imaging detail, easy operation and built-in Wi-Fi allow users to quickly and easily share the professional reports that document the problem.

Outstanding thermal imagery

The self-developed WLP infrared module with 256x192 resolution and the new noise reduction algorithm ensure the PF Series produces the more crisp, easier-to-identify images.

Real-time temperature information

Get accurate maximum, minimum and center-point temperature readings on a full screen in four modes.

Easy and fast search

Enter a keyword, find the function setting without difficulty and perform the function you need quickly.

Customized function buttons

Two physical buttons keep you free from looking for the most commonly used functions so that a one-button transfer into the desired function can be realized.

Take and view

When images are captured, taping the thumbnails on the upper right corner helps you view the images again and find a hidden deficiency facilely.

Built-in lasers for fast temperature tracking

Laser indicator

Provide precise location and accurate temperature measurement of targets.

Laser rangefinder

Accurate range-to-target and intelligent area calculation of a rectangle object.

Info
When do I get it?: Orderable When do I get it?:
Orderable
Data storage: 16 GB TF (micro USB) card, up to 32 GB compatible Data storage:
16 GB TF (micro USB) card, up to 32 GB compatible
Tripod thread: yes Tripod thread:
yes
Plugs: USB-C Plugs:
USB-C
Digital zoom: 1.1x - 8x Digital zoom:
1.1x - 8x
Other properties: Color palettes: White Hot, Iron Red, Hot Iron, Hot Iron, Arctic, Rainbow 1, Rainbow 2
Settings: temperature, date and time format
battery can be charged in the camera or outside, charging time 2.5 hours in the camera, 5 hours in external charger
automatic turning off, sleep mode
maximum humidity <95%
Certificate: CE, FCC, ROHS



  Other properties:
Color palettes: White Hot, Iron Red, Hot Iron, Hot Iron, Arctic, Rainbow 1, Rainbow 2
Settings: temperature, date and time format
battery can be charged in the camera or outside, charging time 2.5 hours in the camera, 5 hours in external charger
automatic turning off, sleep mode
maximum humidity <95%
Certificate: CE, FCC, ROHS




Energy supply: built-in, rechargeable Li-ion battery Energy supply:
built-in, rechargeable Li-ion battery
Touch screen: yes Touch screen:
yes
Video recording: - Video recording:
-
Manufacturer: Guide Manufacturer:
Guide
Warranty: 2 years manufacturer's warranty Warranty:
2 years manufacturer's warranty
Manufacturer's article number: PF210 Manufacturer's article number:
PF210
Type: Handheld camera Type:
Handheld camera
IFOV: 3.75 mrad IFOV:
3.75 mrad
Image repetition frequency: 25 / 9 Hz Image repetition frequency:
25 / 9 Hz
Display: 320x240 pixel 2.4'',TFT Display:
320x240 pixel 2.4'',TFT
Screen color modes: 6 color modes Screen color modes:
6 color modes
Field of view (°): 56° × 48° Field of view (°):
56° × 48°
Minimum focus range (m): 0.3 Minimum focus range (m):
0.3
Least magnification: 1.1 Least magnification:
1.1
Utmost magnification: 8 Utmost magnification:
8
Sizes: 138 × 89 × 34.4 mm Sizes:
138 × 89 × 34.4 mm
Measurement properties:

Temperature ranges: -20°C - 400°C
Accuracy: +/- 2°C, or +/- 2% for ambient temperatures between 15 and 30°C, for object temperatures above 0°C

 Measurement properties:

Temperature ranges: -20°C - 400°C
Accuracy: +/- 2°C, or +/- 2% for ambient temperatures between 15 and 30°C, for object temperatures above 0°C

Working / storage temperature: -10 - +50 / -40 - +70°C Working / storage temperature:
-10 - +50 / -40 - +70°C
Magnification: 1.1-8x Magnification:
1.1-8x
Lens: 2.28 mm, F1.13, fix focus Lens:
2.28 mm, F1.13, fix focus
Spectral range: 7.5 - 14 μm Spectral range:
7.5 - 14 μm
Sensor: 120x90 pixel uncooled VOx UFPA microbolometer , 17 μm pixel size, NETD: 60 mK, Sensor:
120x90 pixel uncooled VOx UFPA microbolometer , 17 μm pixel size, NETD: 60 mK,
Color: grey Color:
grey
In the box: camera, wrist strap, 16 GB TF card, battery charger, USB-C cable, user's manual In the box:
camera, wrist strap, 16 GB TF card, battery charger, USB-C cable, user's manual
Supported photo resolutions: .jpeg 120x90 Supported photo resolutions:
.jpeg 120x90
Supported video resolutions: - Supported video resolutions:
-
Weight (g): 296 Weight (g):
296
Shock resistance: fall resistance 2 m Shock resistance:
fall resistance 2 m
Operating time: 8 hours Operating time:
8 hours
Water resistance: IP54 Water resistance:
IP54
Wi-Fi: yes Wi-Fi:
yes
Product type: Thermal camera, Nightvision Product type:
Thermal camera, Nightvision
EAN code: 6970883550531 EAN code:
6970883550531
Type: Handheld camera Type:
Handheld camera
