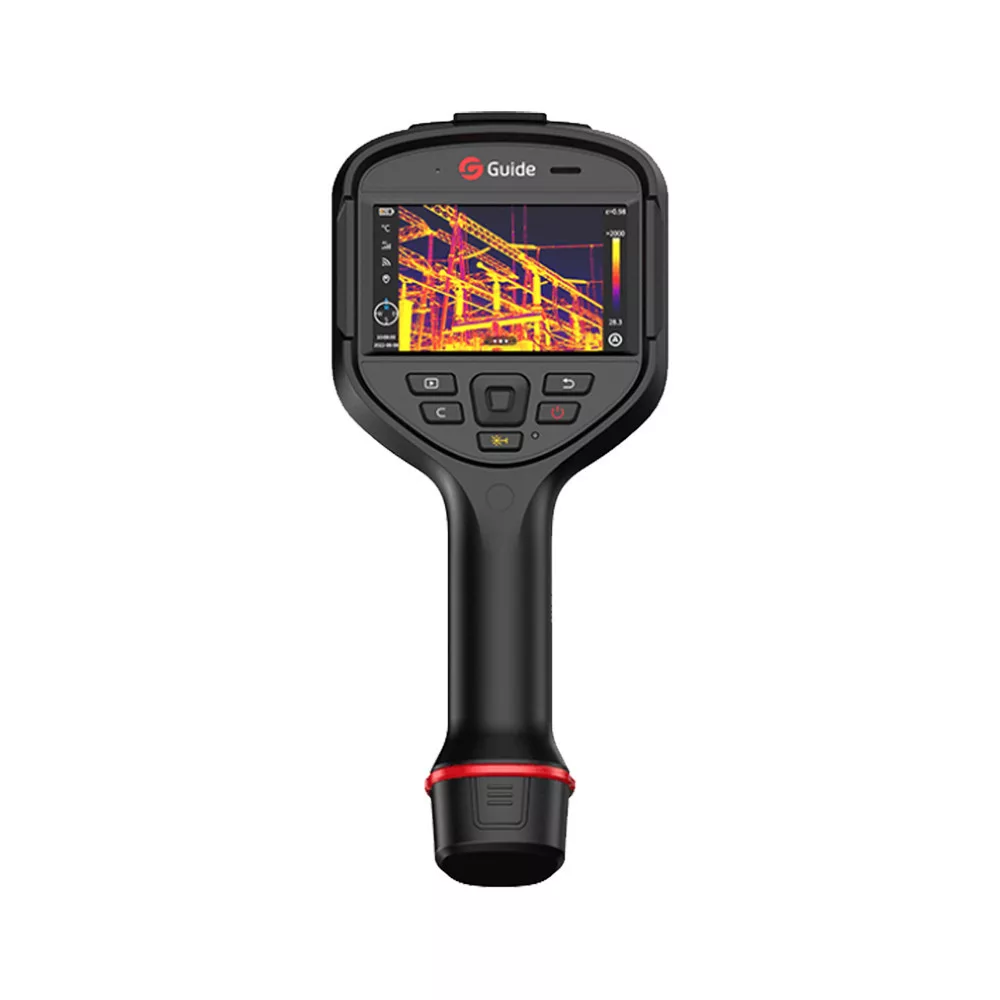

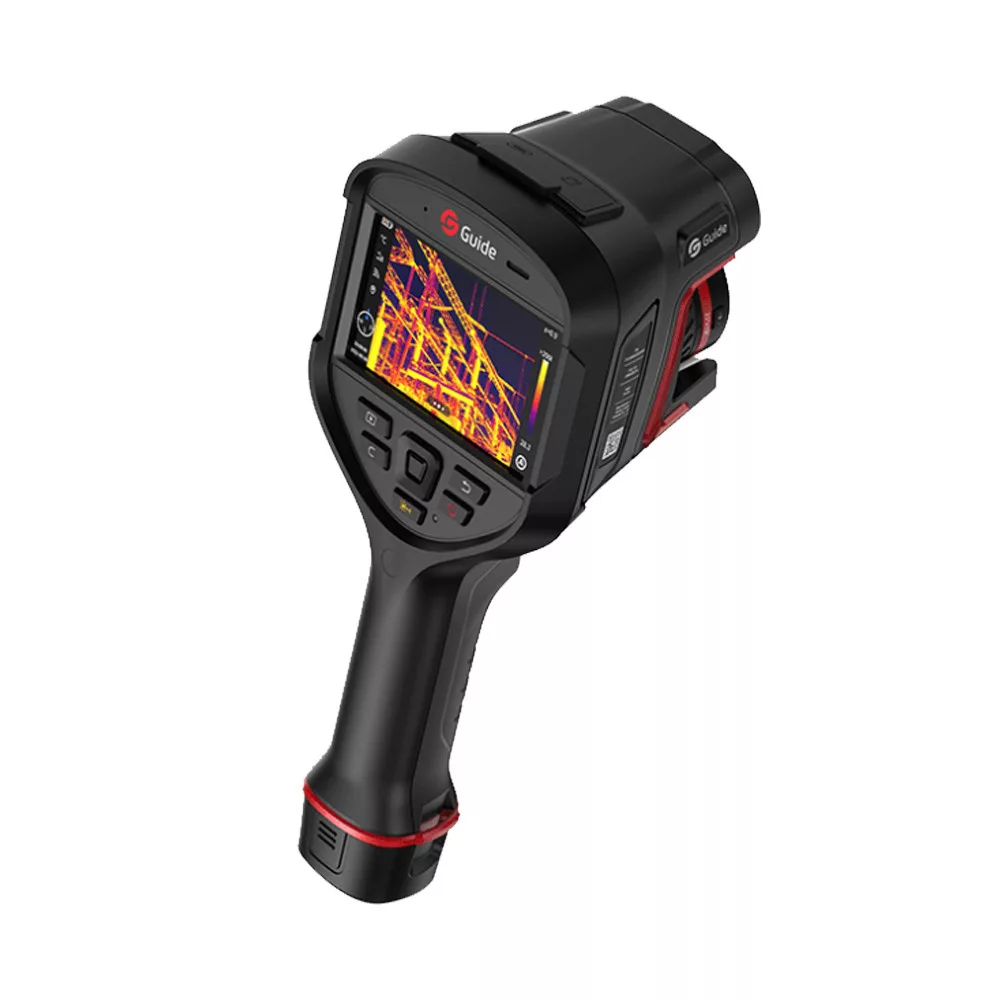

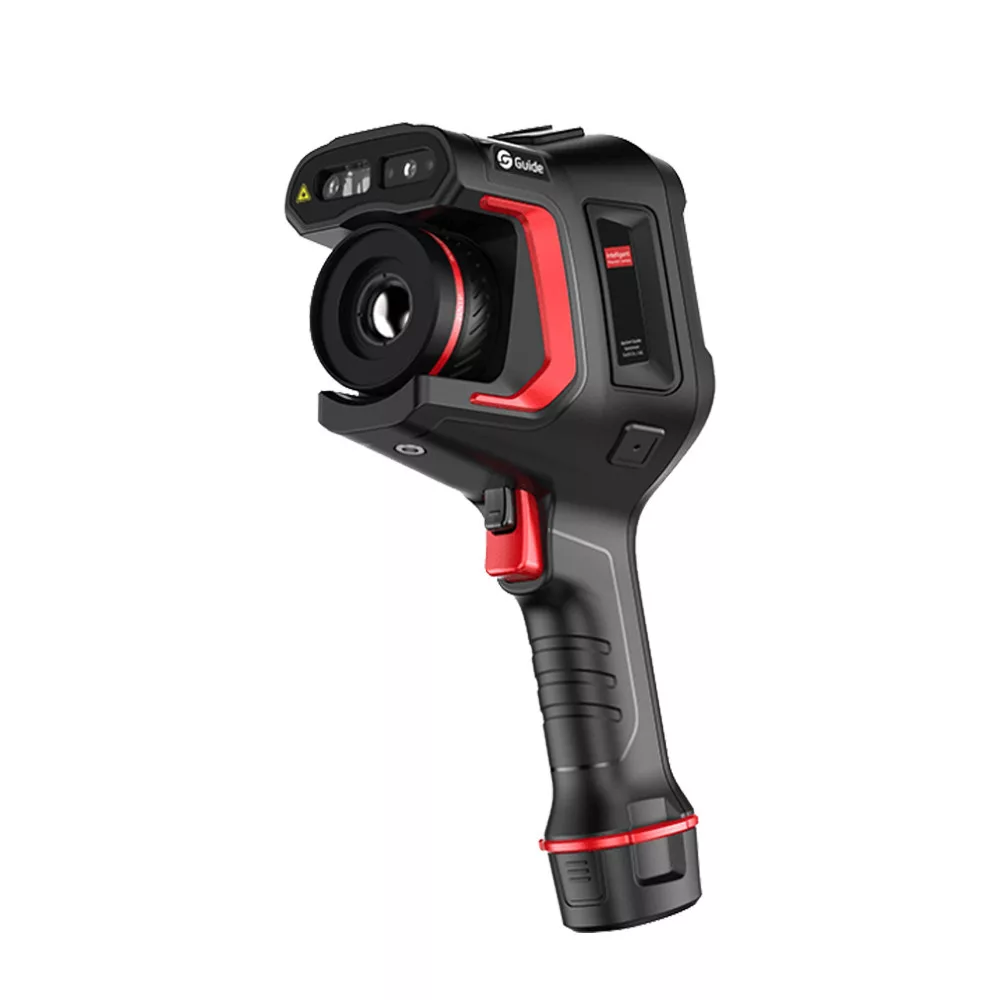

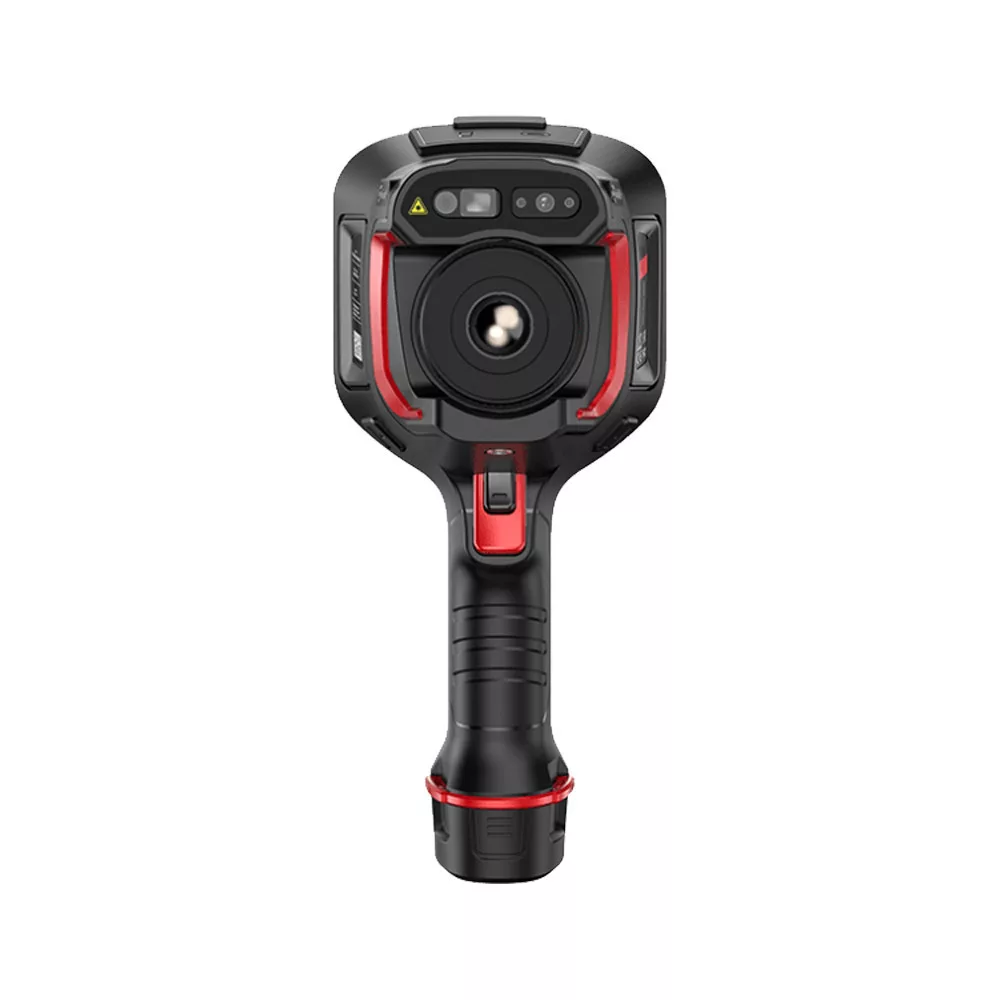

Guide Hammer H6 II Industrial thermal camera
Item number:
GUIH6II

Entry level pocket size for industrial purposes

User's Guide (HUN):
Thermal sensor NETD:
20 mK
Thermal sensor:
640x480 12μm
On stock
10 362.15 EUR
Details

GUIDE H Series Enhanced

High-Precision Hammer-Style Infrared Camera is specifically designed for industrial inspections and electrical grid maintenance. Equipped with a proprietary self-developed high-sensitivity detector (NETD <30mK, 640×480 resolution), its 50Hz high frame rate and wide temperature measurement range ensure precise capture of abnormal heating points. Equipped with a single-lens dual-FOV design, it instantly switches between wide-angle and narrow-angle views without lens changes. This enables seamless adaptation to complex scenarios, efficiently handling both long-distance inspections and close-range temperature measurements.

TwinView DFoV Lens

Switch seamlessly between long-range scanning and close-range temperature measurement without lens changes-efficiently tackling diverse scenarioswith unmatched versatility.

50Hz High Frame Rate

50Hz frame rate captures thermal dynamics instantly,ensuring zero missed detections in industrial inspections.

90% Charge in 1 Hour

Charge to 90% in 1 hour, minimizing downtime for critical missions.

2000℃ Ultra-High Temp

Covers -40 to 2000, delivering accuracy from freezing cold to molten furnaces, ensuring error-free measurements in environments like kilns and reactors.

5 Focus Modes

5 focus modes and rapid focus system boost success rates by 90% in complex scenarios.

PerIRVision Panoramic Stitching

AI-powered stitching improves large-area thermal scanning efficiency by 80% for substations, buildings, and more.

Local Dimming

Features 4 LevelSpan modes (A, M, S, L), where mode L enables real-time target framing. Touch to move the region, dynamically enhancing contrast in focused areas while highlighting potential anomalies.

Data
When do I get it?:
Orderable
Data storage:
Local storage (64 GB) and external SD card (up to 256 GB)
Plugs:
USB-C
Digital zoom:
1.1x - 20x
Other properties:

Image modes:White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, Tint, Black Hot, Blue Hot, Sepia, Green Hot, Ice and Fire, Amber

Laser (Ranging 0.1m to 40m), Microphone, Speaker, Electronic Compass, GPS

Energy supply:
rechargeable Li-ion battery
File format:
JPG , MP4
Resolution:
13 MP
Manufacturer:
Guide
Warranty:
2 years manufacturer's warranty
Manufacturer's article number:
H6II
IFOV:
0.68mrad
Image repetition frequency:
50 Hz / 9 Hz
Additional informations:
Cloud Services, Bluetooth 5.0, Wifi
Display:
4.3’, 800×480 pixel touchscreen LCD
Screen color modes:
IR, visual picture, Pip, MIF
Field of view (°):
25° × 19°
Sizes:
292 × 125 × 125 mm
Measurement properties:

Temperature ranges: -40°C to 150°C, 0°C to 650°C, 500°C to 2000°C(Automatic switching)



Measurement accuracy: ±2°C or ±2%



Temperature measuring parameters: Emissivity, reflected temperature, target distance, humidity, atmospheric transmittance, optical transmittance, dew point

Working / storage temperature:
-20°C to 50°C / -40°C to 60°C
Lens:
17.7 mm, fix focus
Sensor:
640 × 480@12μm, VOx NETD ≤20 mK
Color:
black
In the box:

camera, 2pcs batteries, wrist strap, 64GB SD card, battery charger, USB cable, adapter

Weight (g):
1.24KG (with battery)
Shock resistance:
fall resistance 2 m
Operating time:

up to 4 hours
Charging time: 90% of full charge in 2.5 hours

Water resistance:
IP54
Product type:
Thermal camera, Nightvision
EAN code:
6970883551163
Device structure:
Handheld camera
