Name: Guide E3 Thermal Camera
Brand: Guide
SKU: GUIE3
Price: 709.07 EUR
Availability: InStock

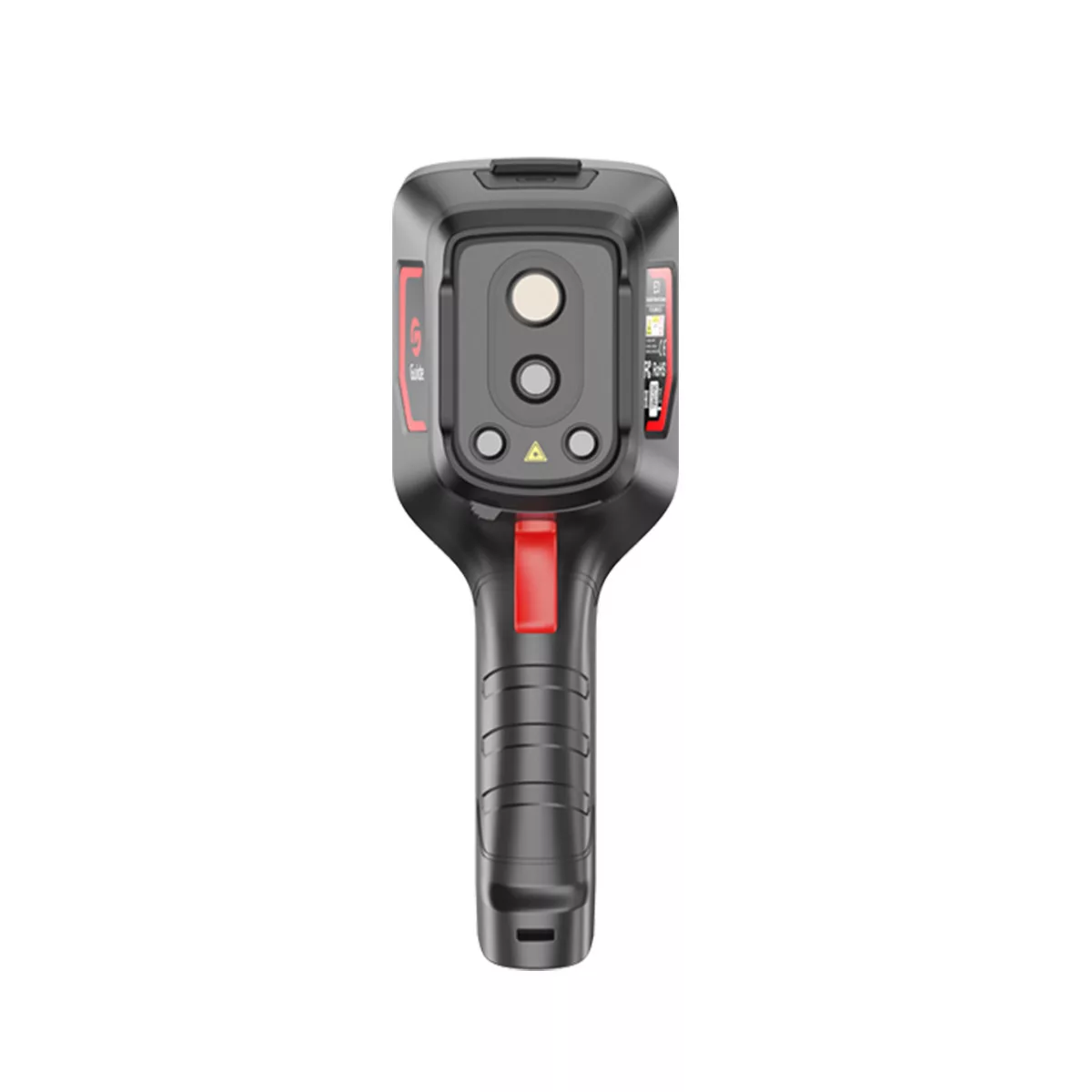

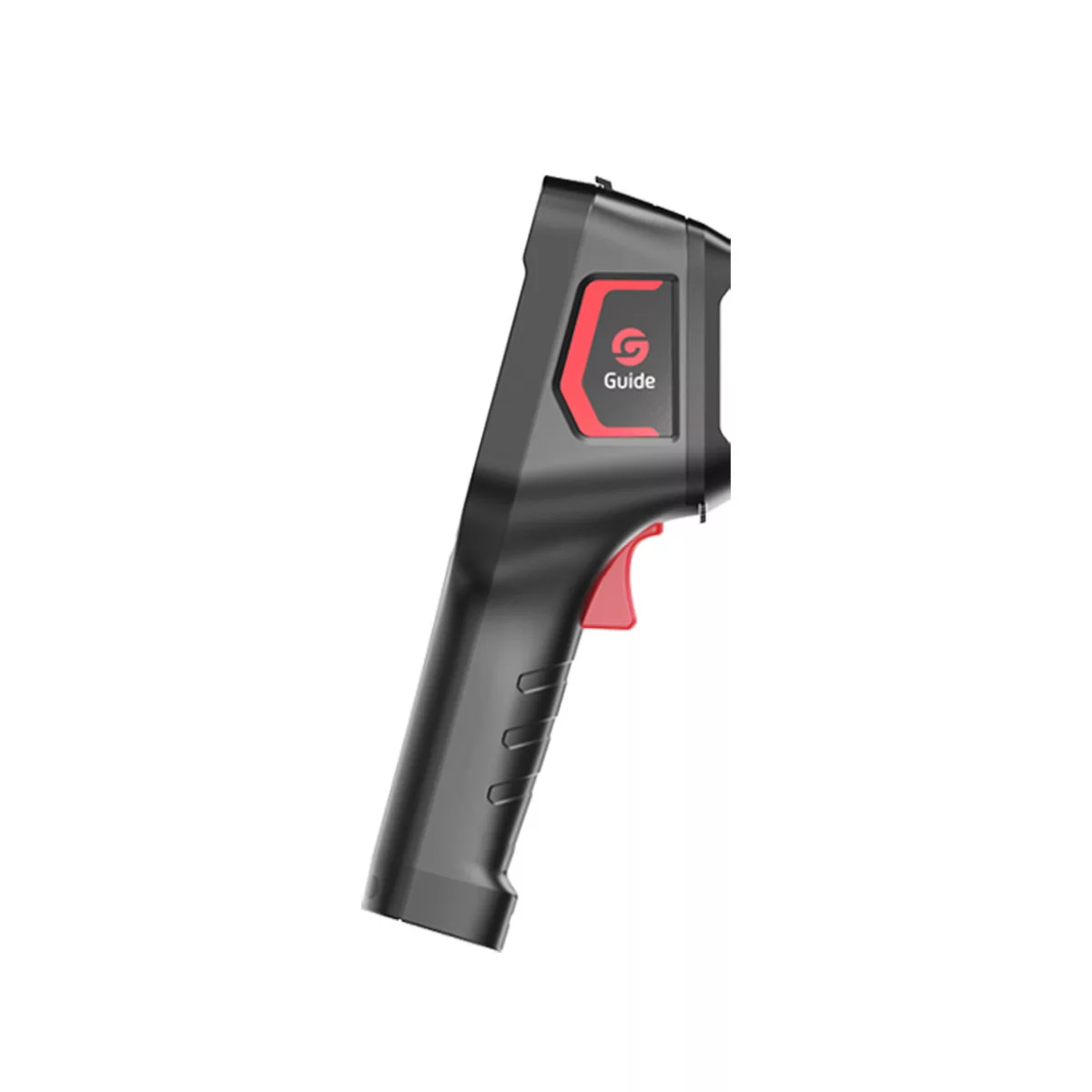

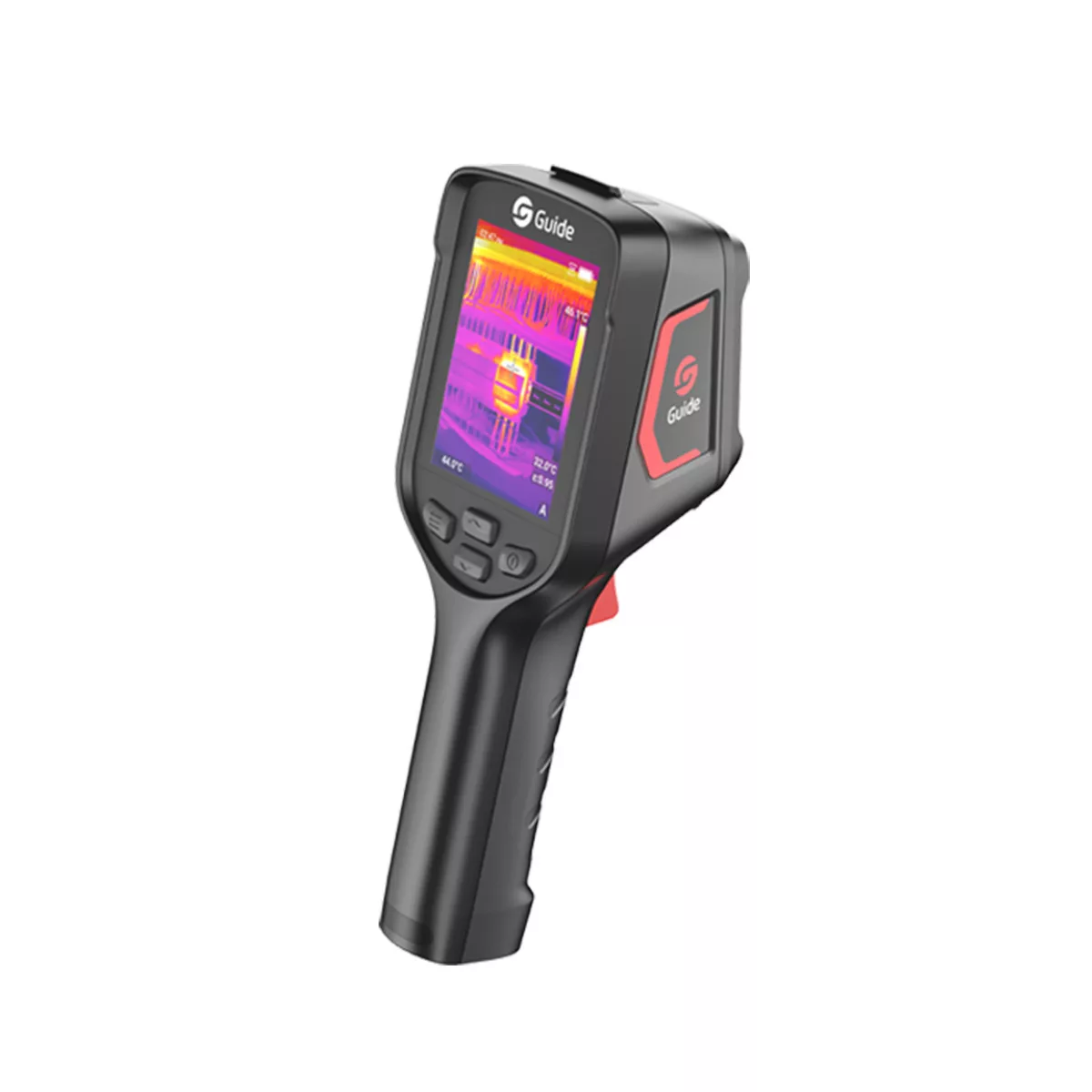

Guide E3 Thermal Camera

Item number:

GUIE3

User's Guide (HUN):

Thermal sensor NETD:

30 mK

Magnification interval (x):

1 – 1

Thermal sensor:

256x192 12μm

On stock

709.07 EUR

Details

EasIR Series offers high-resolution detectors (256×192 or 384×288) for precise capture of minute temperature variations. Featuring IR-Perfclear technology, it optimizes image details and reduces noise in real time, delivering exceptionally clear thermal imaging. The device is equipped with a 3.5-inch bright HD display and a 2 MP visible-light camera, supporting both synchronous display or image fusion of thermal and visible-light. Enhanced with smart capabilities including live video streaming, recording, Wi-Fi connectivity, and OTA upgrades, it significantly boosts work efficiency.

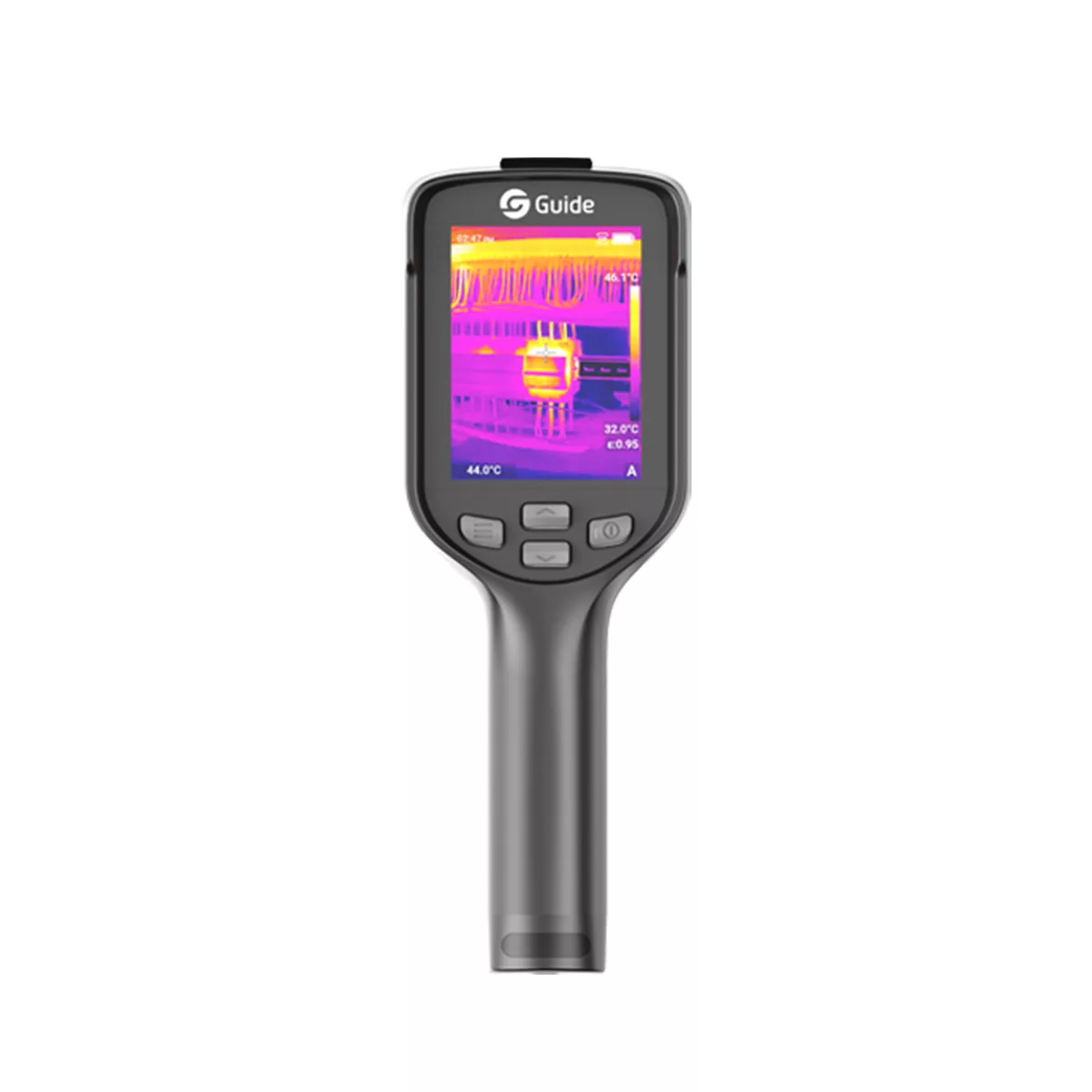

3.5-inch large screen

The expansive 3.5-inch display provides a clear view of details, enabling precise control of critical information.

Real-time IR-Perfclear technology

Features IR-Perfclear real-time super resolution technology for 4x image quality enhancement.

Up to 550℃ Measurement Range

Measurement range covers -20°C to 150°C, 0°C to 550°C, enabling stable analysis in challenging environments.

OTA Updates

Featuring encrypted transmission and verification for secure and stable upgrades. Update with a single click, anytime, anywhere.

2-Meter Drop Proof

Certified for 2-meter drop resistance. Unfazed by rain, high temperatures, or harsh conditions.

Data

When do I get it?:

Orderable

Data storage:

32 GB built-in memory

Plugs:

USB-C

Other properties:

Color palettes: Iron Red, White Hot, Arctic, Rainbow 2, Hot Iron, Rainbow 1

Certificate: CE, FCC, RoHS, KC, EAC, FDA, Anatel, IP54, 2m drop test, vibration test, shock test, impact test, UN38.3, MSDS

Energy supply:

built-in, rechargeable Li-ion battery

Resolution:

2 MP

Felvétel üzemmódok:

Photo and Video

Manufacturer:

Guide

Warranty:

2 years manufacturer's warranty

IFOV:

3.75 mrad

Image repetition frequency:

30 / 9 Hz

Display:

3.5" LCD , 640×480

Screen color modes:

6 color modes

Field of view (°):

56°×42°

Minimum focus range (m):

0.3 m

Least magnification:

Utmost magnification:

Sizes:

228×81×77.5mm

Measurement properties:

Temperature ranges: -20°C to 150°C, 0°C to 550°C

Accuracy: +/- 2°C, or +/- 2 %

Working / storage temperature:

-15 - +50 / -

Magnification:

Lens:

3.2 mm focal length

Spectral range:

7.5 - 14 μm

Sensor:

256×192 pixel uncooled VOx microbolometer , 12 μm pixel size, NETD: 30 mK,

Color:

black

In the box:

camera, wrist strap, 32 GB built in memory, battery charger, USB-C cable, user's manual

Supported photo resolutions:

.jpeg

Supported video resolutions:

.irgd

Weight (g):

440

Shock resistance:

fall resistance 2 m

Operating time:

up to 12 hours

Water resistance:

IP54

Wi-Fi:

yes

Product type:

Thermal camera, Nightvision

EAN code:

6970883552665

Device structure:

Handheld camera
