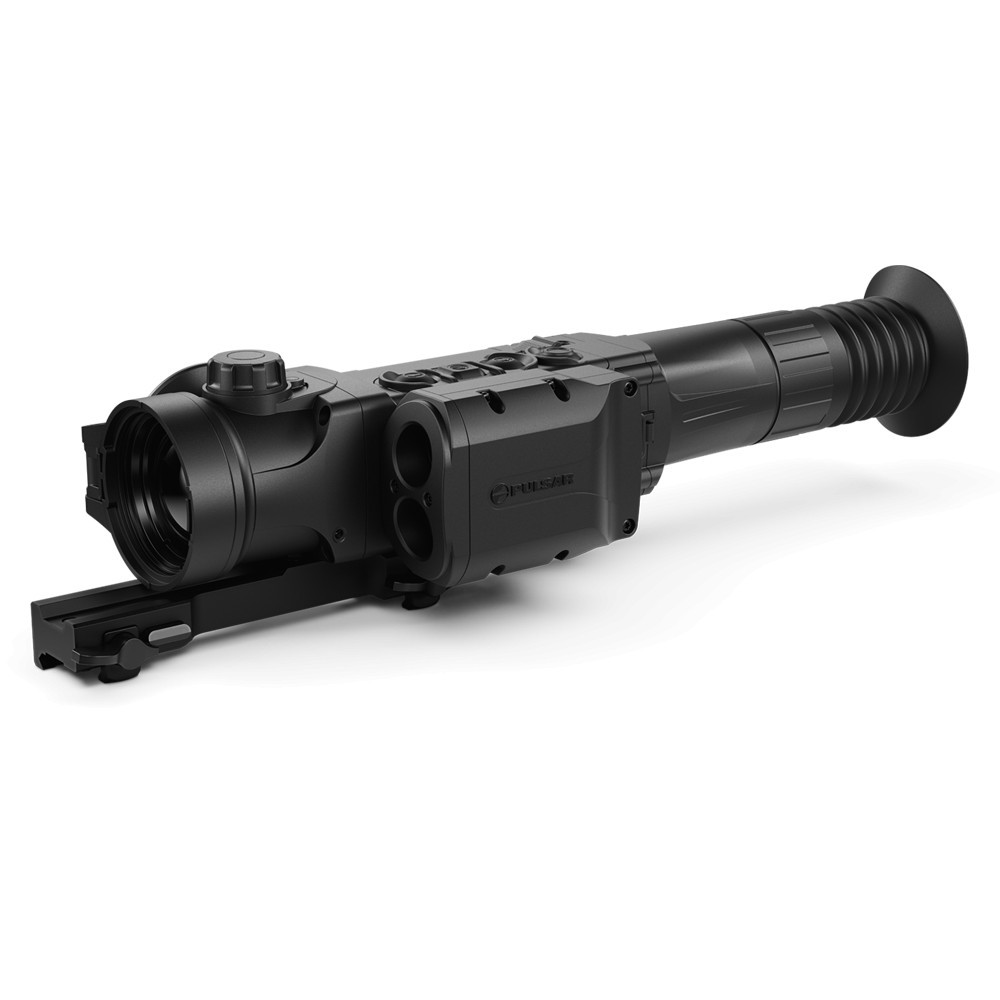

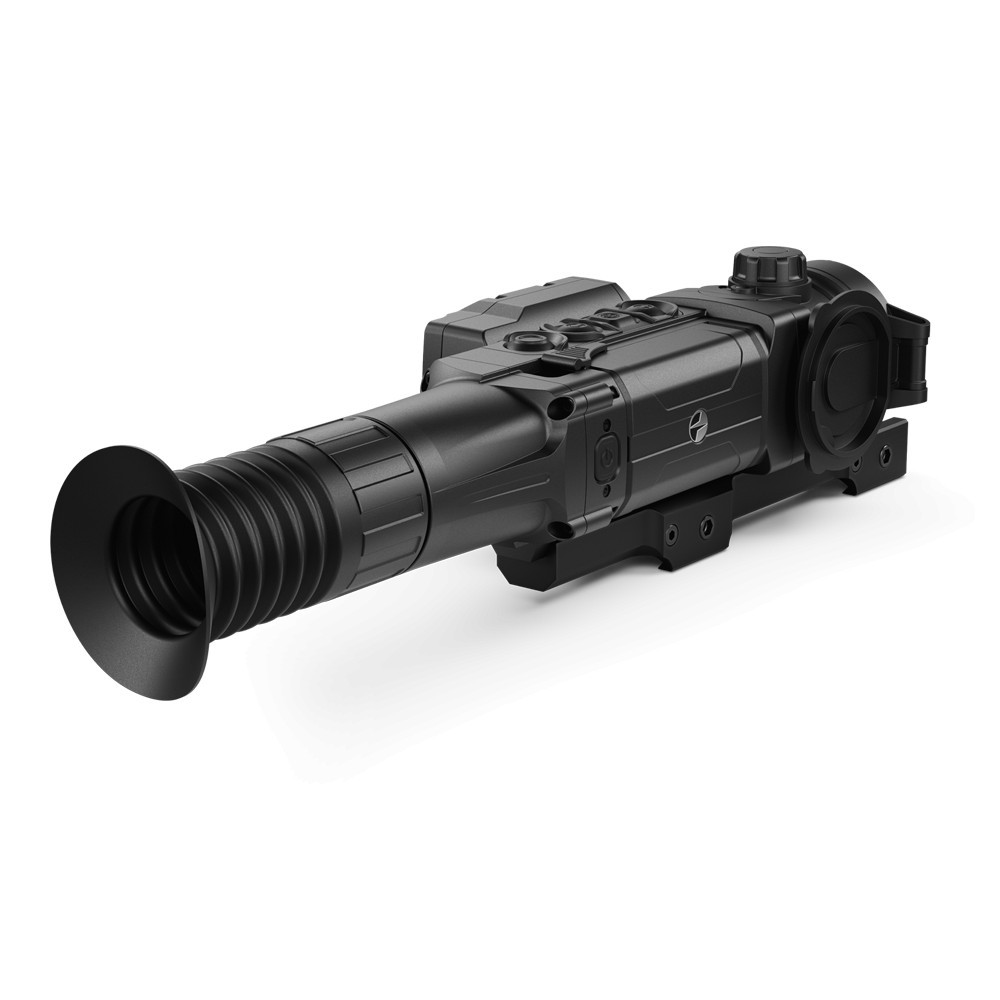

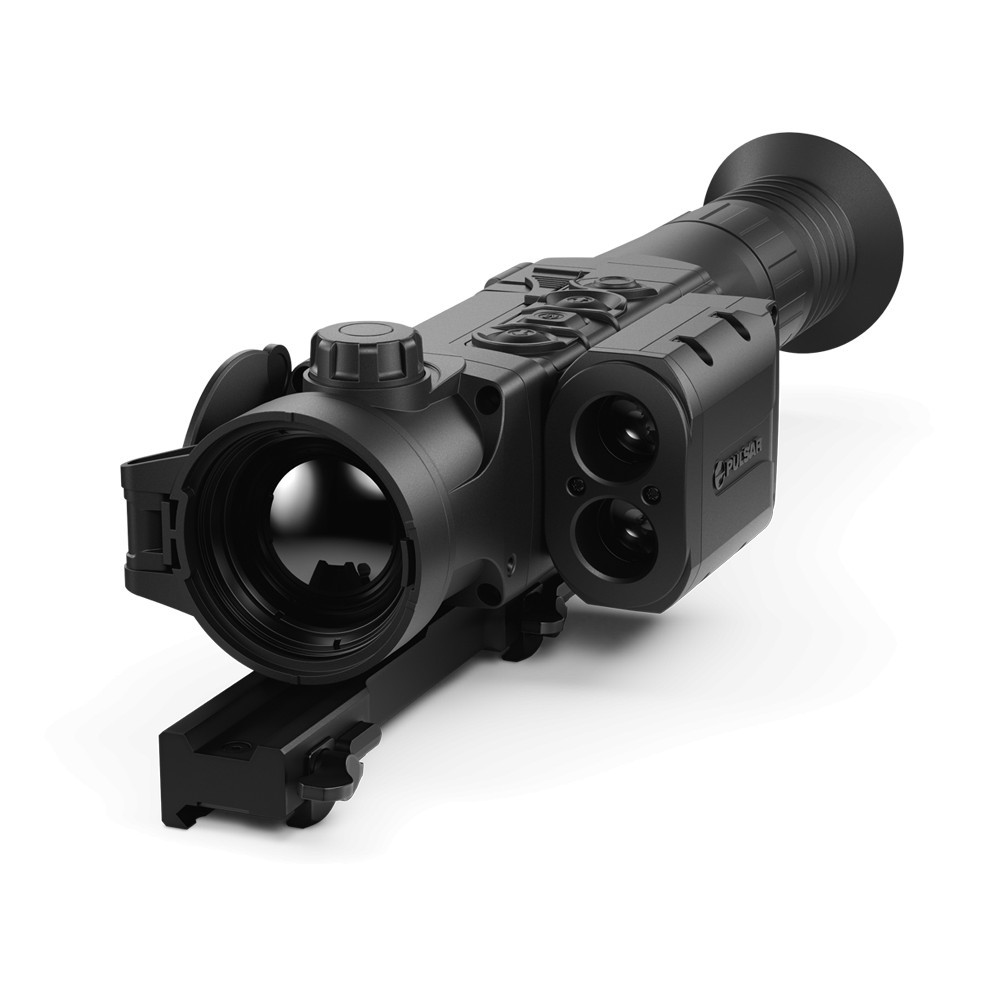

Pulsar Trail XQ50 LRF thermal imaging riflescope

Article No.:
PUL76558X
384 x 288 pixel sensor resolution

- 3.5 x - 14x magnification (3.5x optical, 4x digital)

- 17 µm pixel pitch, 50 Hz image refresh

- laser rangefinder

- AMOLED display

- gyroscope, inclinometer

- waterproof (IPX7), internal image capture unit

- Wifi & micro USB port

- Android and IOS application

- range of detection: 1800m (human target) 3800m (car)

- with Weaver rail, QD112 quick release adapter can be purchased separately

Shipping is not allowed due export restrictions outside Hungary
Riflescope front lens diameter:
42 mm
Riflescope magnification:
3.5 - 14x
Thermal sensor, The smaller the value the more detail the picture has.: 384x288 17µm Thermal sensor:
384x288 17µm
Thermal sensor NETD:
40 mK
Horizontal field of view (°), One of the most important value when choosing the proper thermal camera. Bigger values are better for short distance. Less values are better for great distances.: 7.5 Horizontal field of view (°):
7.5
Céltávcső frontlencse átmérő:
42 mm
Thermal sensor:
384x288 17µm
3 211.36 EUR
Details
Coming soon…
Info
Article number: PUL76558X Article number:
PUL76558X
Data storage: 16 GB belső memória, több mint 150 perc videó, több mint 10000 kép Data storage:
16 GB belső memória, több mint 150 perc videó, több mint 10000 kép
Eye relief: 50 mm Eye relief:
50 mm
Plugs: micro-USB Plugs:
micro-USB
Digital zoom: 2x, 4x Digital zoom:
2x, 4x
Diopter compensation: +-4dpt Diopter compensation:
+-4dpt
Other properties: Hullámhossz: 905 nm
Lézeres távmérés 1000 méterig +/-1 méter pontossággal
​WiFi funkció 15 m hatósugárral
Other properties:
Hullámhossz: 905 nm
Lézeres távmérés 1000 méterig +/-1 méter pontossággal
​WiFi funkció 15 m hatósugárral
Energy supply: 6400 mAh IPS7 akkumulátor Energy supply:
6400 mAh IPS7 akkumulátor
Detection distance (Information data, that shows the distance an object can be seen from as one pixel. It's just one pixel without shape and contours. The distance, from that the object, game or human body can be identificate with it's shape, is usually much shorter.): 1800 m (emberalak) Detection distance:
1800 m (emberalak)
Manufacturer: Pulsar Manufacturer:
Pulsar
Warranty: 3 év, 1 év az akkumulátorra Warranty:
3 év, 1 év az akkumulátorra
Alternative power source: 5 V Alternative power source:
5 V
Image repetition frequency: 50Hz Image repetition frequency:
50Hz
Display: 1024x768 AMOLED Display:
1024x768 AMOLED
Field of view (m): 13.1m / 100m Field of view (m):
13.1m / 100m
Field of view (°): 7.5x5.6° Field of view (°):
7.5x5.6°
Minimum focus range (m): 5 Minimum focus range (m):
5
Least magnification: 3.5 Least magnification:
3.5
Utmost magnification: 14 Utmost magnification:
14
Shock resistance: 6000 J Shock resistance:
6000 J
Sizes: 292x102x76 mm Sizes:
292x102x76 mm
Lens: 50 mm F1.2 Lens:
50 mm F1.2
Old article number: PUL76558X Old article number:
PUL76558X
Reticle adjusments: 13 / 13 klikk 100 m-en, 2600/2600 mm 100 m-en, több mint 10 féle szálkereszt Reticle adjusments:
13 / 13 klikk 100 m-en, 2600/2600 mm 100 m-en, több mint 10 féle szálkereszt
Sensor: hűtetlen mikrobolométer 384x288, 50Hz, Pixel méret 17µm, NETD: 40mK Sensor:
hűtetlen mikrobolométer 384x288, 50Hz, Pixel méret 17µm, NETD: 40mK
Color: black Color:
black
In the box: IPS7 akkumulátor In the box:
IPS7 akkumulátor
Supported photo resolutions: 1024x768 Supported photo resolutions:
1024x768
Supported video resolutions: 1024x768 Supported video resolutions:
1024x768
Rangemaster options: beépített lézeres távmérő Rangemaster options:
beépített lézeres távmérő
Weight (g): 710 Weight (g):
710
Operating time: 8 óra Operating time:
8 óra
Világítópont opciók: van Világítópont opciók:
van
Water resistance: IPX7 Water resistance:
IPX7
Product type: Thermal camera, Nightvision Product type:
Thermal camera, Nightvision
Riflescope magnification: 3.5 - 14x Riflescope magnification:
3.5 - 14x
