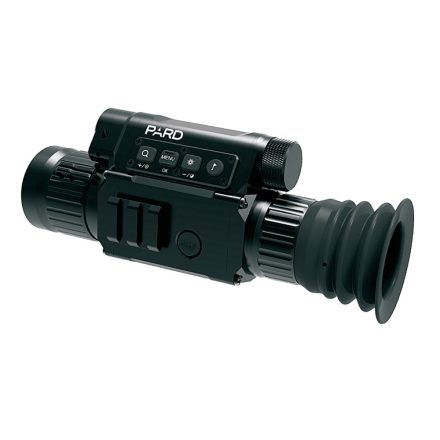

Pard SA 45 thermal imaging riflescope

Article No.:
PARDSA45
Riflescope front lens diameter:
45 mm
Riflescope magnification:
3.9 - 15.6x
Thermal sensor, The smaller the value the more detail the picture has.: 384x288 17µm Thermal sensor:
384x288 17µm
Magnification interval (x):
3.9 – 15.6
Horizontal field of view (°), One of the most important value when choosing the proper thermal camera. Bigger values are better for short distance. Less values are better for great distances.: 7.2 Horizontal field of view (°):
7.2
User's Guide (HUN), A linkre kattintva letölthető a magyar nyelvű használati útmutató.:

Kattintson

User's Guide (HUN):
Céltávcső frontlencse átmérő:
45 mm
Thermal sensor:
384x288 17µm
2 750.04 EUR
Details
Coming soon…
Info
Article number: PARDSA45 Article number:
PARDSA45
Material: 7075 alumínium ötvözet Material:
7075 alumínium ötvözet
Eye relief: 45 mm Eye relief:
45 mm
Plugs: Video kimenet, csak csatlakozó. A készülék video rögzítésére nem képes, belső memóriája nincs. Plugs:
Video kimenet, csak csatlakozó. A készülék video rögzítésére nem képes, belső memóriája nincs.
Digital zoom: 2x, 3x, 4x Digital zoom:
2x, 3x, 4x
Diopter compensation: -5 - +5 dpt Diopter compensation:
-5 - +5 dpt
Other properties: 9 féle szálkereszt és 4 színben, vagy szálkereszt nélküli üzemmód
elektronikus iránytű
keresőként is használható
Other properties:
9 féle szálkereszt és 4 színben, vagy szálkereszt nélküli üzemmód
elektronikus iránytű
keresőként is használható
Energy supply: 1 x 18650 3.7 V cserélhető Li-ion akku Energy supply:
1 x 18650 3.7 V cserélhető Li-ion akku
Detection distance (Information data, that shows the distance an object can be seen from as one pixel. It's just one pixel without shape and contours. The distance, from that the object, game or human body can be identificate with it's shape, is usually much shorter.):

emberalak: 1800 m;
jármű: 3800 m

Detection distance:

emberalak: 1800 m;
jármű: 3800 m

Front lens diameter: 45 mm Front lens diameter:
45 mm
Manufacturer: Pard Manufacturer:
Pard
Warranty: 3 év Warranty:
3 év
Image repetition frequency: 50 Hz Image repetition frequency:
50 Hz
Display: 1024x768 pixel Display:
1024x768 pixel
Screen color modes: 5 féle - Fehér kiemelt, fekete kiemelt, vörös kiemelt, In-Hot, Égbolt Screen color modes:
5 féle - Fehér kiemelt, fekete kiemelt, vörös kiemelt, In-Hot, Égbolt
Exit pupil: 8 mm Exit pupil:
8 mm
Field of view (°): 7.2° x 5.2° Field of view (°):
7.2° x 5.2°
Least magnification: 3.9 Least magnification:
3.9
Utmost magnification: 15.6 Utmost magnification:
15.6
Sizes: 170 x 51 x 65.5 mm Sizes:
170 x 51 x 65.5 mm
Lens: 45 mm gyújtótávolság F1.0 Lens:
45 mm gyújtótávolság F1.0
Old article number: PARDSA45 Old article number:
PARDSA45
Sensor: 384x288 pixel; 17 µm pixelméret Sensor:
384x288 pixel; 17 µm pixelméret
Color: black Color:
black
In the box: hőkamera céltávcső, vászon hordtáska, Picatinny szerelék, akkumulátor töltő, 1 db 18650 3.7 V cserélhető Li-Ion akku, használati útmutató, garancia füzet In the box:
hőkamera céltávcső, vászon hordtáska, Picatinny szerelék, akkumulátor töltő, 1 db 18650 3.7 V cserélhető Li-Ion akku, használati útmutató, garancia füzet
Rangemaster options: - Rangemaster options:
-
Weight (g): 420 Weight (g):
420
Operating time: akár 8 óra 2 db 18650-el Operating time:
akár 8 óra 2 db 18650-el
Világítópont opciók: 9 féle szálkereszt 4 színben Világítópont opciók:
9 féle szálkereszt 4 színben
Water resistance: IP67 Water resistance:
IP67
Product type: Thermal camera, Nightvision Product type:
Thermal camera, Nightvision
Riflescope magnification: 3.9 - 15.6x Riflescope magnification:
3.9 - 15.6x
