InfiRay X-Eye E6N thermal camera

InfiRay X-Eye E6N thermal camera
InfiRay X-Eye E6N thermal camera
InfiRay X-Eye E6N thermal camera
InfiRay X-Eye E6N thermal camera
InfiRay X-Eye E6N thermal camera

- 25 mm objective lens, manual focus

- 640x512 detector resolution, 12 µm pixel pitch

0.95 - 3.8 magnification (0.95x optical, 1 - 4x digital zoom)


- range of detection: 1378m (human target)

- field of view: 17,5°, NETD <= 40 mK

Please consult with legal authorities about the usability for hunting purposes!



Thermal sensor
640x512 12μm
Horizontal field of view (°)
17.5
Available for order
2 395.36 EUR
Not available for purchase!
We recommend the following product(s) as accessories
Details



The compact & elegant design and easy operational functions make the Eye series thermal imaging monocular the ideal vision enhancement tool in darkness.
















  • High Image Quality



The Eye series are is embedded with IRay independently developed high performance VOx detector which allows you to get high detailed thermal images, so as to make it simpler to search targets in darkness. Comprised of advanced software algorithms EYE is designed to increase imaging clarity and overall image detail which results in a sharper, more detailed field of view and enhanced object identifcation capabilities.
















  • Quick Start-Up Time



3s start-up time makes the Eye Series be quickly activated when the right time comes, which helps to save energy and extend the working hours.








  • Sufficient Operation Time



Low power elements used in Eye Series provide sufficient operation time. Up to 15 hours operational battery life guarantees you don't have to worry about the power supply.

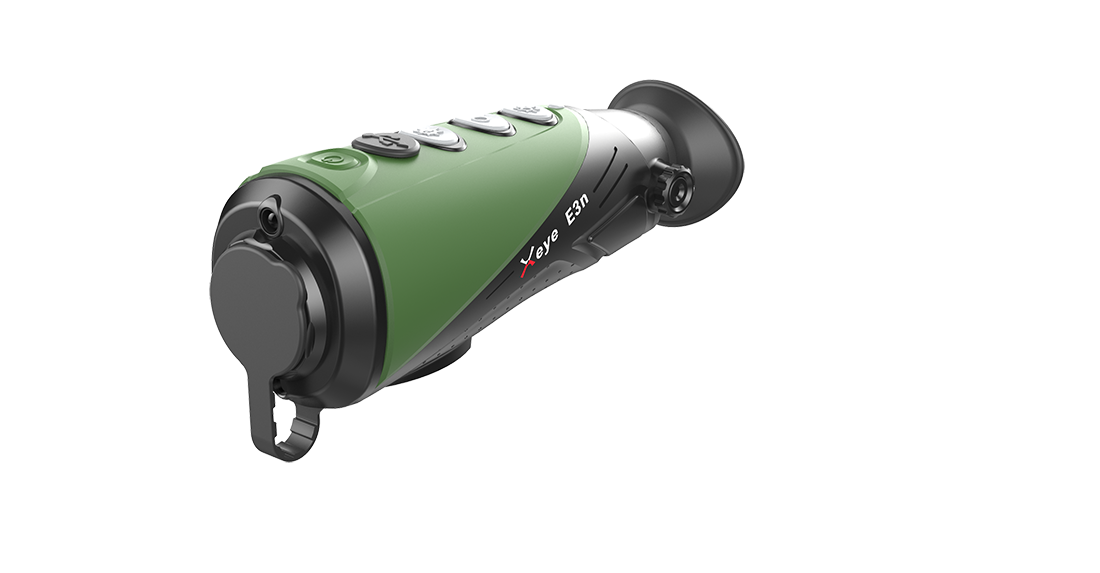

  • Pocket-Sized Thermal Vision Monocular







The InfiRay EYE series is a pocket-sized thermal vision monocular for exploring the outdoors—at night and in lowlight conditions. EYE reveals your surroundings and helps you see people, objects and animals over hundreds meters away. Simple to use, with still image and video recording, EYE is the perfect companion, whether in the back country or your own backyard.








  • High Frame Rate







The 50Hz frame rate guarantees you to capture every moment that you want to catch. Smooth, fluent and crystal clear views offers excellent observation for all your outdoor adventures.












  • 12um Thermal Imaging Sensor



High performance 12μm & 17μm pixel pitch detectors are embedded in the compact body.
















  • Friendly Electrical Interface



The EYE is designed with ease-of-operation in mind. The monocular can be connected to specified APP via USB cable which allows user to watch the real-time video, take picture and record video on mobile devices based on Android and iOS such as smartphone or tablet. Internal menu items and options are also displayed on a contrasting gradient substrate so you can keep an eye on settings without losing sight of your objective.








  • Standby Function



When it is necessary to temporarily stop observation the user can apply standby function. It provides the necessary level of camouflage (no light from the eyepiece of the device) between observation sessions as well as the fast restart of observation (when display is turned off, all other systems are working; for normal operation it is enough just to power on the display again).








  • Compact Size And Lightweight



Compact size and lightweight becomes important in outdoor using, which ensure the highest level of comfort and usability.












  • 5 Color Palettes



The Eye series provides more than 5 color palettes for true colorized temperature mapping, including “white hot” “black hot” “red hot” “color” and “hot target highlight”. Switching between different color palettes is fast and easy.












  • Long Detection Range







Powerful objective lens in combination with professional grade thermal imaging sensor with NETD 40 mK provides exceptional detection capabilities. An average human-size target can be detected at a 1300m distance in complete darkness.



Info
Article number
IRAE6n
Base magnification (x)
0.95
Tripod thread
04.jan
Digital zoom
2x, 4x
Diopter compensation
van
Other properties

forró pont kereső

Energy supply
beépített Li-ion, újratölthető
Detection distance '>
Észlelés:

emberalak: 1298 m
Type
Egyszemes kereső
Manufacturer
InfiRay
Gyártó által vállalt garancia
3 év
Hőkamera felépítés
Monocular
Image repetition frequency
50 Hz
Display
720 x 540
Screen color modes
fehér kiemelés, fekete, vörös, színes (túlszaturált), madarász
Field of view
17.5°x 14°
Field of view
17.5°x 14°
Minimum focus range (m)
02.jan
Least magnification
0.95
Utmost magnification
3.8
Sizes
185 x 62 x 62 mm
Working / storage temperature
-20℃- +50℃ / -30℃- +60℃
Nagyítás
0,95x
Lens
25 mm-es fókusztávolság, manuális fókusz
Old article number
IRAE6n
Spectral range
8-14μm
Sensor
640x512 nagy teljesítményű VOX detektor, 12 µm pixelméretű érzékelő, NETD <= 40 mK
Color
black
In the box
hőkamera, objektív védő
Weight (g)
400
Shock resistance
1m-ről történő leejtésig
Operating time
akár 12 óra
Water resistance
IP67
Article No.
IRAE6n
