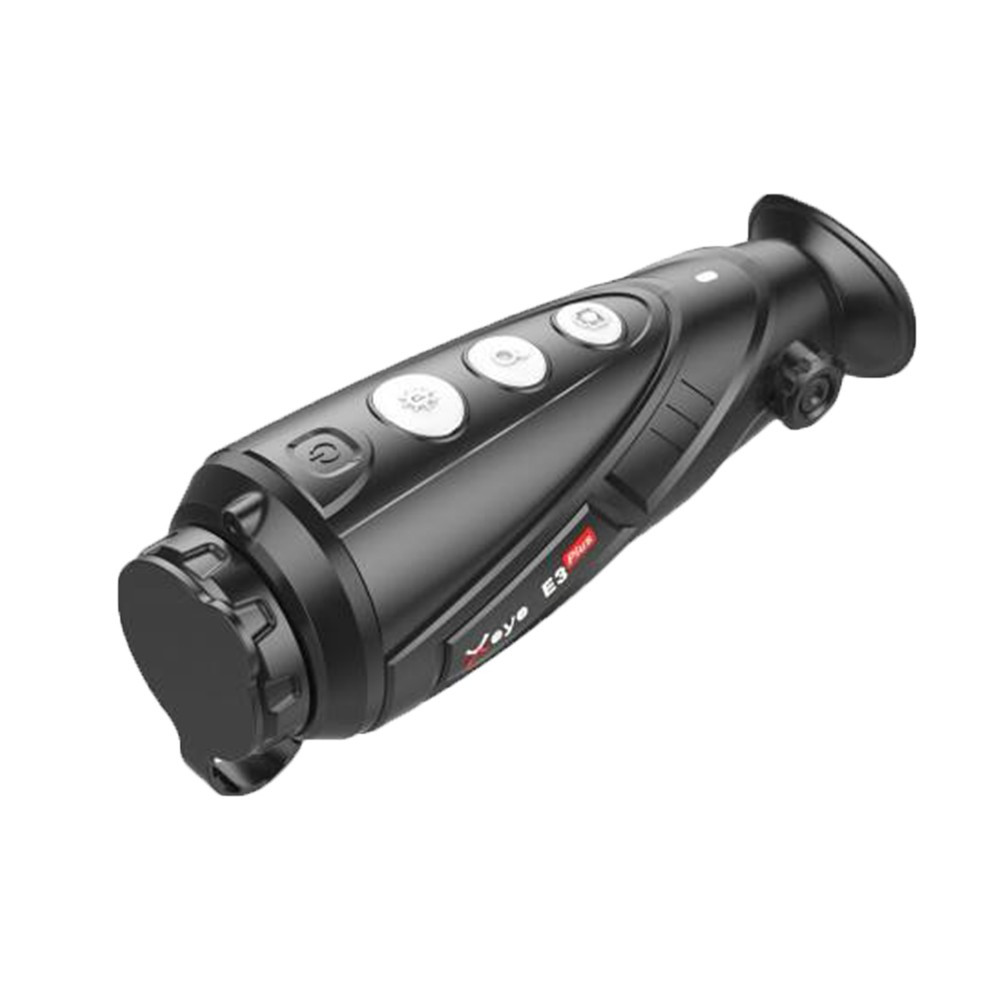

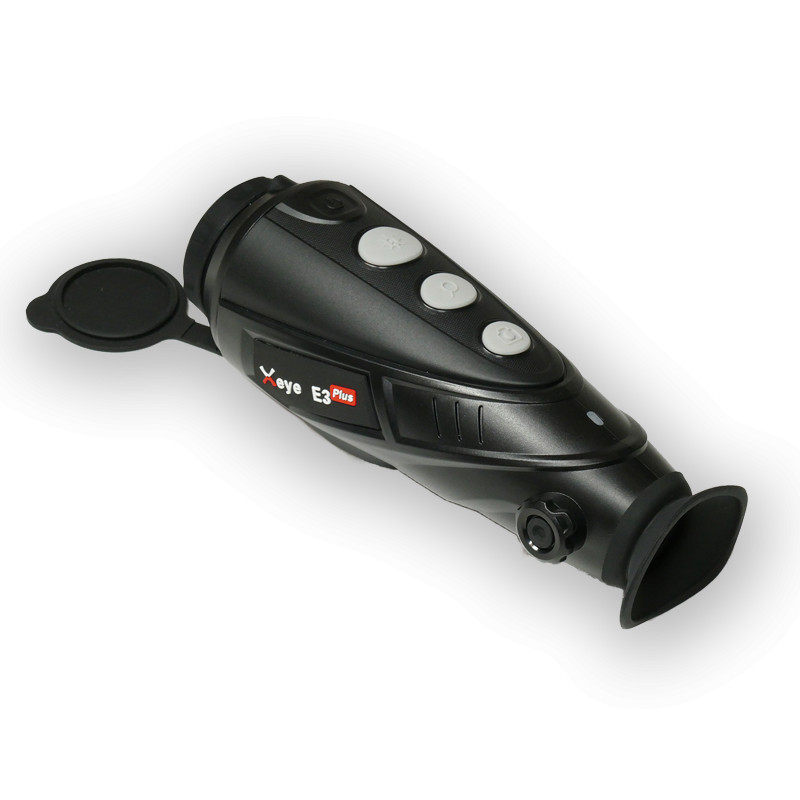

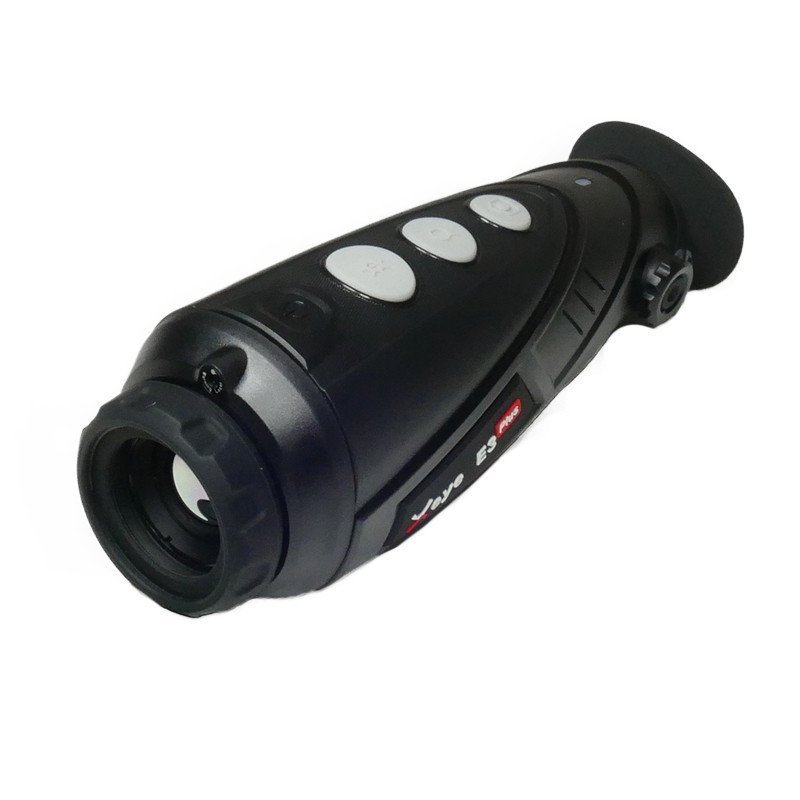

InfiRay X-Eye E3 Plus V2.0

InfiRay X-Eye E3 Plus V2.0
InfiRay X-Eye E3 Plus V2.0
InfiRay X-Eye E3 Plus V2.0

25 mm focal range lens, manual focus
- 384x288 pixel detector, 12 µm pixel size
- 2.5 - 10x magnification (2.5x optical, 1 - 4x digital)
- Detection range: 1298 m (human body)
- 16 GB internal memory, USB cable
10.5° FOV, NETD <= 40 mK

Thermal sensor
384x288 12µm
Thermal sensor NETD
40 mK
Magnification interval (x)
2.5 – 10
Horizontal field of view (°)
10.5
Horizontal filed of view
10.5
User's Guide (HUN)
Thermal sensor
384x288 12µm
Out of stock
1 289.10 EUR
Not available for purchase!
We recommend the following product(s) as accessories
Details

Thermal Imaging Scope Eye Ⅱ Series V2.0
12μm detector, lower power consumption and multifunctional operations enhance and record the excellent moment of your outdoor activities. Lighter and longer.


Meet Eye Ⅱ Series V2.0

With 12μm detector, lower power consumption and multifunctional operations enhance and record the excellent moment of your outdoor activities. Lighter and longer.



Pocket-Sized Thermal Vision Monocular

The InfiRay EYE Ⅱ series is a pocket-sized thermal vision monocular for exploring the outdoors—at night and in lowlight conditions. EYE Ⅱ reveals your surroundings and helps you see people, objects and animals over one thousand meters away. Simple to use, with still image and video recording, EYE Ⅱ is the perfect companion, whether in the back country or your own backyard.



High Image Quality

The EyeⅡ series are embedded with IRay independently developed high performance Vox detector which allows you to get high detailed thermal images, it will be much simpler to search targets in darkness. There are two kinds of detector resolutions for options: 384*288 & 640*512. The EyeⅡ series has excellent performance in critical temperature range.



12μm Ceramic Detector

The V2.0 series is equiped with new ceramic encapsulated detector, which are lighter, lower power consumption and last longer.



HD Micro Display

1280×960 high resolution display that offers crisp image and vivid colors.



Long Detection Range

Depending on model, the V2.0 series is capable of detecting an average human-size target, dressed in outerwear, at a range up to 2600m in complete darkness.



Standby Function

When it is necessary to temporarily stop observation the user can apply standby function. It provides the necessary level of camouflage (no light from the eyepiece of the device) between observation sessions as well as the fast restart of observation (when display is turned off, all other systems are working; for normal operation it is enough just to power on the display again).



High Image Frequency

And the 50Hz refresh rate guarantees you to capture every moment that you are interested.


PIP Functions

Picture-in-Picture improves accuracy by providing a 2x magnified image of the reticle area at the top of the display. It helps to zoom in on a target while retaining the rest of the field of view visible.



5 Color Palettes

The Eye II series provides more than 5 color palettes for true colorized temperature mapping, including “white hot” “black hot” “red hot” “color” and “hot target highlight”. Switching between different color palettes is fast and easy.



Stadiametric Rangefinder

Based on estimated heights of targets user can get the rough distance from the target with the build-in stadiametric rangefinder fast and easy.

Hot Target Tracking

Info
Article number
IRAE3PlusV2
Data storage
16 GB built-in memory
Base magnification (x)
2,5
Tripod thread
1/4 coll
Plugs
DC5V/2A(Mini USB)
Digital zoom
2x / 4x
Diopter compensation
adjustable
Other properties

NETD<= 40mk@30℃;
Live video WiFi-n keresztül (akku kímélő üzemmód kikapcsolása esetén aktív);
lézer pointer;
fénykép és videó rögzítés;
PIP funkció
távolságbecslő funkció

Energy supply
built-in Li-ion battery, rechargable
Detection distance '>
Perception (m) human figure :1298
Type
Monocular finder
Video recording
yes
Manufacturer
InfiRay
Warranty
3-year general warranty for the device, 10 years for the sensor, 2 years for the battery
Type
Monocular
Image repetition frequency
50 Hz
Display
1280x960 LCOS
Screen color modes
Hot Black, Hot White, Hot Red, Iron, Color (Oversaturated)
Field of view (°)
10.5° x 7.9°
Minimum focus range (m)
1
Least magnification
2.5
Utmost magnification
10
Sizes
181 x 65 x 64 mm
Working / storage temperature
-20℃- +50℃ / -30℃- +60℃
Lens
25 mm focal length, manual focus
Old article number
IRAE3PlusV2
Spectral range
8-14μm
Sensor
VOX uncooled FPA detector 384x288, 12 µm, NETD <= 40 mK
Color
black
In the box
hőkamera, puhafalú tok, tápkábel, USB kábel, kimenő videó analóg kábel, objektív védő kupak, csuklószíj, használati útmutató
Weight (g)
450
Shock resistance
fall resistance 1 m
Operating time
up to 7 hours
Water resistance
IP66
Product type
Thermal camera, Nightvision
EAN code
6973202300121
Type
Monocular
Article No.
IRAE3PlusV2
