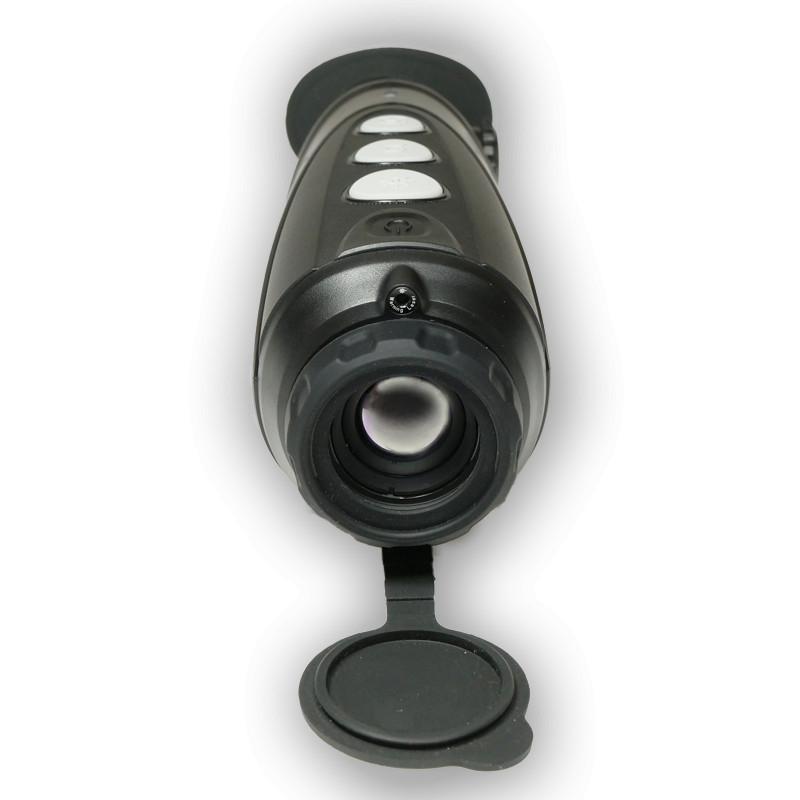

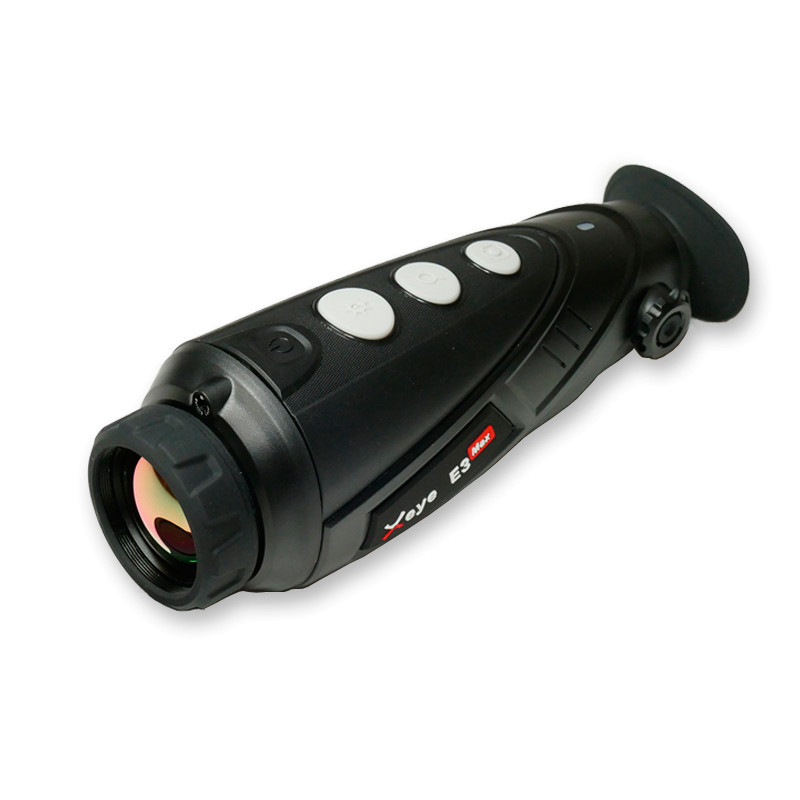

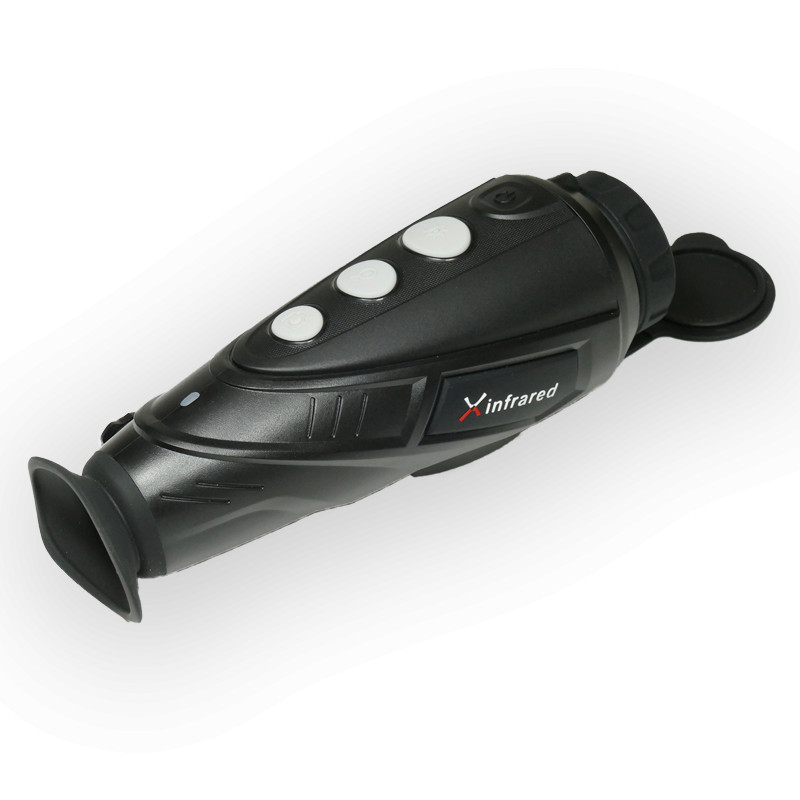

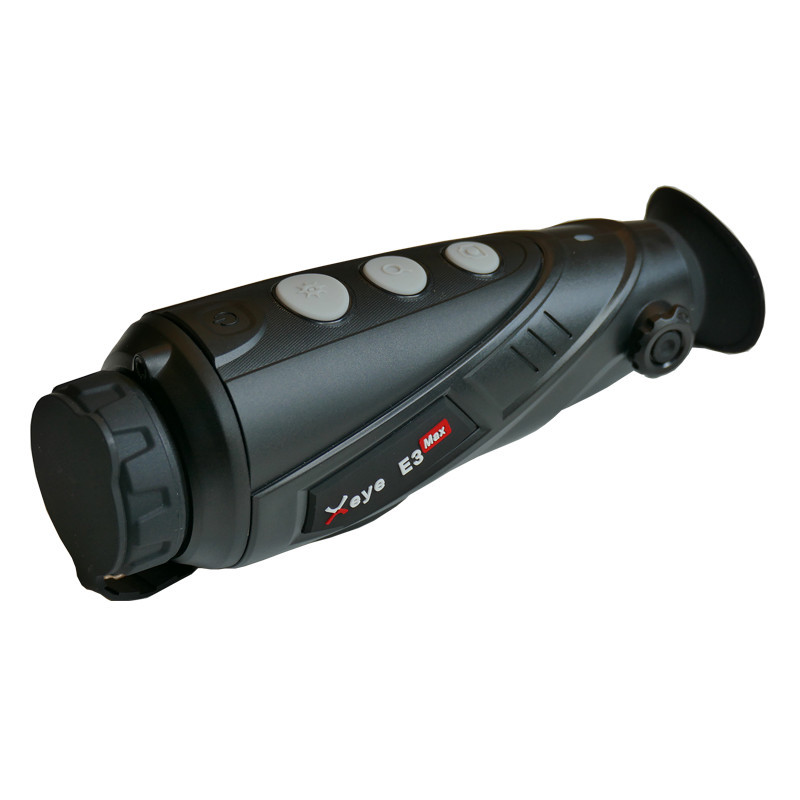

InfiRay X-Eye E3 Max V2.0

Article No.:
IRAE3MaxV2

35 mm focal range lens, manual focus
- 384x288 pixel detector, 12 µm pixel size
- 3.5 - 14x magnification (3.5x optical, 1 - 4x digital)
- Detection range: 1818 m (human body)
- 16 GB internal memory, USB cable
7.5° FOV, NETD <= 40 mK

Thermal sensor, The smaller the value the more detail the picture has.: 384x288 12µm Thermal sensor:
384x288 12µm
Thermal sensor NETD:
40 mK
Magnification interval (x):
3.5 – 14
Horizontal field of view (°), One of the most important value when choosing the proper thermal camera. Bigger values are better for short distance. Less values are better for great distances.: 7.5 Horizontal field of view (°):
7.5
User's Guide (HUN), A linkre kattintva letölthető a magyar nyelvű használati útmutató.:

Kattintson

User's Guide (HUN):
Thermal sensor:
384x288 12µm
1 937.58 EUR
Details

Meet Eye Ⅱ Series V2.0

With 12μm detector, lower power consumption and multifunctional operations enhance and record the excellent moment of your outdoor activities. Lighter and longer.



Pocket-Sized Thermal Vision Monocular

The InfiRay EYE Ⅱ series is a pocket-sized thermal vision monocular for exploring the outdoors—at night and in lowlight conditions. EYE Ⅱ reveals your surroundings and helps you see people, objects and animals over one thousand meters away. Simple to use, with still image and video recording, EYE Ⅱ is the perfect companion, whether in the back country or your own backyard.



High Image Quality

The EyeⅡ series are embedded with IRay independently developed high performance Vox detector which allows you to get high detailed thermal images, it will be much simpler to search targets in darkness.  There are two kinds of detector resolutions for options: 384*288 & 640*512. The EyeⅡ series has excellent performance in critical temperature range.



12μm Ceramic Detector

The V2.0 series is equiped with new ceramic encapsulated detector, which are lighter, lower power consumption and last longer.




HD Micro Display

 1280×960 high resolution display that offers crisp image and vivid colors.



Long Detection Range

Depending on model, the V2.0 series is capable of detecting an average human-size target, dressed in outerwear, at a range up to 2600m in complete darkness.



Standby Function

When it is necessary to temporarily stop observation the user can apply standby function. It provides the necessary level of camouflage (no light from the eyepiece of the device) between observation sessions as well as the fast restart of observation (when display is turned off, all other systems are working; for normal operation it is enough just to power on the display again).



High Image Frequency

And the 50Hz refresh rate guarantees you to capture every moment that you are interested.



PIP Functions

Picture-in-Picture improves accuracy by providing a 2x magnified image of the reticle area at the top of the display. It helps to zoom in on a target while retaining the rest of the field of view visible.



5 Color Palettes

The Eye II series provides more than 5 color palettes for true colorized temperature mapping, including “white hot” “black hot” “red hot” “color” and “hot target highlight”. Switching between different color palettes is fast and easy.




Stadiametric Rangefinder

Based on estimated heights of targets user can get the rough distance from the target with the build-in stadiametric rangefinder fast and easy.

Hot Target Tracking

Track the hottest spot in the scene automatically and discover the target quickly.

Built-in Video Recorder and WiFi Connection

The monocular has 16 GB build-in memory to store the captured still images and video recording and WiFi module which allows 4 connections simultaneously.

Info
Article number: IRAE3MaxV2 Article number:
IRAE3MaxV2
Data storage: 16 GB beépített memória Data storage:
16 GB beépített memória
Base magnification (x): 3,5 Base magnification (x):
3,5
Tripod thread: 1/4 coll Tripod thread:
1/4 coll
Plugs: DC5V/2A(Mini USB) Plugs:
DC5V/2A(Mini USB)
Digital zoom: 2x / 4x Digital zoom:
2x / 4x
Diopter compensation: van Diopter compensation:
van
Other properties: NETD: <=40mk@30℃;
Live video WiFi-n keresztül (* A WiFi funkció csak az akkumulátor kímélő mód kikapcsolása után aktiválódik!);
lézer pointer tartozék;
PIP funkció
távolságbecslő funkció

Other properties:
NETD: <=40mk@30℃;
Live video WiFi-n keresztül (* A WiFi funkció csak az akkumulátor kímélő mód kikapcsolása után aktiválódik!);
lézer pointer tartozék;
PIP funkció
távolságbecslő funkció

Energy supply: beépített Li-ion, újratölthető Energy supply:
beépített Li-ion, újratölthető
Detection distance (Information data, that shows the distance an object can be seen from as one pixel. It's just one pixel without shape and contours. The distance, from that the object, game or human body can be identificate with it's shape, is usually much shorter.): Észlelés (m) emberalak 1818 Detection distance:
Észlelés (m) emberalak 1818
Type: Egyszemes kereső Type:
Egyszemes kereső
Video recording: van Video recording:
van
Manufacturer: InfiRay Manufacturer:
InfiRay
Warranty: 3-year general warranty for the device, 10 years for the sensor, 2 years for the battery Warranty:
3-year general warranty for the device, 10 years for the sensor, 2 years for the battery
Type: Monocular Type:
Monocular
Image repetition frequency: 50 Hz Image repetition frequency:
50 Hz
Display: 1280x960 Display:
1280x960
Screen color modes: Forró fekete, Forró fehér, Forró vörös, Vas, Színes (túl szaturált) Screen color modes:
Forró fekete, Forró fehér, Forró vörös, Vas, Színes (túl szaturált)
Field of view (°): 7.5° x 5.7° Field of view (°):
7.5° x 5.7°
Minimum focus range (m): 1 Minimum focus range (m):
1
Least magnification: 3.5 Least magnification:
3.5
Utmost magnification: 14 Utmost magnification:
14
Sizes: 186 x 65 x 64 mm Sizes:
186 x 65 x 64 mm
Working / storage temperature: -20℃- +50℃ / -30℃- +60℃ Working / storage temperature:
-20℃- +50℃ / -30℃- +60℃
Lens: 35 mm-es gyújtótávolság, manuális fókusz Lens:
35 mm-es gyújtótávolság, manuális fókusz
Old article number: IRAE3MaxV2 Old article number:
IRAE3MaxV2
Spectral range: 8-14μm Spectral range:
8-14μm
Sensor: VOX hűtetlen FPA detektor 384x288, pixel méret 12 μm, NETD <= 40 mK Sensor:
VOX hűtetlen FPA detektor 384x288, pixel méret 12 μm, NETD <= 40 mK
Color: black Color:
black
In the box: kimenő videó analóg kábel, töltő- és adatkábel, puhafalú tok In the box:
kimenő videó analóg kábel, töltő- és adatkábel, puhafalú tok
Weight (g): 450 Weight (g):
450
Shock resistance: 1m-ről történő leejtésig Shock resistance:
1m-ről történő leejtésig
Operating time: akár 7 óra Operating time:
akár 7 óra
Water resistance: IP66 Water resistance:
IP66
Product type: Thermal camera, Nightvision Product type:
Thermal camera, Nightvision
EAN code: 6973202300510 EAN code:
6973202300510
Type: Monocular Type:
Monocular
