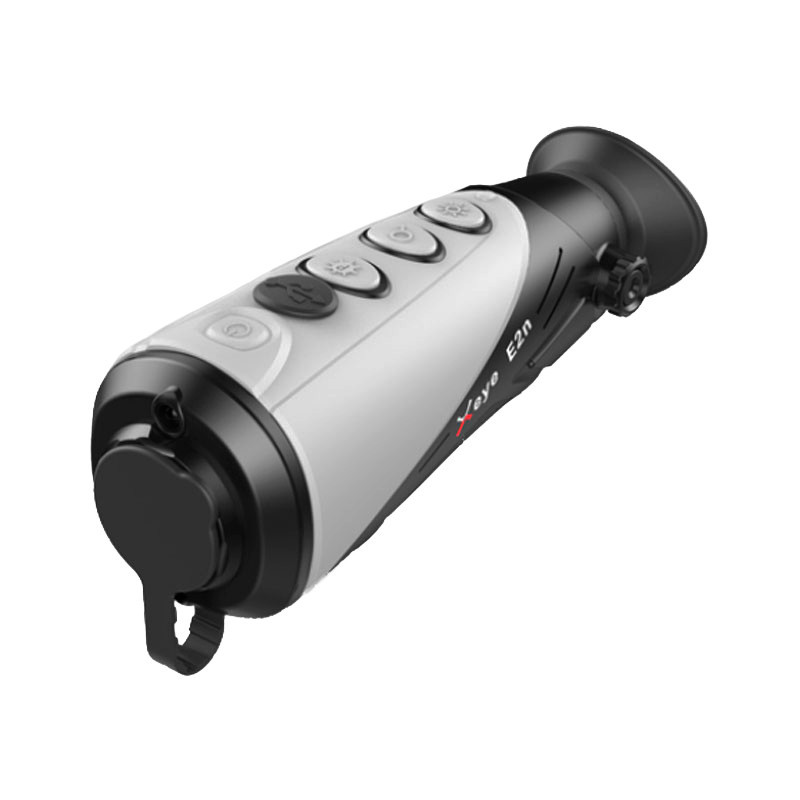

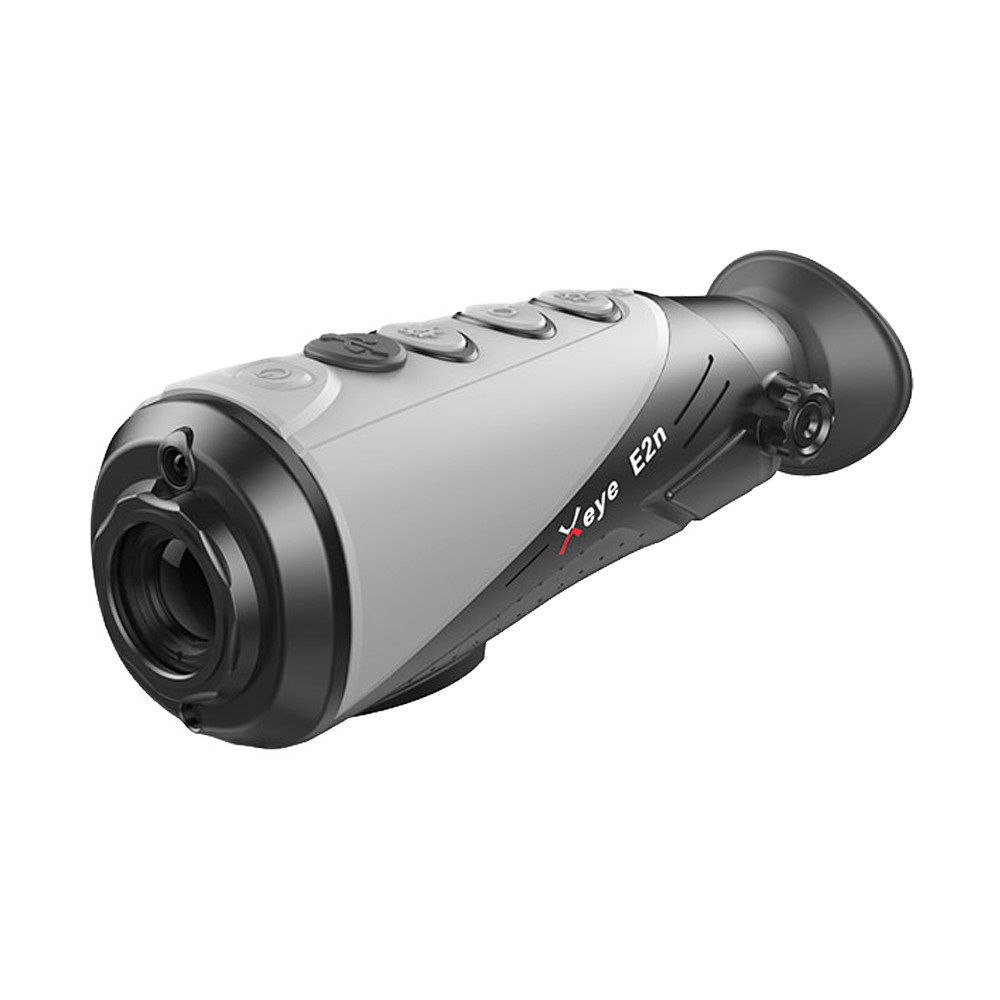

InfiRay X-Eye E2n V2 thermal camera

Article No.:
IRAE2NV2
- 13 mm objective lens, fix focus

- 256x192 detector resolution, 12 µm pixel pitch

-  1.24 - 2.48x magnification (1.24x optical, 1-2x digital)

- range of detection: 675m (human target), - (car), - (deer)

- field of view: 13,5°, NETD <= 40 mK

- Please consult with legal authorities about the usability for hunting purposes!
Thermal sensor, The smaller the value the more detail the picture has.: 256x192 12μm Thermal sensor:
256x192 12μm
Thermal sensor NETD:
40 mK
Magnification interval (x):
1.24 – 2.48
Horizontal field of view (°), One of the most important value when choosing the proper thermal camera. Bigger values are better for short distance. Less values are better for great distances.: 13.5 Horizontal field of view (°):
13.5
Thermal sensor:
256x192 12μm
InfiRay X-Eye E2n V2 thermal camera
InfiRay X-Eye E2n V2 thermal camera
1
2
626.23 EUR
Details
Coming soon...
Info
Article number: IRAE2NV2 Article number:
IRAE2NV2
Base magnification (x): 1,24 Base magnification (x):
1,24
Detection distance (Information data, that shows the distance an object can be seen from as one pixel. It's just one pixel without shape and contours. The distance, from that the object, game or human body can be identificate with it's shape, is usually much shorter.): Észlelés (m) emberalak: 675 Detection distance:
Észlelés (m) emberalak: 675
Type: Egyszemes kereső Type:
Egyszemes kereső
Manufacturer: InfiRay Manufacturer:
InfiRay
Warranty: 3-year general warranty for the device, 10 years for the sensor, 2 years for the battery Warranty:
3-year general warranty for the device, 10 years for the sensor, 2 years for the battery
Type: Monocular Type:
Monocular
Image repetition frequency: 25 Hz Image repetition frequency:
25 Hz
Display: 720 x 540 Display:
720 x 540
Field of view (°): 13.5°×10.1° Field of view (°):
13.5°×10.1°
Minimum focus range (m): 1 Minimum focus range (m):
1
Least magnification: 1.24 Least magnification:
1.24
Utmost magnification: 2.48 Utmost magnification:
2.48
Sizes: 160×62×62 mm Sizes:
160×62×62 mm
Lens: 13 mm gyújtótávolság Lens:
13 mm gyújtótávolság
Old article number: IRAE2NV2 Old article number:
IRAE2NV2
Sensor: 256x192 pixel, 12 μm pixelméret, NETD <= 40 mK Sensor:
256x192 pixel, 12 μm pixelméret, NETD <= 40 mK
Color: grey Color:
grey
In the box: hőkamera, puhafalú tok In the box:
hőkamera, puhafalú tok
Weight (g): 320 Weight (g):
320
Product type: Thermal camera, Nightvision Product type:
Thermal camera, Nightvision
EAN code: 6973202300305 EAN code:
6973202300305
Type: Monocular Type:
Monocular
