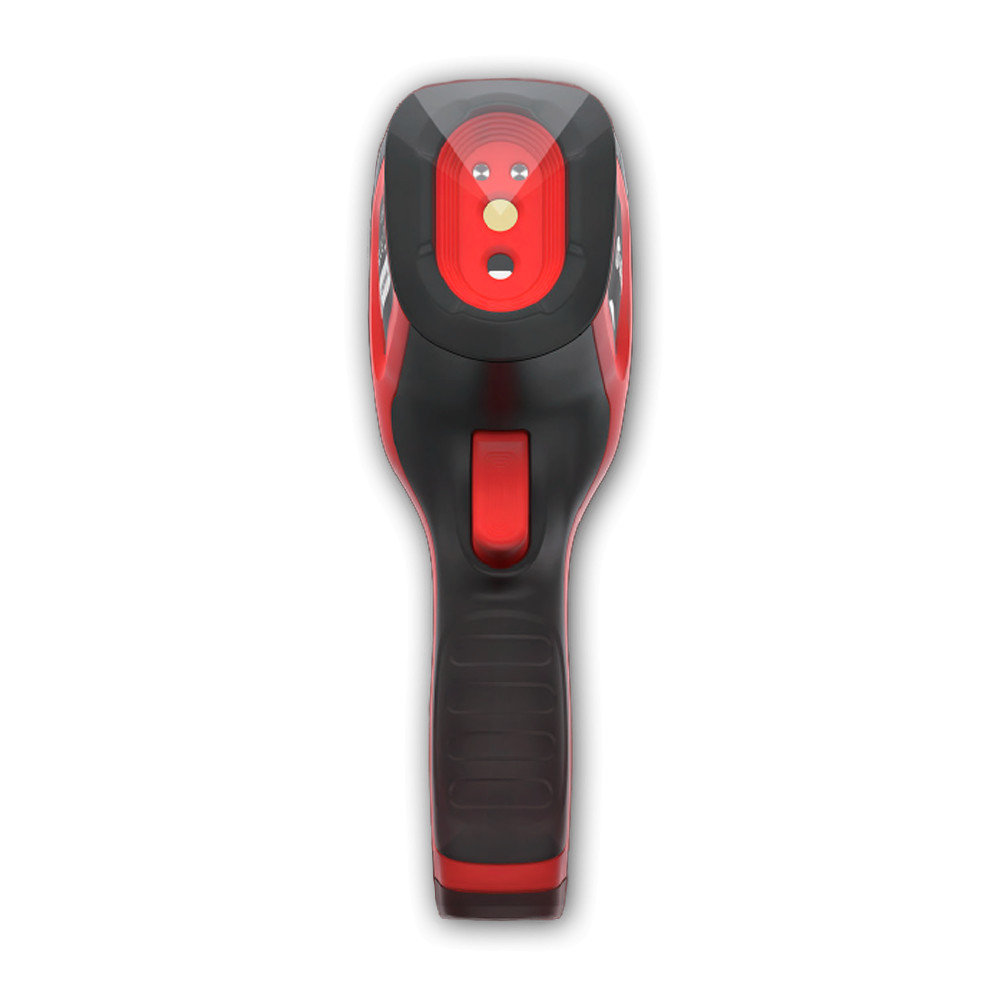

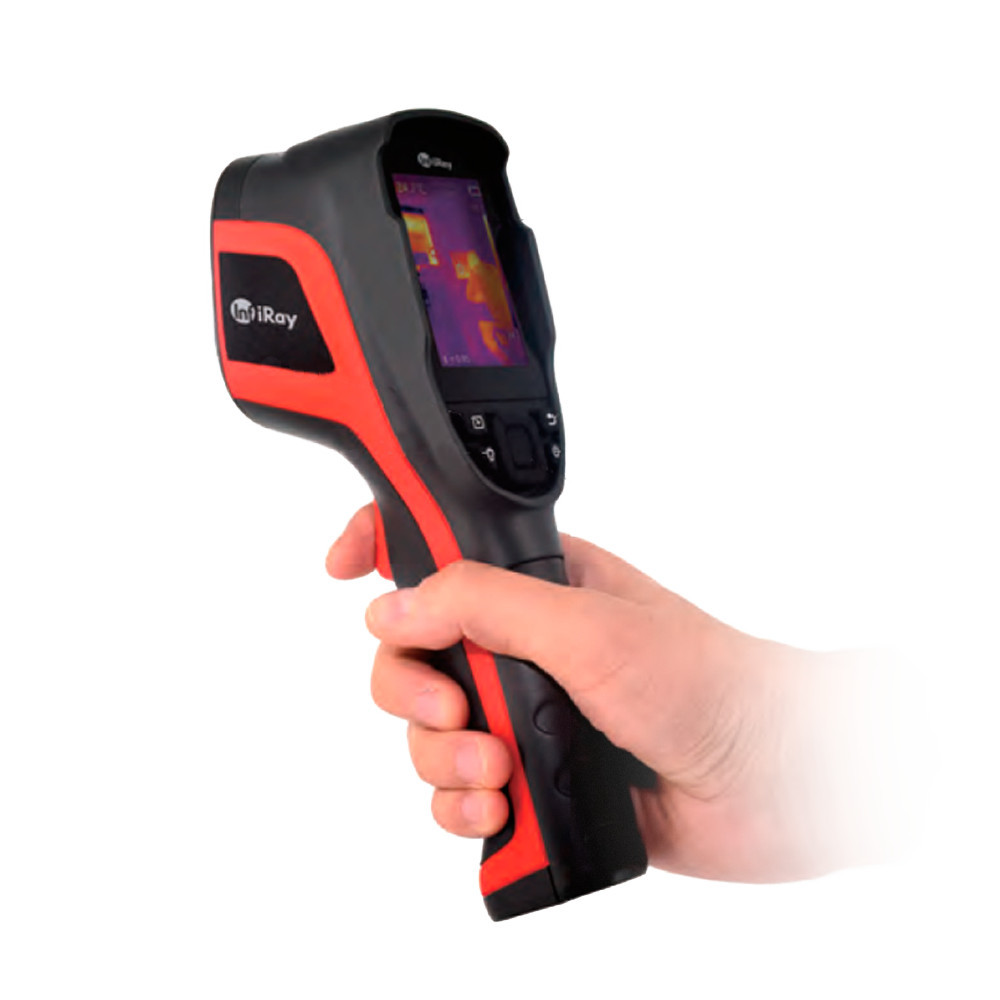

InfiRay C100 industrial thermal camera

Article No.:
IRAC100
Thermal sensor, The smaller the value the more detail the picture has.: 160x120 17μm Thermal sensor:
160x120 17μm
User's Guide (HUN), A linkre kattintva letölthető a magyar nyelvű használati útmutató.:

Hungarian version

 User's Guide (HUN):

Hungarian version

Thermal sensor:
160x120 17μm
InfiRay C100 industrial thermal camera
InfiRay C100 industrial thermal camera
1
2
450.82 EUR
Details
Coming soon...
Info
Article number: IRAC100 Article number:
IRAC100
Data storage: micro SD up to 32 GB (not included) Data storage:
micro SD up to 32 GB (not included)
Tripod thread: 1/4 coll Tripod thread:
1/4 coll
Plugs: USB-C Plugs:
USB-C
Other properties:

Picture modes: thermal imaging, fusion, PIP,visible imaging

In the event of an alarm recording manually or automatically with temperature data in the event of an alarm

Hardware requirement:

CPU: minimum i3
Memory: minimum 4 GB
Operation system: Windows 10 with Office 2010
Display settings: text resize applications and other items at least 100%

Other properties:

Picture modes: thermal imaging, fusion, PIP,visible imaging

In the event of an alarm recording manually or automatically with temperature data in the event of an alarm

Hardware requirement:

CPU: minimum i3
Memory: minimum 4 GB
Operation system: Windows 10 with Office 2010
Display settings: text resize applications and other items at least 100%

Energy supply: built-in li-Ion Energy supply:
built-in li-Ion
Video recording: MPEG4 Video recording:
MPEG4
Manufacturer: InfiRay Manufacturer:
InfiRay
Warranty: 3 years manufacturer's warranty Warranty:
3 years manufacturer's warranty
IFOV: 3.8 mrad IFOV:
3.8 mrad
Display: 2.8'' color TFT LCD 320x240 pixel Display:
2.8'' color TFT LCD 320x240 pixel
Screen color modes: 7 modes Screen color modes:
7 modes
Measurement properties:

IFOV: 3.8 mrad
Measurement types: central point / hot point / cold point
Measuring range: -20 to +550°C
Accuracy: ±0.5°C
IR temperature scale: 0.1°C (0.2°F)

Measurement properties:

IFOV: 3.8 mrad
Measurement types: central point / hot point / cold point
Measuring range: -20 to +550°C
Accuracy: ±0.5°C
IR temperature scale: 0.1°C (0.2°F)

Working / storage temperature: -10°C to +50°C / -20°C to +60°C Working / storage temperature:
-10°C to +50°C / -20°C to +60°C
Old article number: IRAC100 Old article number:
IRAC100
Spectral range: 8 - 14um Spectral range:
8 - 14um
Sensor: 160x120 pixel, uncooled FPA Sensor:
160x120 pixel, uncooled FPA
Color: red Color:
red
In the box: thermal camera, USB-C charging cable, 16 GB micro SD card, analiser software for PC In the box:
thermal camera, USB-C charging cable, 16 GB micro SD card, analiser software for PC
Supported photo resolutions: 160x120 Supported photo resolutions:
160x120
Weight (g): 520 Weight (g):
520
Shock resistance: fall resistance 2 m Shock resistance:
fall resistance 2 m
Operating time: up to 11 hours Operating time:
up to 11 hours
Water resistance: IP54 Water resistance:
IP54
Product type: Thermal camera, Nightvision Product type:
Thermal camera, Nightvision
