InfiRay Affo AL25 thermal monocular

Article No.:
IRAAL25LHSET

Please consult with legal authorities about the usability for hunting purposes!

Thermal sensor, The smaller the value the more detail the picture has.: 384x288 12µm Thermal sensor:
384x288 12µm
Thermal sensor NETD:
40 mK
Horizontal field of view (°), One of the most important value when choosing the proper thermal camera. Bigger values are better for short distance. Less values are better for great distances.: 10.5 Horizontal field of view (°):
10.5
User's Guide (HUN), A linkre kattintva letölthető a magyar nyelvű használati útmutató.:

Hungarian version

 User's Guide (HUN):

Hungarian version

Thermal sensor:
384x288 12µm
InfiRay Affo AL25 thermal monocular
InfiRay Affo AL25 thermal monocular
InfiRay Affo AL25 thermal monocular
InfiRay Affo AL25 thermal monocular
InfiRay Affo AL25 thermal monocular
1
5
1 561.82 EUR
Details
Coming soon...
Info
Data storage: 32 GB of internal storage Data storage:
32 GB of internal storage
Plugs: USB-C, HDMI Plugs:
USB-C, HDMI
Diopter compensation: -3 - +1 Diopter compensation:
-3 - +1
Other properties:

WI-FI, photo recording

 Other properties:

WI-FI, photo recording

Detection distance (Information data, that shows the distance an object can be seen from as one pixel. It's just one pixel without shape and contours. The distance, from that the object, game or human body can be identificate with it's shape, is usually much shorter.): Detection (m) human body: 1298 Detection distance:
Detection (m) human body: 1298
Type: Seeker monocular Type:
Seeker monocular
Manufacturer: InfiRay Manufacturer:
InfiRay
Warranty: 3-year general warranty for the device, 10 years for the sensor, 2 years for the battery Warranty:
3-year general warranty for the device, 10 years for the sensor, 2 years for the battery
Image repetition frequency: 50Hz Image repetition frequency:
50Hz
Display: 640x400 OLED Display:
640x400 OLED
Field of view (°): 10.5°×7.9° Field of view (°):
10.5°×7.9°
Sizes: 174×60×60 mm Sizes:
174×60×60 mm
Working / storage temperature: -10-+50℃ / - Working / storage temperature:
-10-+50℃ / -
Lens: 25 mm focal length, manual focus Lens:
25 mm focal length, manual focus
Sensor: 384x288 pixel, 12 μm pixel size, NETD <= 40 mK Sensor:
384x288 pixel, 12 μm pixel size, NETD <= 40 mK
Color: grey Color:
grey

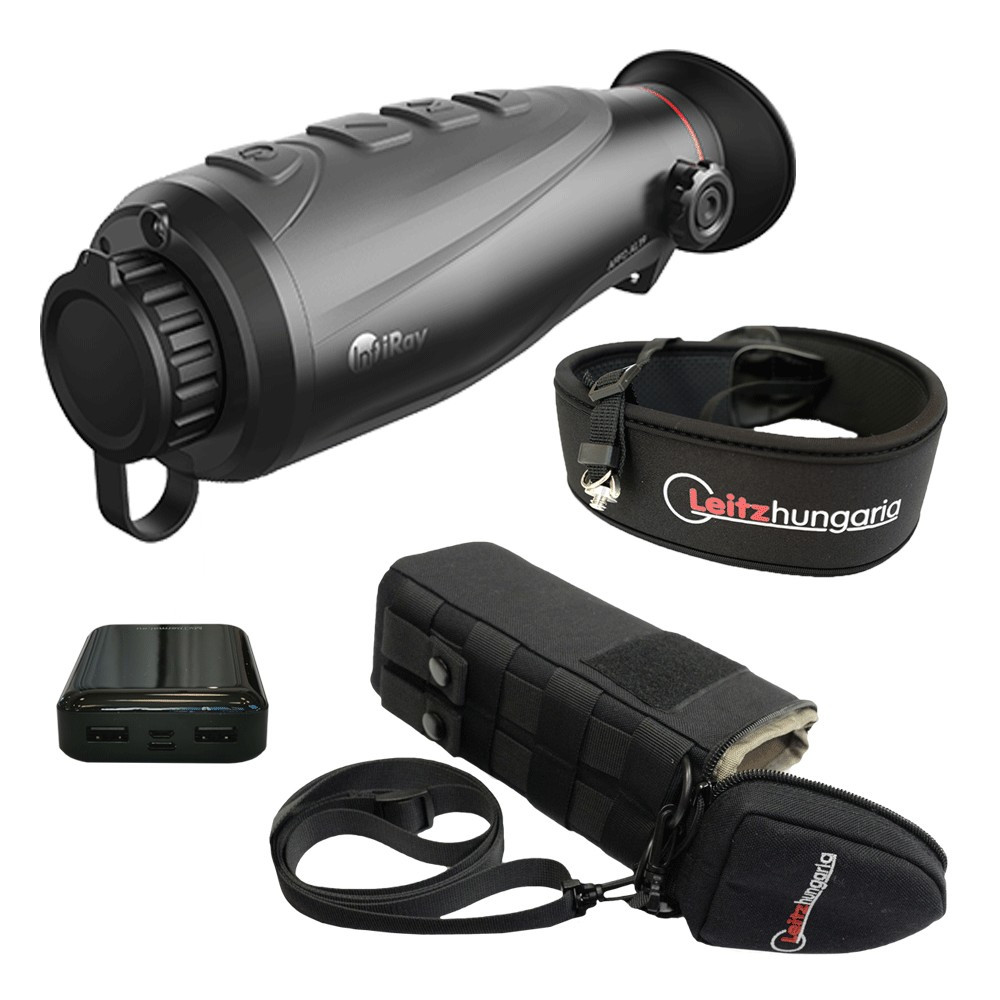

In the box:

thermal monocular, zipped cordura case with soft inside and shoulder strap, wide, comfortable neck strap for the monocular, 10 000 mAh powerbank with USB cable

 In the box:

thermal monocular, zipped cordura case with soft inside and shoulder strap, wide, comfortable neck strap for the monocular, 10 000 mAh powerbank with USB cable

Weight (g): 350 Weight (g):
350
Operating time:

up to 7,5 hours

 Operating time:

up to 7,5 hours

Water resistance: IP67 Water resistance:
IP67
Product type: Thermal camera, Nightvision Product type:
Thermal camera, Nightvision
