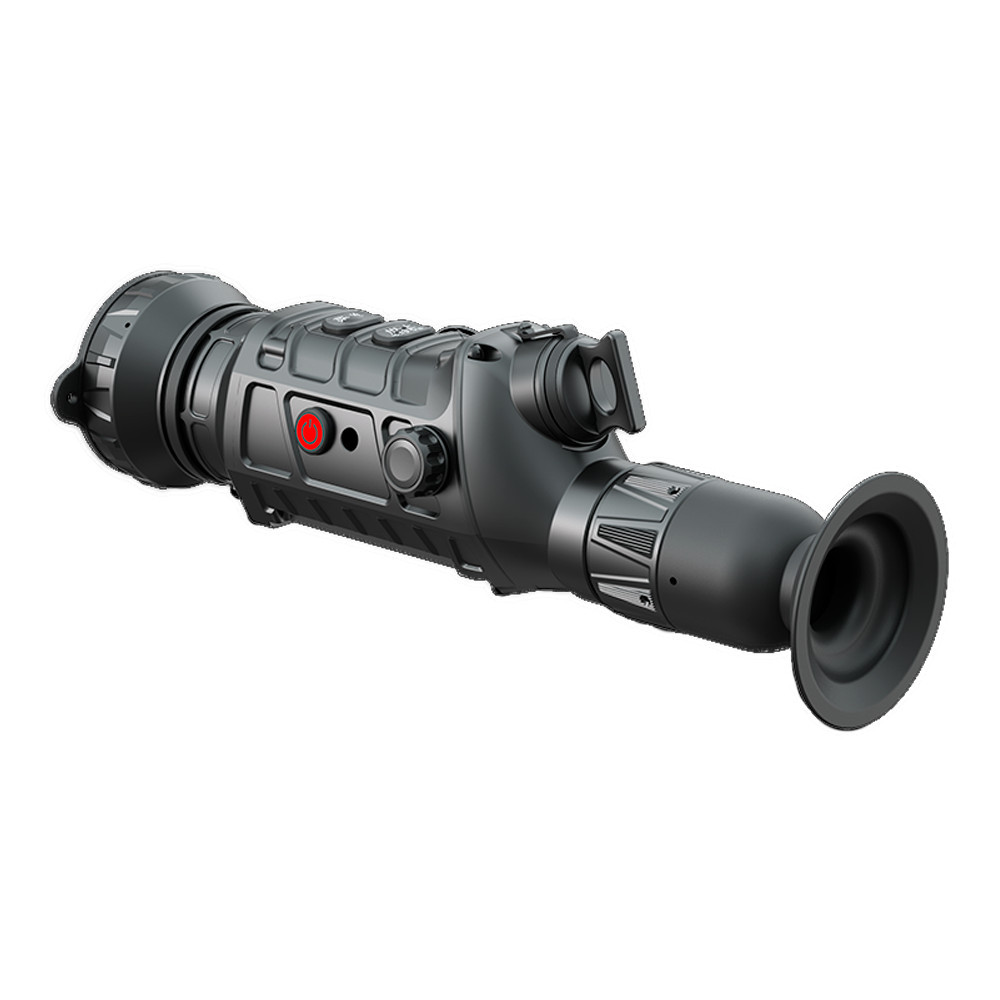

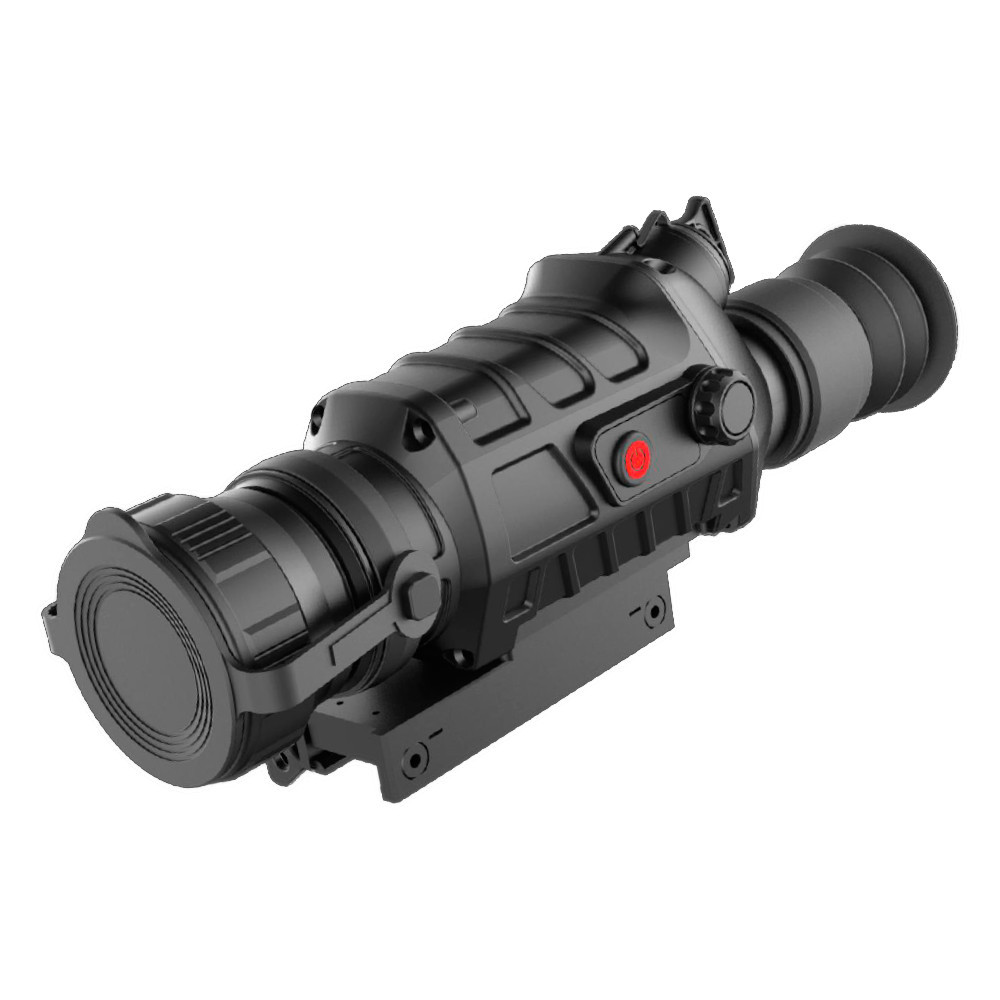

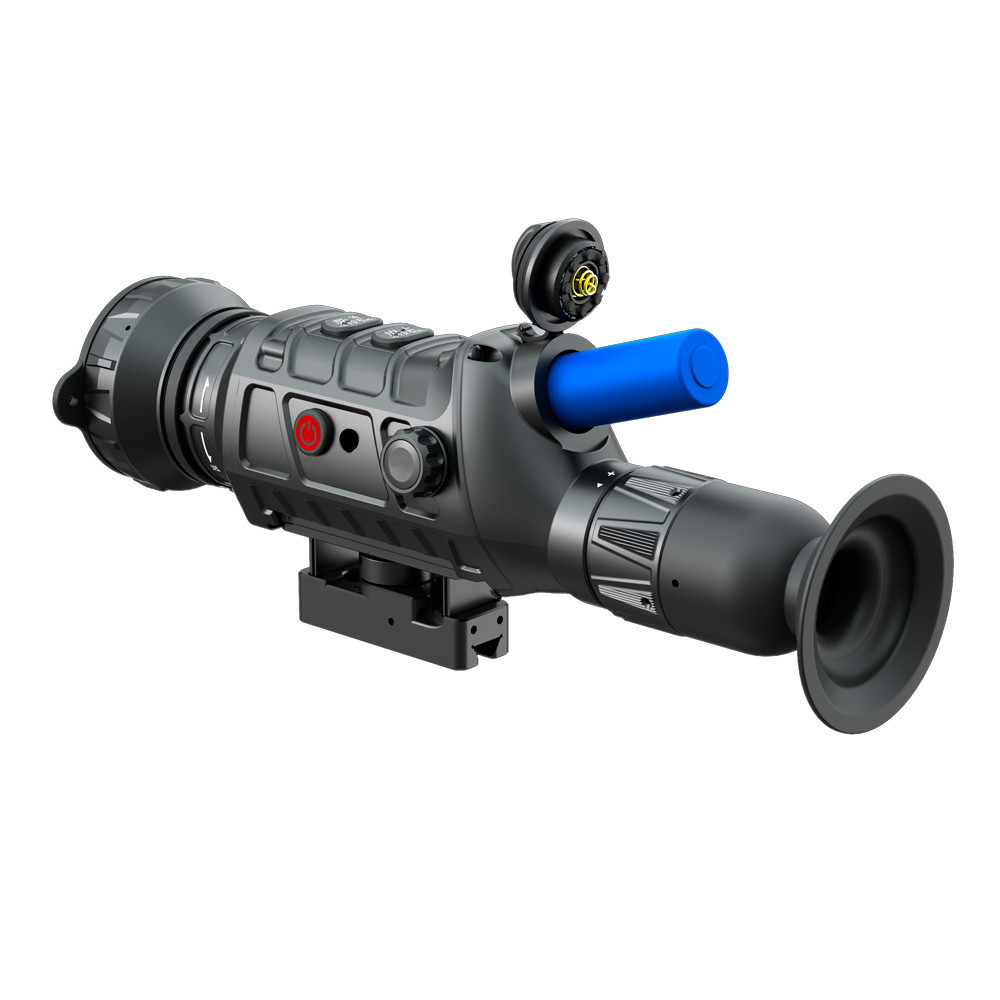

Guide TS450 thermal camera

Guide TS450 thermal camera
Guide TS450 thermal camera
Guide TS450 thermal camera
- 400 x 300 pixel sensor resolution, 17 µm pixel pitch

- 3.3x - 13.2x magnification (3.3x optical, 4x digital)

- range of detection: 1400m (human target 1.8 x 0.5m)

- 1024x768 display resolution

- Shipping is not allowed due export restrictions outside Hungary
Riflescope front lens diameter
42 mm
Thermal sensor
400x300 17μm
Thermal sensor NETD
50 mK
Horizontal field of view (°)
7.5
Horizontal filed of view
7.5
Céltávcső frontlencse átmérő
42 mm
Thermal sensor
400x300 17μm
Out of stock
2 515.30 EUR
Not available for purchase!
We recommend the following product(s) as accessories
Details
Coming soon…
Info
Article number
GUITS450
Eye relief
48 mm
Plugs
színes PAL 50Hz Lemo video kimenet
Digital zoom
2x, 4x
Other properties

Megfelelőségi nyilatkozatok:  RoHS, CE
Video kimenet menüvel
Szín paletták: fehér kiemelt, fekete kiemelt, vörös kiemelt 1, vörös kiemelt 2, vörös kiemelt 3, zöld kiemelt, kék kiemelt
Kép a képben funkció, állítható pozícióval
Forrópont követés

Energy supply
1 x 18650 akku, készülékházon kívül tölthető
Manufacturer
Guide
Warranty
2 év
Image repetition frequency
50 Hz
Display
színes, 0,39 coll OLED kijelző 1024x768 pixel
Screen color modes
7 üzemmód
Field of view (°)
7.5°x5.6°
Least magnification
3.3
Utmost magnification
13.2
Shock resistance
500 G
Sizes
250 x 90 x 75 mm
Working / storage temperature
-40 - +50°C
Lens
50 mm fókusztávolság F1.1, manuális fókusz
Old article number
GUITS450
Sensor
400x300 pixel felbontás, 17 µm pixelméret, NETD <= 50 mK
Color
black
In the box
hőkamera céltávcső, objektív fedél, akkumulátor, töltő, videókábel, szerelék, kemény fedelű tok, használati útmutató
Weight (g)
720
Operating time
akár 5 óra megfigyelés üzemmódban 3400 mAh-s akkumulátorral, kisebbel 3 óra
Water resistance
IP67
Product type
Thermal camera, Nightvision
Article No.
GUITS450
