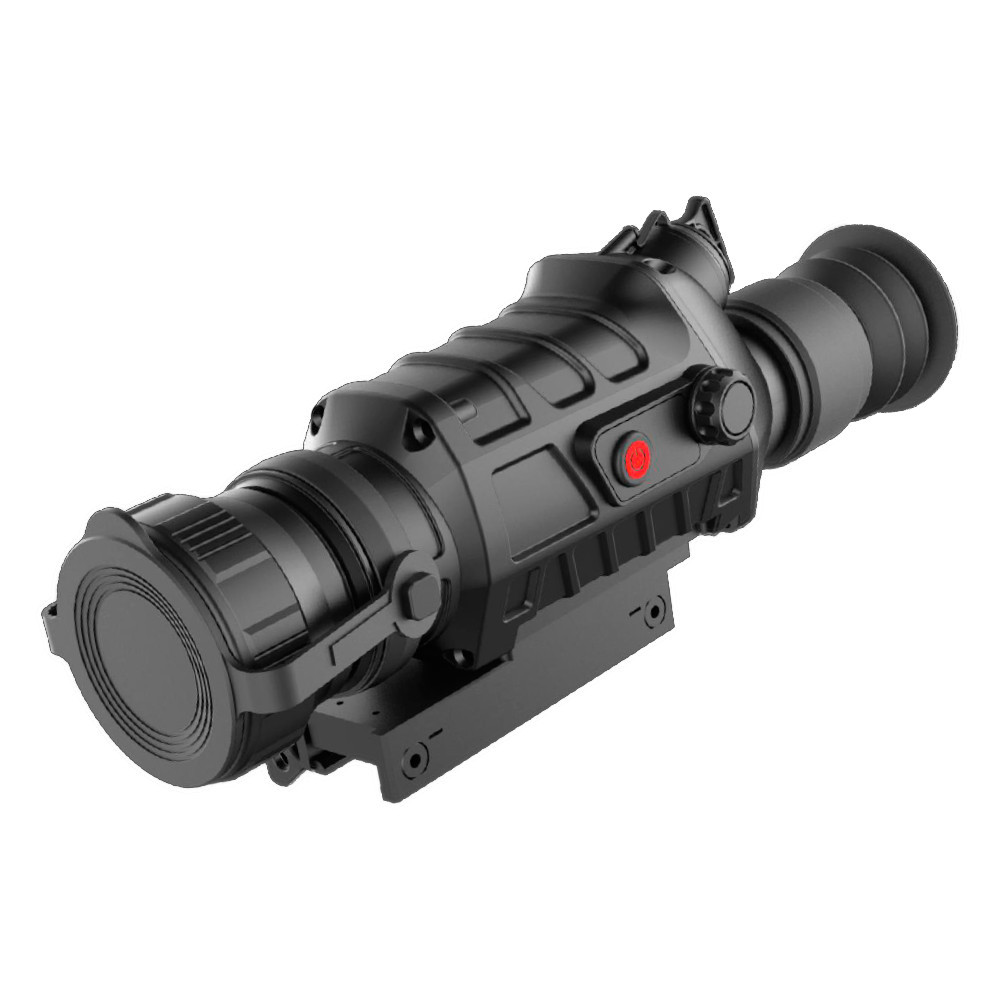

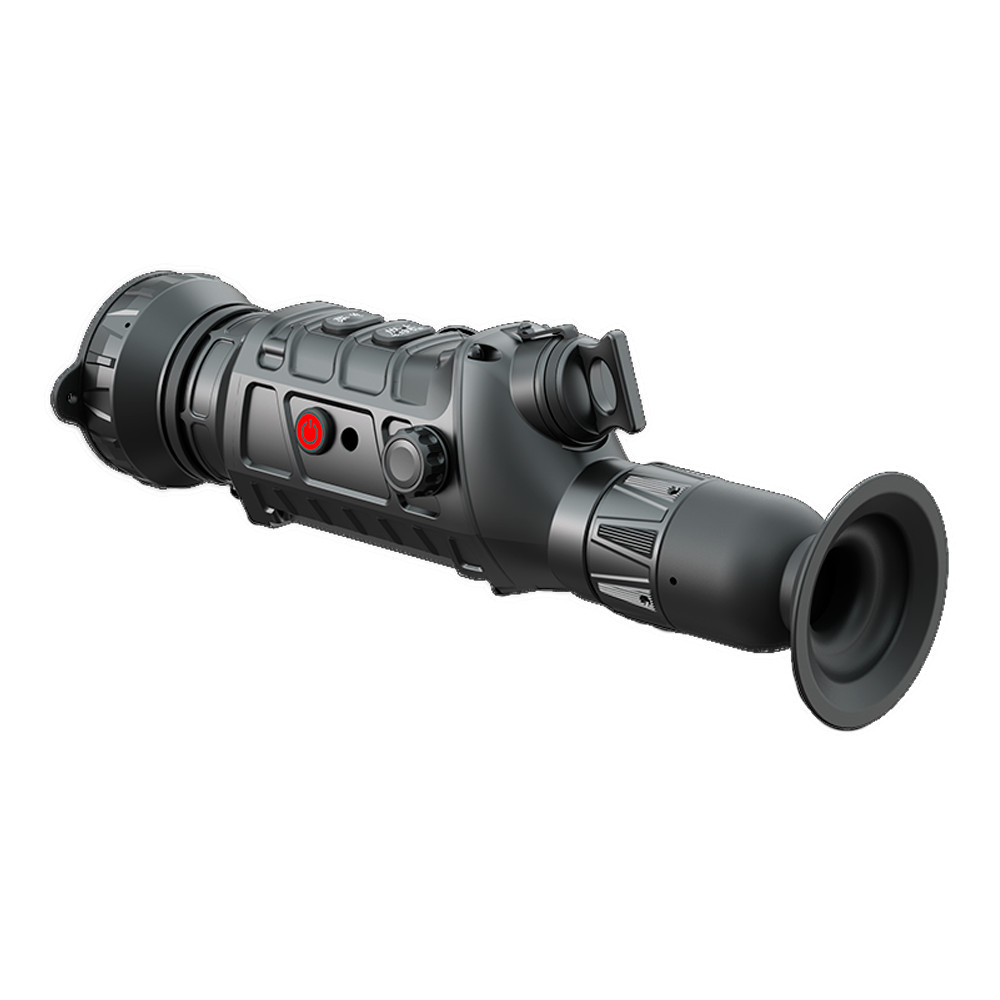

Guide TS435 thermal camera

Article No.:
GUITS435
- 400 x 300 pixel sensor resolution, 17 µm pixel pitch

- 2.3x - 9.2x magnification (2.3x optical, 4x digital)

- range of detection: 1000m (human target 1.8 x 0.5m)

- 1024x768 display resolution

- Shipping is not allowed due export restrictions outside Hungary
Riflescope front lens diameter:
29 mm
Thermal sensor, The smaller the value the more detail the picture has.: 400x300 17μm Thermal sensor:
400x300 17μm
Thermal sensor NETD:
50 mK
Horizontal field of view (°), One of the most important value when choosing the proper thermal camera. Bigger values are better for short distance. Less values are better for great distances.: 10.7 Horizontal field of view (°):
10.7
Céltávcső frontlencse átmérő:
29 mm
Thermal sensor:
400x300 17μm
2 243.32 EUR
Details
Coming soon…
Info
Article number: GUITS435 Article number:
GUITS435
Eye relief: 48 mm Eye relief:
48 mm
Plugs: színes PAL 50Hz Lemo video kimenet Plugs:
színes PAL 50Hz Lemo video kimenet
Digital zoom: 2x, 4x Digital zoom:
2x, 4x
Other properties:

Megfelelőségi nyilatkozatok:  RoHS, CE
Video kimenet menüvel
Szín paletták: fehér kiemelt, fekete kiemelt, vörös kiemelt 1, vörös kiemelt 2, vörös kiemelt 3, zöld kiemelt, kék kiemelt
Kép a képben funkció, állítható pozícióval
Forrópont követés
Other properties:

Megfelelőségi nyilatkozatok:  RoHS, CE
Video kimenet menüvel
Szín paletták: fehér kiemelt, fekete kiemelt, vörös kiemelt 1, vörös kiemelt 2, vörös kiemelt 3, zöld kiemelt, kék kiemelt
Kép a képben funkció, állítható pozícióval
Forrópont követés

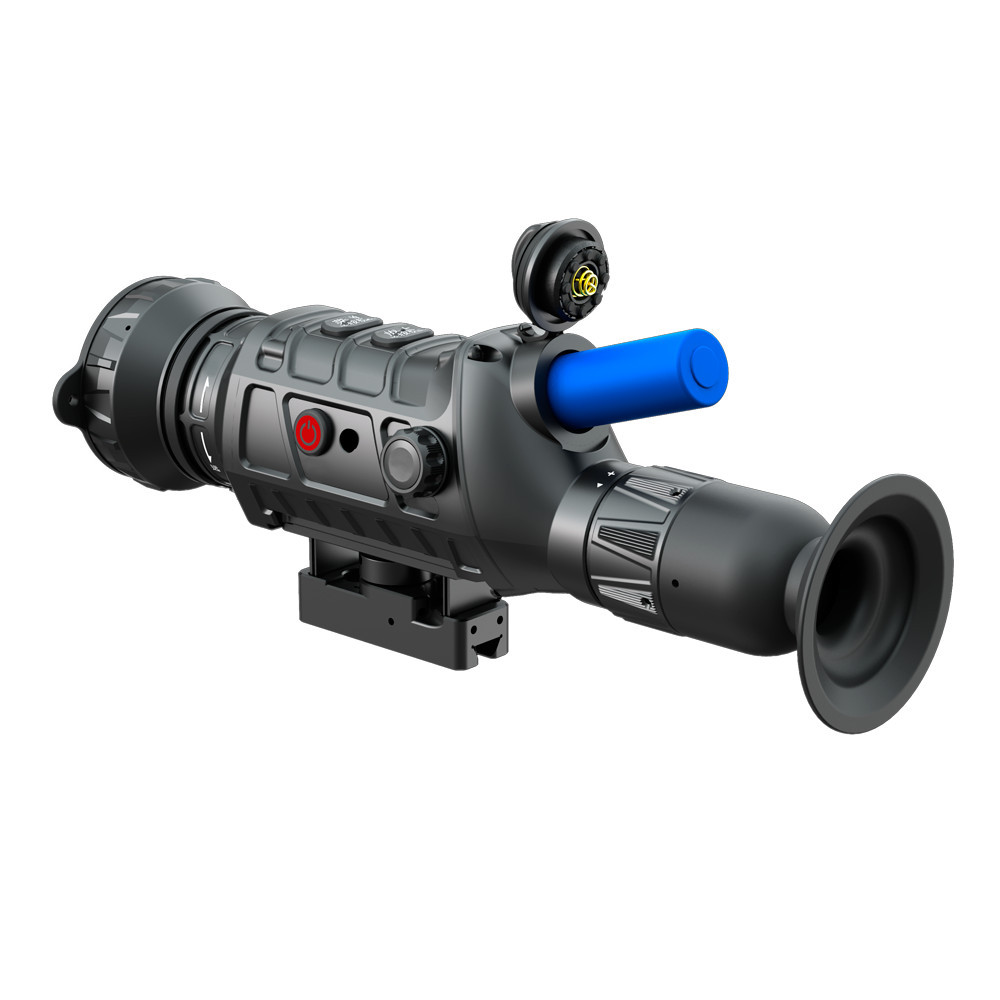

Energy supply: 1 x 18650 akku, készülékházon kívül tölthető Energy supply:
1 x 18650 akku, készülékházon kívül tölthető
Manufacturer: Guide Manufacturer:
Guide
Warranty: 2 év Warranty:
2 év
Image repetition frequency: 50 Hz Image repetition frequency:
50 Hz
Display: színes, 0,39 coll OLED kijelző 1024x768 pixel Display:
színes, 0,39 coll OLED kijelző 1024x768 pixel
Screen color modes: 7 üzemmód Screen color modes:
7 üzemmód
Field of view (°): 10.7°x8.0° Field of view (°):
10.7°x8.0°
Least magnification: 2.3 Least magnification:
2.3
Utmost magnification: 9,2 Utmost magnification:
9,2
Shock resistance: 500 G Shock resistance:
500 G
Sizes: 230 x 90 x 75 mm Sizes:
230 x 90 x 75 mm
Working / storage temperature: -40 - +50°C Working / storage temperature:
-40 - +50°C
Lens: 35 mm fókusztávolság F1.1, manuális fókusz Lens:
35 mm fókusztávolság F1.1, manuális fókusz
Old article number: GUITS435 Old article number:
GUITS435
Sensor: 400x300 pixel felbontás, 17 µm pixelméret, NETD <= 50 mK Sensor:
400x300 pixel felbontás, 17 µm pixelméret, NETD <= 50 mK
Color: black Color:
black
In the box: hőkamera céltávcső, objektív fedél, akkumulátor, töltő, videókábel, szerelék, kemény fedelű tok, használati útmutató In the box:
hőkamera céltávcső, objektív fedél, akkumulátor, töltő, videókábel, szerelék, kemény fedelű tok, használati útmutató
Weight (g): 660 Weight (g):
660
Operating time: akár 5 óra megfigyelés üzemmódban 3400 mAh-s akkumulátorral, kisebbel 3 óra Operating time:
akár 5 óra megfigyelés üzemmódban 3400 mAh-s akkumulátorral, kisebbel 3 óra
Water resistance: IP67 Water resistance:
IP67
Product type: Thermal camera, Nightvision Product type:
Thermal camera, Nightvision
