JSA IR-35 VOX NIGHTLUX (GUIDE IR510 NANO 35) thermal monocular LH smart set

Article No.:
GUINLIR510N35lhset

Please consult with legal authorities about the usability for hunting purposes!

Thermal sensor, The smaller the value the more detail the picture has.: 400x300 17μm Thermal sensor:
400x300 17μm
Magnification interval (x):
1.7 – 6.8
Horizontal field of view (°), One of the most important value when choosing the proper thermal camera. Bigger values are better for short distance. Less values are better for great distances.: 10 Horizontal field of view (°):
10
User's Guide (HUN), A linkre kattintva letölthető a magyar nyelvű használati útmutató.:

Hungarian version

User's Guide (HUN):
Thermal sensor:
400x300 17μm
1 136.68 EUR
Details

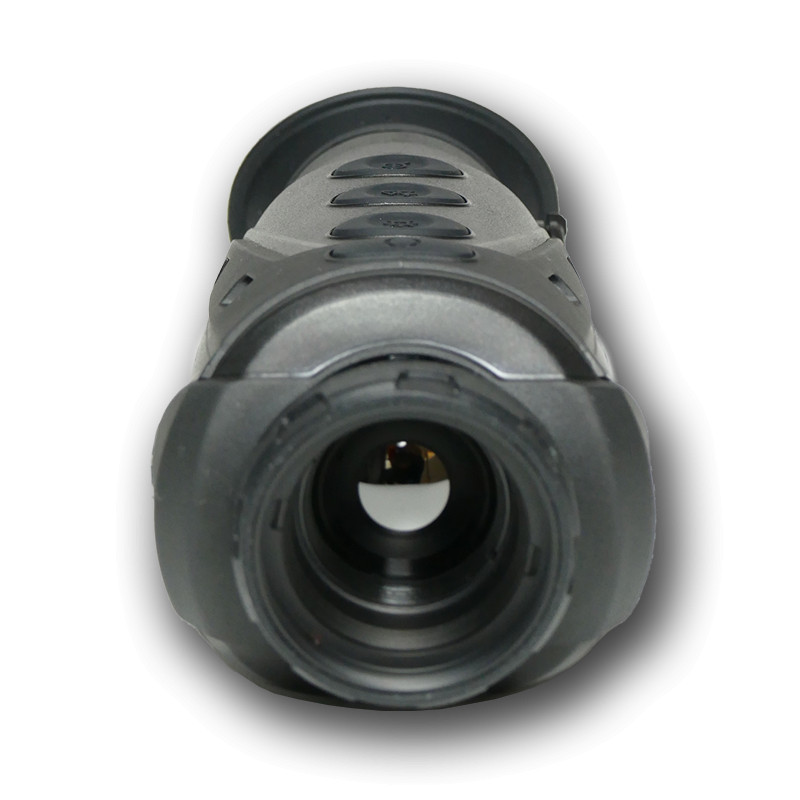

Guide IR510 Nano 35 - with Night Lux badge



Smart set with useful accessories:

monocular
comfortable neckstrap
strong case with soft inside and shoulder strap
powerbank

With 720 x 540 pixel screen resolution.

Nano 35 has got the system of well known Nano 2. It has got a bigger (35 mm instead of 25 mm) focal range so it is designed for slightly bigger distances. It has a 1,7x base magnification that can be raised up to 6,8x with its 4x digital zoom. It is optimized for medium distances.

The Nano 35 is a really user-friendly thermal monocular with easy operation. It has got a built-in flash light which can be very useful on the field.
Its reliability and capabilities make it proper using for discovering the wild world.

Structure:

Modern shape, comfortable to held, durable surfaces on the body.



Standard analogue video output with PAL and NTSC compatibility which can be activated from the menu. With its 720x540 screen resolution and manual focusing it has got always crystal clear picture.

Info
Article number: GUINLIR510N35lhset Article number:
GUINLIR510N35lhset
Base magnification (x): 1,7 Base magnification (x):
1,7
Plugs: standard micro USB adapter, max 10W, charging and data transfer, analog video output PAL and NTSC compatibility Plugs:
standard micro USB adapter, max 10W, charging and data transfer, analog video output PAL and NTSC compatibility
Digital zoom: 2x, 4x Digital zoom:
2x, 4x
Diopter compensation: -4 - +4 dpt Diopter compensation:
-4 - +4 dpt
Other properties: Hot spot tracking, charging indicator, Freeze mode, display brightness adjustment Other properties:
Hot spot tracking, charging indicator, Freeze mode, display brightness adjustment
Energy supply: rechargeable built-in Li-Ion, 3.7V, 3200 mAh Energy supply:
rechargeable built-in Li-Ion, 3.7V, 3200 mAh
Detection distance (Information data, that shows the distance an object can be seen from as one pixel. It's just one pixel without shape and contours. The distance, from that the object, game or human body can be identificate with it's shape, is usually much shorter.): Detection range: car - 2400 m human body: 1000 m Detection distance:
Detection range: car - 2400 m human body: 1000 m
Type: Egyszemes kereső Type:
Egyszemes kereső
Video recording: None Video recording:
None
Manufacturer: Guide Manufacturer:
Guide
Warranty: 2 years manufacturer's warranty Warranty:
2 years manufacturer's warranty
Type: Monocular Type:
Monocular
Image repetition frequency: 50 Hz Image repetition frequency:
50 Hz
Display: color 0.2'' 720 x 540 LCOS Display:
color 0.2'' 720 x 540 LCOS
Screen color modes: 6 color modes - Black Hot, White Hot, Red Hot 1, Red Hot 2, Red Hot 3 Screen color modes:
6 color modes - Black Hot, White Hot, Red Hot 1, Red Hot 2, Red Hot 3
Field of view (°): 10°×7.35° Field of view (°):
10°×7.35°
Minimum focus range (m): 3 Minimum focus range (m):
3
Least magnification: 1.7 Least magnification:
1.7
Utmost magnification: 6.8 Utmost magnification:
6.8
Sizes: 168mm × 67mm × 62mm Sizes:
168mm × 67mm × 62mm
Working / storage temperature: -10℃ - +50℃ / -30℃ - +60℃ Working / storage temperature:
-10℃ - +50℃ / -30℃ - +60℃
Lens: 35 mm, manual focus Lens:
35 mm, manual focus
Optional accessories: 40 mm focal length lens attachment Optional accessories:
40 mm focal length lens attachment
Spectral range: 8μm - 14μm Spectral range:
8μm - 14μm
Sensor: 400 x 300 17 μm pixel size Sensor:
400 x 300 17 μm pixel size
Color: black Color:
black
In the box: lens cap, wrist strip, shoulder strap, soft case, user's manual In the box:
lens cap, wrist strip, shoulder strap, soft case, user's manual
Weight (g): 400 Weight (g):
400
Operating time: more than 5 hours Operating time:
more than 5 hours
Water resistance: IP66 Water resistance:
IP66
Product type: Thermal camera, Nightvision Product type:
Thermal camera, Nightvision
Type: Monocular Type:
Monocular
