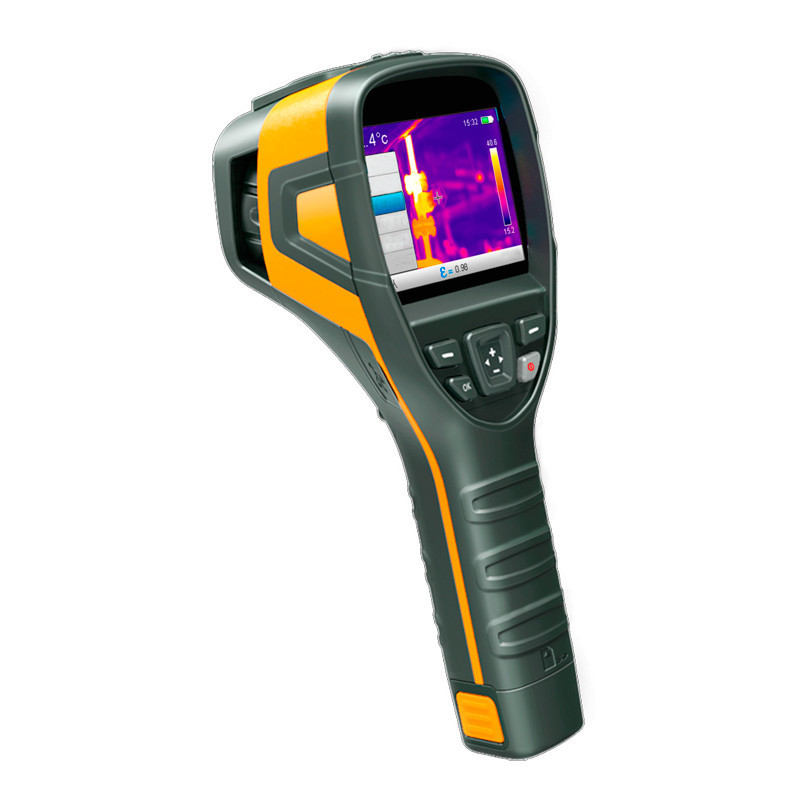

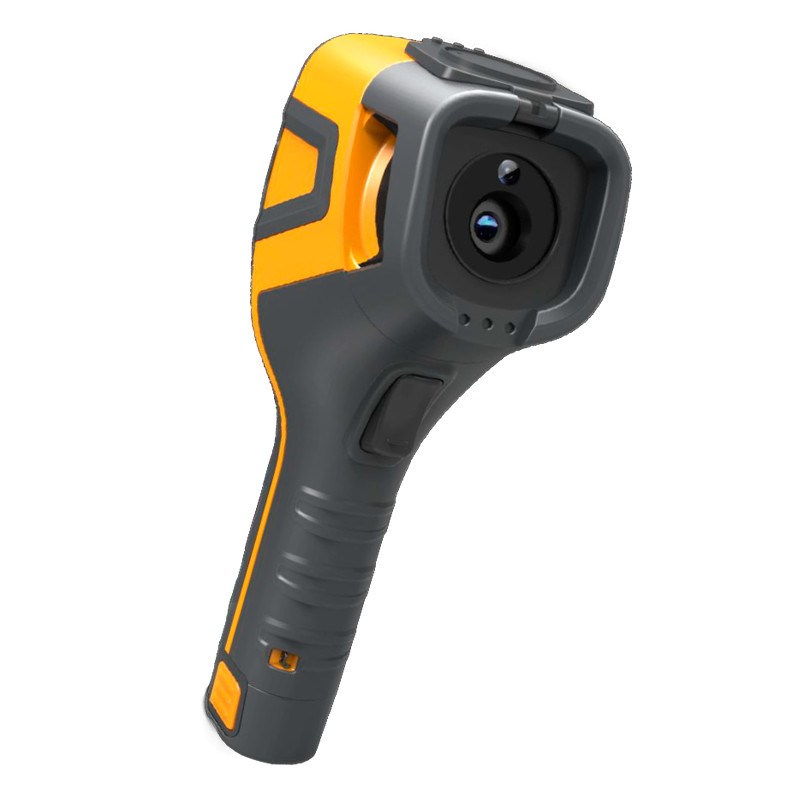

Guide B160V industrial thermal camera

Guide B160V industrial thermal camera
Guide B160V industrial thermal camera
Guide B160V industrial thermal camera

Ipari professzionális felhasználásra

Thermal sensor
160x120 17μm
Thermal sensor NETD
50 mK
Magnification interval (x)
1 – 4
Horizontal field of view (°)
30
Horizontal filed of view
30
User's Guide (HUN)
Thermal sensor
160x120 17μm
Out of stock
820.29 EUR
Not available for purchase!
Details
Coming soon…
Info
Article number
GUIB160V
Data storage
memóriakártya, 32 GB-ig bővíthető memóriakártya foglalat
Base magnification (x)
1
Plugs
micro USB 2.0
Digital zoom
2x, 4x
Other properties
WiFi
Színpaletták: 6 féle
hangjegyzet 60 mp-ig, írásos jegyzet lehetőség, vizuális jelölés
videó streaming: USB-n és WiFi-n keresztül
Energy supply
beépített, tölthető Li-ion akkumulátor 7.4 V
Type
Kézi kereső
Video recording
H.264 formátum, hőmérsékleti adatokkal is
Manufacturer
Guide
Warranty
3 év gyártói, a szenzorra 10 év
Type
Handheld camera
IFOV
2.36 mrad
Image repetition frequency
25 / 9 Hz
Display
320x240 pixeles nagy fényerejű 3.5 coll, LCD képernyő
Screen color modes
6 színmód, emellett infra hőkép, vizuális kép, mixelve, kép a képben
Field of view (°)
30°×23°
Minimum focus range (m)
1
Least magnification
1
Utmost magnification
4
Sizes
258mm×98mm×90mm
Measurement properties

Hőmérsékleti tartományok: -20°C - 350°C
Pontosság: +/- 2°C, vagy +/- 2% 15 és 35 °C közötti környezeti hőmérséklet esetén, 0°C feletti tárgyhőmérséklet esetén

Working / storage temperature
-10 - +50°C / -40 - +70°C
Lens
5 mm fókusztávolság, F1.2, fix fókusz
Optional accessories
kamera táska, dokkoló töltő
Old article number
GUIB160V
Spectral range
8 - 14 μm
Sensor
160x120 pixeles hűtetlen VOx UFPA mikrobolométer, 17 μm pixelméret, NETD: ≤50 mK,
Color
yellow
In the box
kamera, csuklószíj, SD kártya, akku töltő, USB kábel, adapter, program CD, használati útmutató
Supported photo resolutions
JPEG hőmérséklet adatokkal, 640x480
Weight (g)
740
Shock resistance
1 méter magasból történő leejtésig
Operating time
4 óra
Water resistance
IP43
Product type
Thermal camera, Nightvision
Type
Handheld camera
Article No.
GUIB160V
