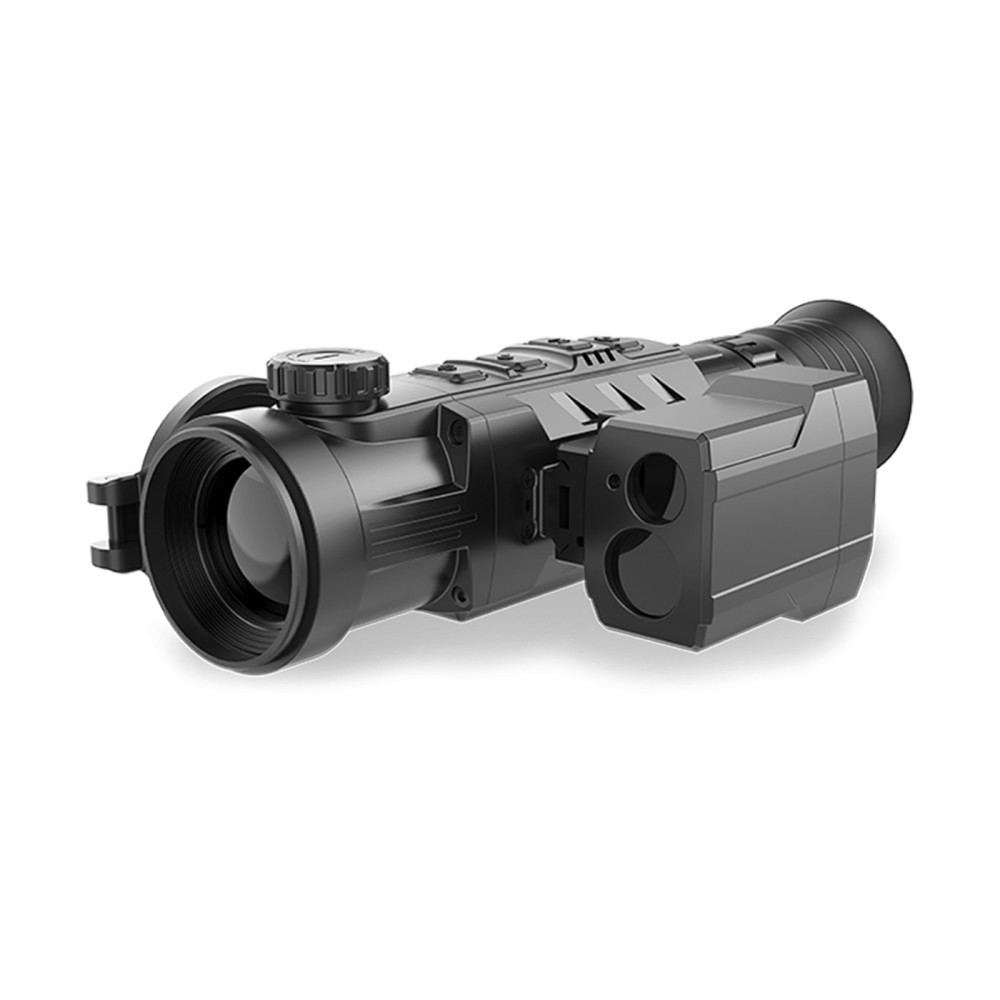

InfiRay Rico RH35R thermal riflescope with LRF

Article No.:

Please consult with legal authorities about the usability for hunting purposes!

Riflescope front lens diameter:
35 mm
Riflescope magnification:
2 - 8x
Thermal sensor:
640x512 12μm
Thermal sensor NETD:
40 mK
Magnification interval (x):
2 – 8
User's Guide (HUN):


Céltávcső frontlencse átmérő:
35 mm
Thermal sensor:
640x512 12μm
4 609.69 EUR

Meet Rico Series

The Rico series is a multifunctional and highly expandable infrared thermal imaging product.  The product is featured with alterable laser rangefinder, detachable battery pack,  eyepiece magnification up to 16 times, and comprehensive upgrade of software interface. With the updated, the Rico series also offers advanced image correction and automatic  image optimization.



    • High Image Quality


The Rico series is embedded with an infrared,  independently developed high performance VOx  detector, which offers you vivid, highly detailed  thermal images. It is easier to search for targets in  the dark with amazingly sharp image quality.


    • AMOLED Micro Display


The high contrast AMOLED micro display with  HD resolution offers sharp image and vivid  colors. The display screen has excellent image  quality and gives a flawless performance, even  in freezing temperature.


    • Ultraclear Mode


The built-in ultraclear mode is especially designed  for harsh weather conditions, such as in heavy fog  and rain. It will be more sensitive and display more  details.


    • User-Friendly Interface


Simple and easy to operate is the initial design intention  of the Rico series. The vivid icon design offers a  visualized guide and translucent background of the  menu display, ensuring the user to observe the target  unobstructed.


    • Picture-in-Picture


The Picture-in-Picture function improves accuracy by providing a 2 x-magnified image of the reticle area, at the top of the display. It helps to magnify the target while maintaining visibility of the entire field of view.


    • High Shock Resistance

The Rico series features exceptionally high shock resistance up to 1000 G.


    • 12 µm Thermal Imaging Sensor

High performance 12 μm pixel pitch detectors are embedded.


    • Expandable Laser Ranging Function


The Rico series offers laser ranging capabilities,  which can accurately capture and display the target  distance with an accuracy of ± 1 m and a maximum  distance of 1000 m. Integrated, precision laser rangefinder provides accurate rangefinding in two modes – Single Time Measurement and Scanning mode with ±1 m accuracy up to 1 km distance. Scanning mode allows the shooter to adjust quickly to changing distances for better shot placement.

    • Long detection range up to 2600 m


Powerful objective lens in combination with professional grade thermal imaging sensor with NETD ≤40 mK provides exceptional detection capabilities. A standard 1.8m tall object can be detected at a 2600 m distance in complete darkness.


    • Replaceable Battery Pack


The Rico series support a 3.7 V, 4400 mAh large  capacity battery pack that operates for 6 hours. With  the ability to maintain continuous power supply at  any time outdoors, it provides an ideal battery  solution. The batteries can be quickly removed and  replaced with new ones in a matter of seconds.


    • Video Recording


The Rico series offer video record and image capture during  observation. The video and photo can be easily transmitted  via wired or WiFi connection. The Built-in video recorder is a great asset when it comes to filming or taking photos of once-in-a-lifetime experiences. One press of the REC button captures footage that can be shared easily with colleagues, friends and family. 32 Gb of internal memory provide many hours of recorded video and tons of photos.


    • Built-in Accelerometer and Digital Compass


The built-in accelerometer and digital compass improves accuracy by precisely identifying cant and angles. It can indicate the direction and degree of lateral tilting.

Data storage:
32 GB built-in memory
Base magnification (x):
Eye relief:
55 mm
Digital zoom:
2x, 3x, 4x
Diopter compensation:
-5 - +5 dpt
Other properties:

Photo and video recording
Video output
Motion sensor
Digital compass
LRF laser rangefinder

optional rangefinder

Energy supply:
rechargeable battery 3.7 V, 4400 mAh
Detection distance:
Human (1.7 x 0.5 m): 2179 m
3-year general warranty for the device, 10 years for the sensor, 2 years for the battery
Image repetition frequency:
50 Hz
1024x768 pixel AMOLED, 0,39''
Screen color modes:
4 modes
Exit pupil:
6 mm
Least magnification:
Utmost magnification:
Shock resistance:
1000 G
250 x 61 x 58 mm
35 mm F1.0
640x512 pixel, 12 µm pixel; NETD: <= 40 mK
In the box:
thermal riflescope, battery, LRF, picatinny mount
Weight (g):
Operating time:
up to 6 hours
Water resistance:
Product type:
Thermal camera, Nightvision
EAN code:
Riflescope magnification:
2 - 8x
