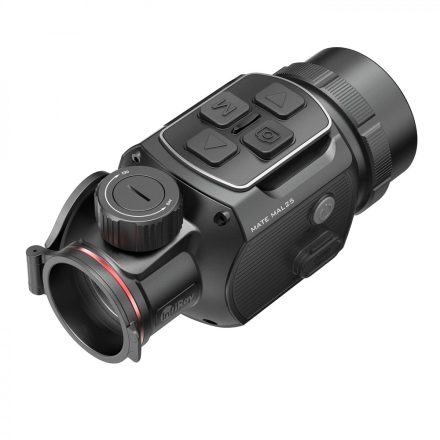

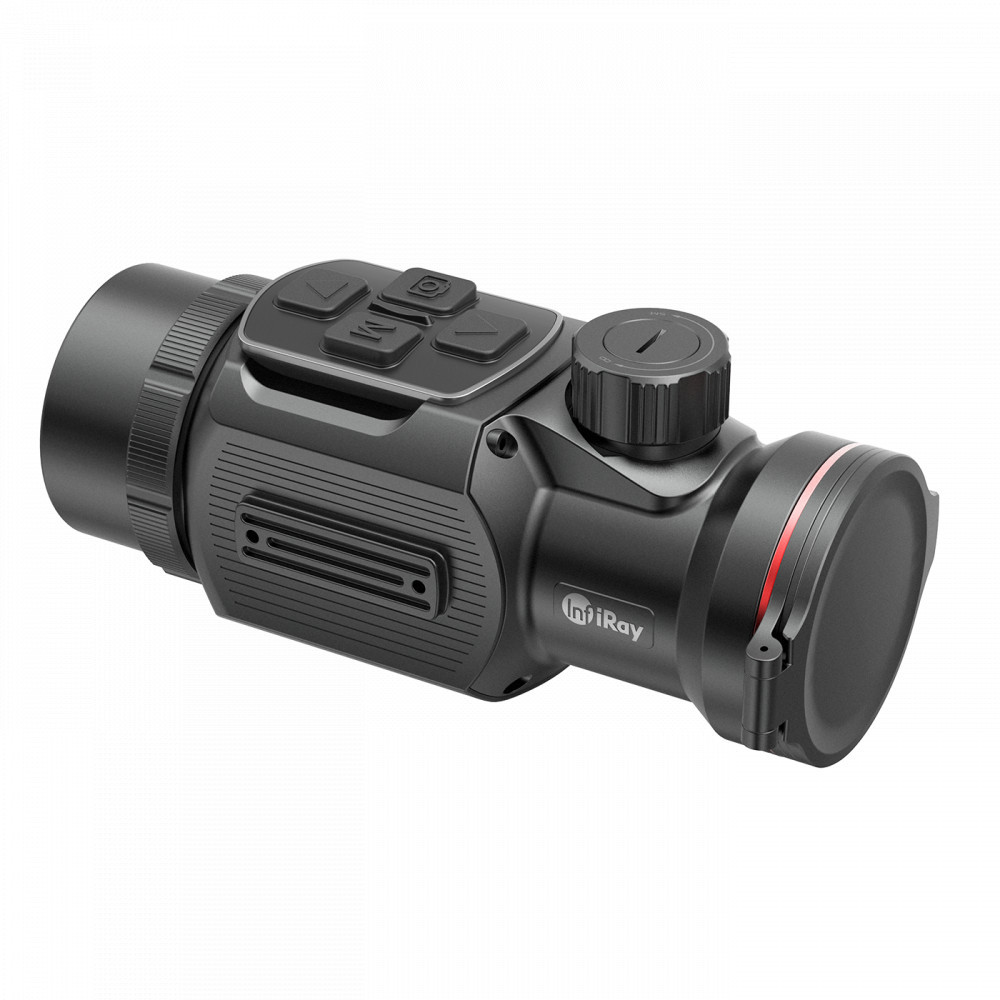

InfiRay Mate MAL25 thermal clip-on

Article No.:
IRAMAL25

Please consult with legal authorities about the usability for hunting purposes!

Thermal sensor:
384x288 12µm
Thermal sensor NETD:
30 mK
Magnification interval (x):
1 – 4
User's Guide (HUN) :

.

Thermal sensor:
384x288 12µm
On stock
1 762.24 EUR
Details



Meet Mate Series



MATE creates a spot where precision meets portability. The magnesium alloy housing reduces the weight by 50% and improves the precision. MATE supports practical functions, including removable buttons, LRF, and monocular extension. It is the ideal mate for users who want a compact size and great value.



Ultra-precision

MAH50/MAL38 can meet the high-precision requirement of "POI=1MOA" even by matching it with high-caliber rifles.


Lightweight & Compact Size

The weights are over 20% lighter than other similar products. It is also more compact in size than our previous clip-on.


Powerful Detector

MAH50 features a high-performance 640*512, 12μm detector with NETD less than 25mk. MAL38/ MAL25 provide cost-effective choices without major compromise in image quality.


Distortion-free

A high-quality optical imaging system offers a distortion-free image even when used with a 10 times daytime scope.


Sense-based Algorithms

The algorithms improve image quality by setting suitable preset parameters based on different environments, forest, plain, and city.


Removable Buttons

The buttons can be moved and installed to any position on your rifle. This allows hunters to control the device easily even when their focus is on the target. The remote control is supported by an ultra-low power consumption solution and can attach magnetically for automatic charging.


Power Bank in Box

Mate Series add a power bank as a complementary accessory. It can prolong the battery life for approximately another 7 hours.


LRF Extension

LRF can be equipped as an optional accessory. In addition to facilitating accuracy, the LRF extension can work as a power bank to prolong the 4-hour battery life for MATE.


Monocular Extension

MAH50 will function as a thermal imaging monocular when used with the IOM accessory. The IOM can also be used as an optic scope independently.


Info
Data storage:
32 GB built-in memory
Base magnification (x):
1
Material:
<p>magnesium alloy</p>
Plugs:
USB-C
Other properties:

photo and video shooting, WiFi livestream

Energy supply:
built-in battery + external IBP-4
Detection distance :

1298 m (1.7 x 0.5 m) human body

Manufacturer:
InfiRay
Warranty:
3-year general warranty for the device, 10 years for the sensor, 2 years for the battery
Image repetition frequency:
50 Hz
Display:
1024x768 color OLED
Screen color modes:
4 modes: Black Hot, White Hot, Red Hot, palette
Field of view (°):
10.6° x 7.9°
Least magnification:
1
Utmost magnification:
4
Shock resistance:
6500 J
Sizes:
132 x 62 x 68 mm
Lens:
25 mm
Sensor:
384x288 resolution uncooled microbolometer ; pixel size: 12 μm; refresh rate: 50Hz; NETD <= 30 mK
Color:
black
In the box:

thermal clip-on (without eyepiece), detachable control panel, zipped elegant case, IBP-4 external battery and its holder for rifle scope

Without universal riflescope adapter!

Weight (g):
460
Operating time:
up to 5 hrs + 7.5 hrs with external battery
Water resistance:
IP67
Product type:
Thermal camera, Nightvision
EAN code:
6973202303719
