Infiray M6D 25mm car thermal camera with laser pointer
Infiray M6D 25mm car thermal camera with laser pointer
5 961.73 EUR

Infiray M6D 25mm car thermal camera with laser pointer

Infiray M6D 25mm car thermal camera with laser pointer
Infiray M6D 25mm car thermal camera with laser pointer
Infiray M6D 25mm car thermal camera with laser pointer
Thermal sensor
640x512 12μm
Horizontal field of view (°)
17.5°
Horizontal filed of view
17.5°
Thermal sensor
640x512 12μm
Available for order
5 961.73 EUR
Details

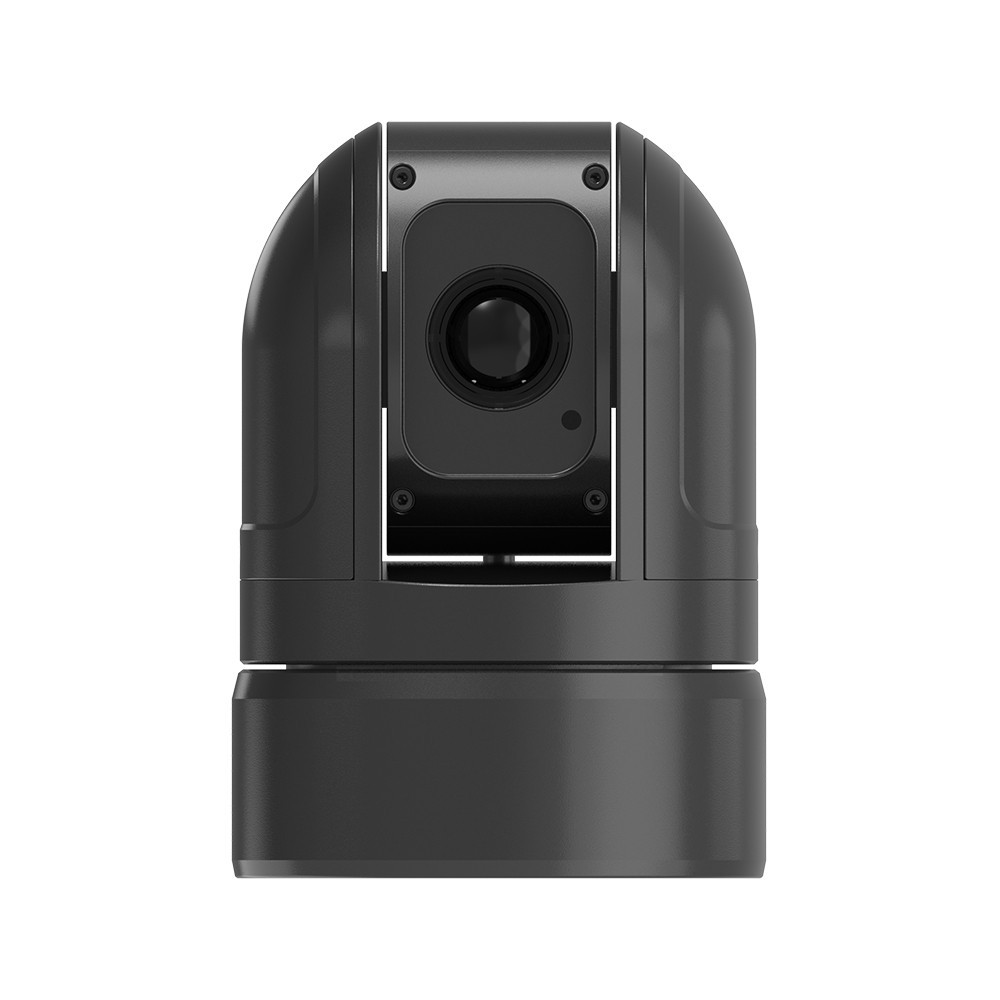

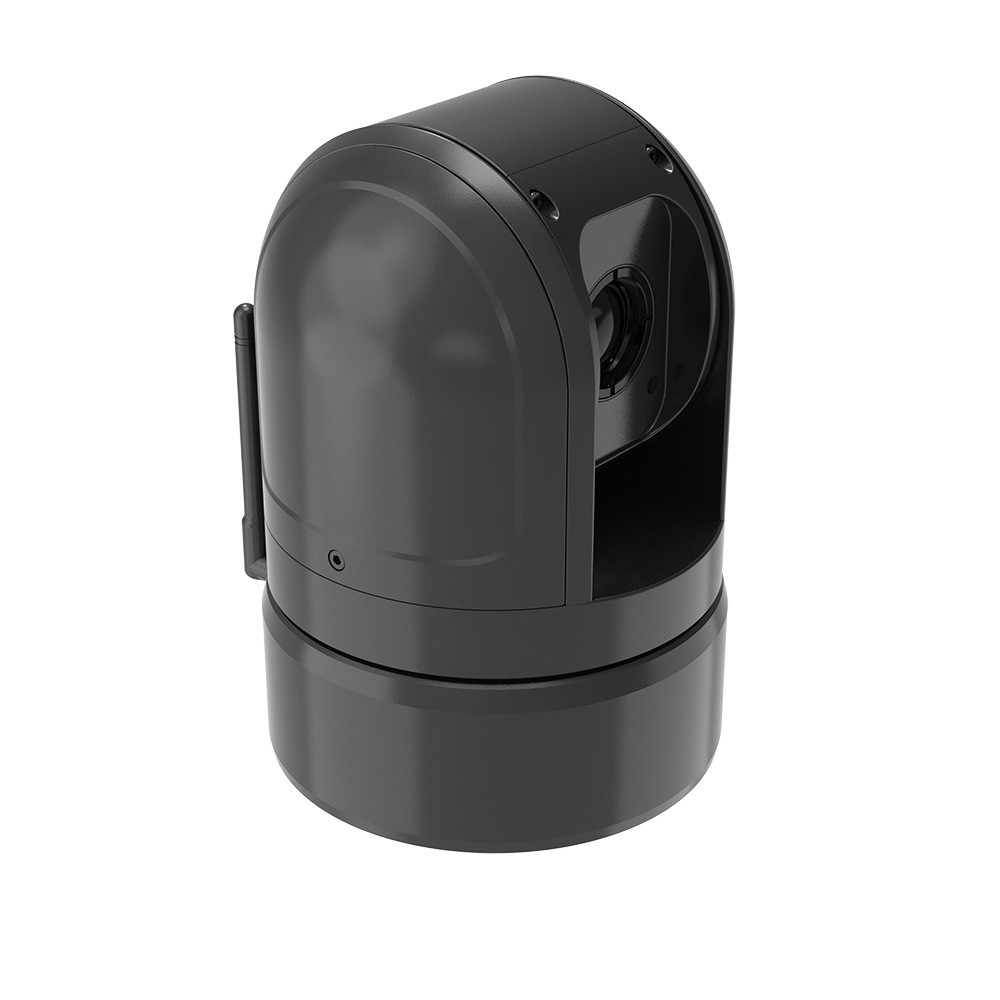

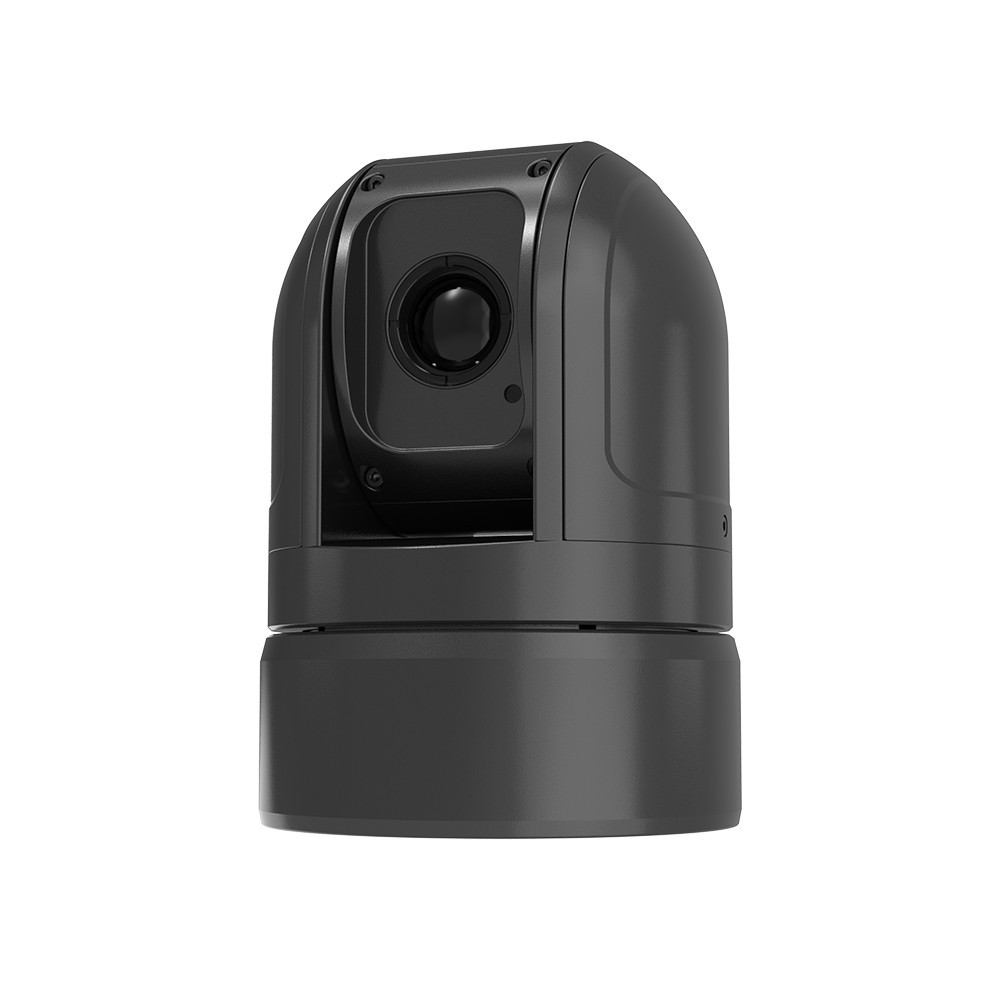

The dome thermal camera of the Infiray M6 series can be mounted on the body of a vehicle using a suction cup for outdoor surveillance, search and security patrolling.

Equipped with InfiRay's large, 640×512 pixel resolution, 12 µm pixel size, extremely modern infrared detector, the device provides extremely sharp and clear thermal images, bringing the quality of the most serious search thermal cameras. The M6D type is also equipped with a laser pointer.

In accordance with the needs of use, the M6D has a two-axis gyroscopic image stabilizer, thanks to which it provides users with spectacular information even in difficult road conditions. The M6 ​​can continuously correct direction deviations in a 360° azimuth angle and ±90° in a tilt angle. The selected direction can be programmed via mobile phone or wireless WIFI application. The camera keeps this in motion with the help of its advanced balancing system, so that the output video signal is as stable, enjoyable and informative as possible.

If necessary, the user can use the laser pointer with a high degree of accuracy due to the precise control in the case of the M6D type.
It can be extremely useful when mounted on the roof when performing tasks that require a vehicle.

Info
Article number
IRAM6D25
Data storage
built-in 64Gb memory, compatible up to 64 GB TF (micro SD)
Digital zoom
1x 2x 4x
Other properties

WiFi

Two-axis horizontal azimuth and pitch based gyro stabilizer

Detection range: ≥3m

Equipped with a laser pointer

Energy supply
DC 12V
Manufacturer
InfiRay
Warranty
3-year general warranty for the device, 10 years for the sensor, 2 years for the battery
Image repetition frequency
50 Hz
Field of view (°)
17.5°×14.0°
Sizes
133x188 mm
Working / storage temperature
-20 - +60°C / -
Lens
25 mm fix focus
Sensor
640x512 VOx microbolometer
Color
black
In the box

thermal camera, cables, car charger, mounts.

Weight (g)
2000
Water resistance
IP56
Product type
Thermal camera, Nightvision
Article No.
IRAM6D25
