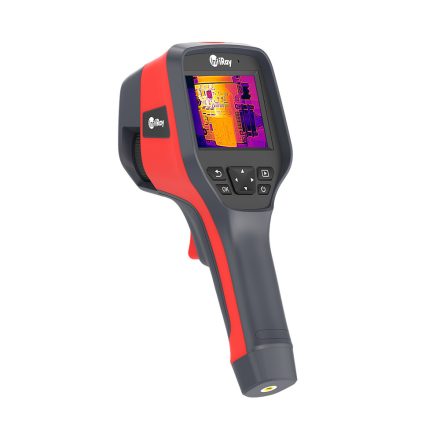

InfiRay M300G industrial thermal camera

3 744.53 EUR

InfiRay M300G industrial thermal camera

Name: InfiRay M300G industrial thermal camera
Brand: InfiRay
SKU: IRAM300G
Price: 3744.53 EUR
Availability: InStock

Költséghatékony és biztonságos

Details

Thermal sensor

384x288 12µm

Horizontal field of view (°)

43.7

User's Guide (HUN)

Hungarian version

Further data

Available for order

3 744.53 EUR

Details

Coming soon...

Info

Article number

IRAM300G

Data storage

micro SD up to 32 GB (not included)

Tripod thread

1/4 coll

Plugs

USB-C

Other properties

Picture modes: thermal imaging, fusion, PIP,visible imaging

In the event of an alarm recording manually or automatically with temperature data in the event of an alarm

Hardware requirement:

CPU: minimum i3
Memory: minimum 4 GB
Operation system: Windows 10 with Office 2010
Display settings: text resize applications and other items at least 100%

Energy supply

built-in li-Ion

Video recording

MPEG4

Manufacturer

InfiRay

Warranty

3 years manufacturer's warranty

IFOV

1.98 mrad

Display

3.5'' color LCD 640x480 pixel

Screen color modes

7 modes

Field of view

43.7°

Sizes

256x105x105 mm

Measurement properties

IFOV: 1.98 mrad
Measurement types: central point / hot point / cold point
Measuring range: -20 to +550°C
Accuracy: ±0.5°C
IR temperature scale: 0.1°C (0.2°F)

Working / storage temperature

-10°C to +50°C / -20°C to +60°C

Old article number

IRAM300G

Spectral range

8 - 14um

Sensor

384x288 pixel, uncooled FPA

Color

red

In the box

thermal camera, case, charger, 2 pcs of 4500 mAh battery, USB-C charging cable, analiser for PC

Supported photo resolutions

384x288

Weight (g)

670

Shock resistance

fall resistance 2 m

Operating time

up to 4 hours

Water resistance

IP54

Terméktípus

Thermal camera, Nightvision

Article No.

IRAM300G
