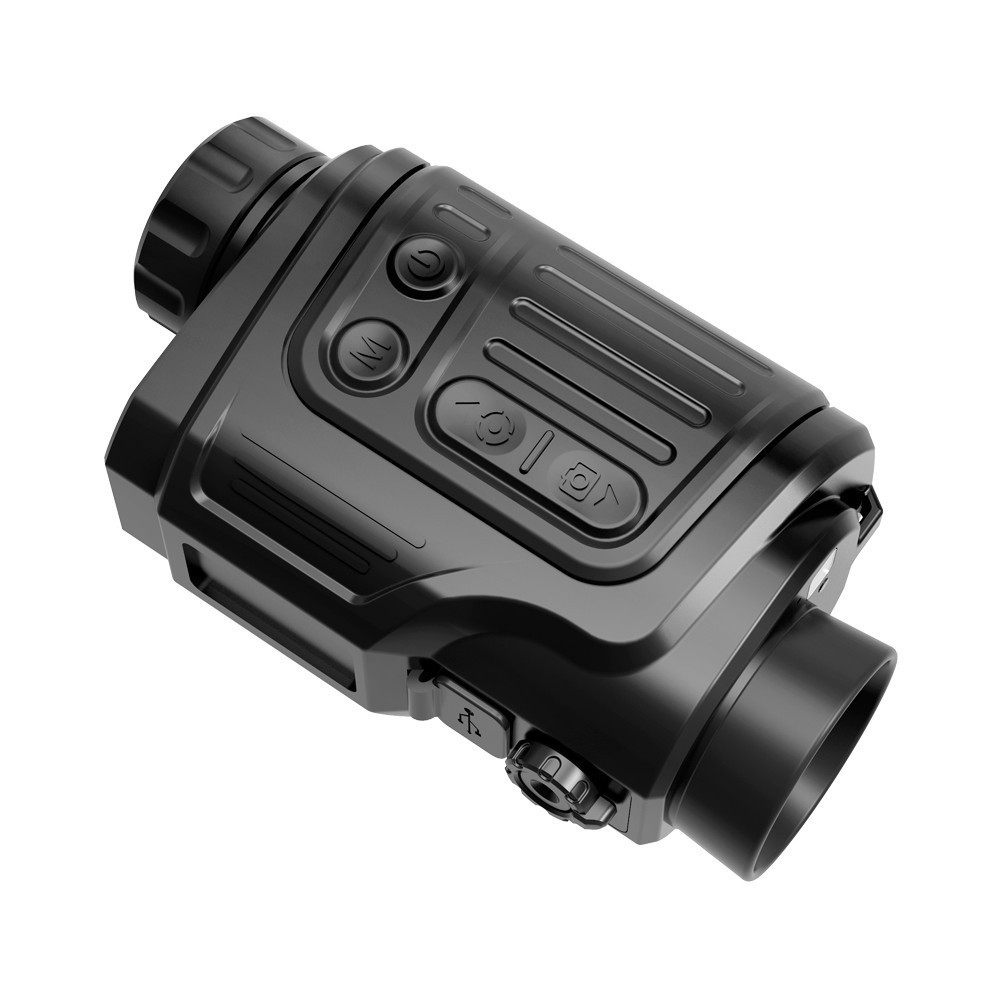

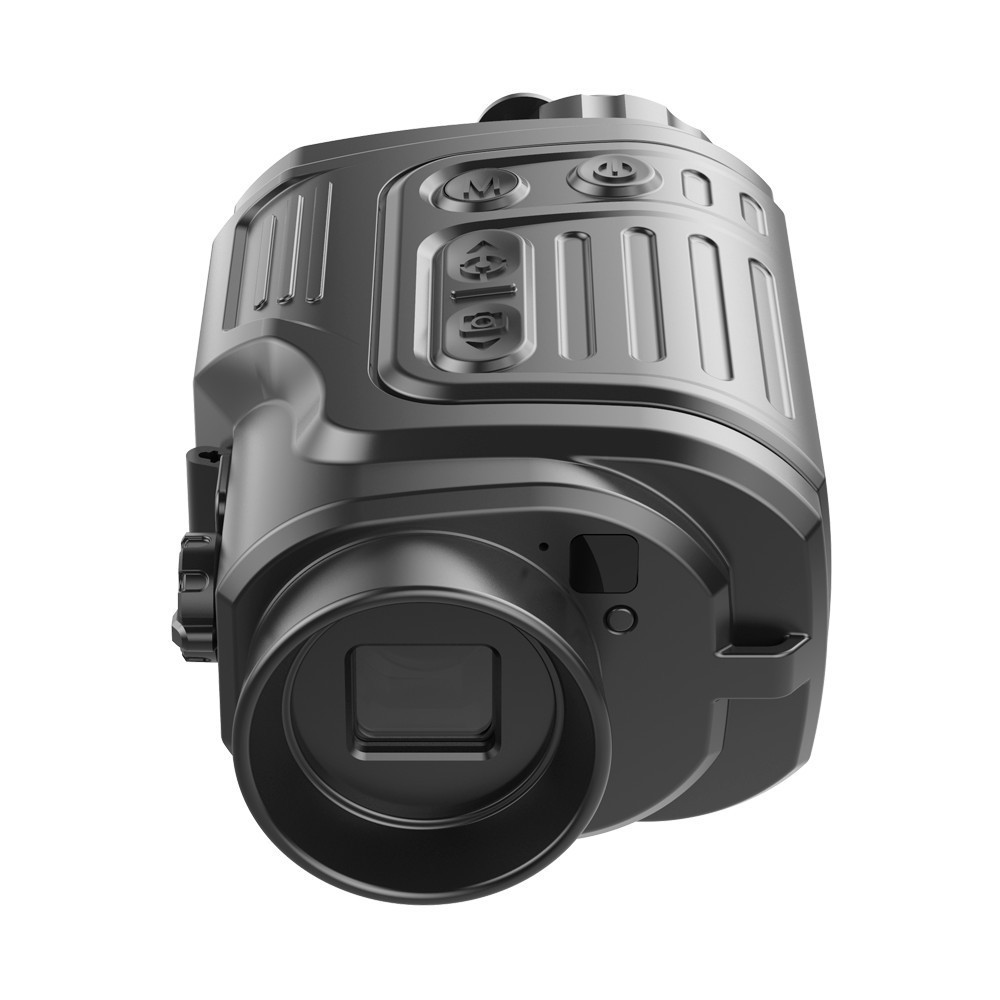

InfiRay Finder II FL 35R LRF thermal monocular with rangefinder

Article No.:
IRAFL35R

Please consult with legal authorities about the usability for hunting purposes!

Thermal sensor, The smaller the value the more detail the picture has.: 384x288 12µm Thermal sensor:
384x288 12µm
Thermal sensor NETD:
40 mK
Magnification interval (x):
3.4 – 13.6
Horizontal field of view (°), One of the most important value when choosing the proper thermal camera. Bigger values are better for short distance. Less values are better for great distances.: 7.5 Horizontal field of view (°):
7.5
User's Guide (HUN), A linkre kattintva letölthető a magyar nyelvű használati útmutató.:

.

User's Guide (HUN):

.

Thermal sensor:
384x288 12µm
1 624.30 EUR
Details

High Image Quality

The FH35R is equipped with 12μm 640×512 pixel pitch high-resolution sensors featuring NETD ≤35mk and uses a 1024x768 resolution OLED display. Coupled with the optimized image algorithm, it creates stunning clear imaging.

Dual-Hue Mode

For a better visual experience, Finder II supports switching between cold and warm image hues. With the cold hue setting, users experience visually clearer imaging quality with rich details and highlight targets. The warm hue setting generates softer imaging to avoid visual fatigue brought by extended usage.

Integrated Laser Rangefinder (LRF) up to 800m

The Finder II Series has a built-in laser ranging module, which provides both single ranging and continuous ranging,helping to capture target distance accurately. With an accuracy of ± 1m within 800m, accurate evaluation of distance and terrain is quick and easy.

Long Detection Range 1818 m

The 35mm objective lens in combination with advanced thermal imaging hardware provides exceptional detection. The FL35R & FH35R can boast detection ranges of up to 1818 meters in complete darkness.

Replaceable Battery Pack

The battery can be quickly removed and replaced with new ones in a matter of seconds. With a replaceable Li-ion battery pack, you can enjoy up to 6 hours battery life. Carrying an additional battery pack as standard can extend battery life up to 12 hours.

Photo/video Recorder, Built-in 32GB Storage Capacity

The Finder II Series is equipped with 32GB of digital storage video and photos. Saved video and photo files can be transferred to a computer via wired connection or to a phone via WiFi.

WiFi Connection & App Supported

The Finder II Series and the InfiRay Outdoor app operate hand-in-hand, easily handling frame sync and data output. The app offers additional features such as access to the online InfiRay community and after sales support.

Info
Article number: IRAFL35R Article number:
IRAFL35R
When do I get it?: Orderable When do I get it?:
Orderable
Data storage: 32 GB built-in memory Data storage:
32 GB built-in memory
Base magnification (x): 3,4 Base magnification (x):
3,4
Tripod thread: 1/4 coll Tripod thread:
1/4 coll
Digital zoom: 1.5x / 2x / 2.5x / 3x / 3.5x / 4x Digital zoom:
1.5x / 2x / 2.5x / 3x / 3.5x / 4x
Diopter compensation: - 4 - +5 dpt Diopter compensation:
- 4 - +5 dpt
Other properties:

Laser rangefinder up to 800 m

NETD: 35mk

Live video through WiFi

photo and video

PIP

Other properties:

Laser rangefinder up to 800 m

NETD: 35mk

Live video through WiFi

photo and video

PIP

Energy supply: built-in Li-ion, rechargeable (2 pcs as accessory) Energy supply:
built-in Li-ion, rechargeable (2 pcs as accessory)
Detection distance (Information data, that shows the distance an object can be seen from as one pixel. It's just one pixel without shape and contours. The distance, from that the object, game or human body can be identificate with it's shape, is usually much shorter.):

Detection:

human body (1.7 x 0.5 m): 1818 m

Detection distance:

Detection:

human body (1.7 x 0.5 m): 1818 m

Type: Egyszemes kereső Type:
Egyszemes kereső
Video recording: Yes Video recording:
Yes
Manufacturer: InfiRay Manufacturer:
InfiRay
Warranty: 3-year general warranty for the device, 10 years for the sensor, 2 years for the battery Warranty:
3-year general warranty for the device, 10 years for the sensor, 2 years for the battery
Type: Monocular Type:
Monocular
Image repetition frequency: 50 Hz Image repetition frequency:
50 Hz
Display: 1024x768 OLED color Display:
1024x768 OLED color
Screen color modes: Black Hot, White Hot, Red Hot, Iron, Saturated Screen color modes:
Black Hot, White Hot, Red Hot, Iron, Saturated
Field of view (°): 7,5x5,7 ° Field of view (°):
7,5x5,7 °
Minimum focus range (m): 1 Minimum focus range (m):
1
Least magnification: 3,4 Least magnification:
3,4
Utmost magnification: 13,6 Utmost magnification:
13,6
Working / storage temperature: -20℃- +50℃ / -30℃- +60℃ Working / storage temperature:
-20℃- +50℃ / -30℃- +60℃
Magnification: 3,4 - 13,6x Magnification:
3,4 - 13,6x
Lens: 35 mm, manual focus Lens:
35 mm, manual focus
Old article number: IRAFL35R Old article number:
IRAFL35R
Sensor: ceramic VOX detector 384x288, 12 µm-es pixel size, NETD <= 40 mK Sensor:
ceramic VOX detector 384x288, 12 µm-es pixel size, NETD <= 40 mK
Color: black Color:
black
In the box: thermal, USB-C charging cable, AC power supply, wrist strap, neck strap, lens cleaning cloth, user's manual, warranty card, 2 pcs of battery In the box:
thermal, USB-C charging cable, AC power supply, wrist strap, neck strap, lens cleaning cloth, user's manual, warranty card, 2 pcs of battery
Rangefinder: LRF Rangefinder:
LRF
Weight (g): 400 Weight (g):
400
Shock resistance: fall resistance 1 m Shock resistance:
fall resistance 1 m
Operating time: up to 6 hours with 1 battery (2 pcs as accessory) = 12 hours Operating time:
up to 6 hours with 1 battery (2 pcs as accessory) = 12 hours
Water resistance: IP67 Water resistance:
IP67
Product type: Thermal camera, Nightvision Product type:
Thermal camera, Nightvision
EAN code: 6973202300848 EAN code:
6973202300848
Type: Monocular Type:
Monocular
