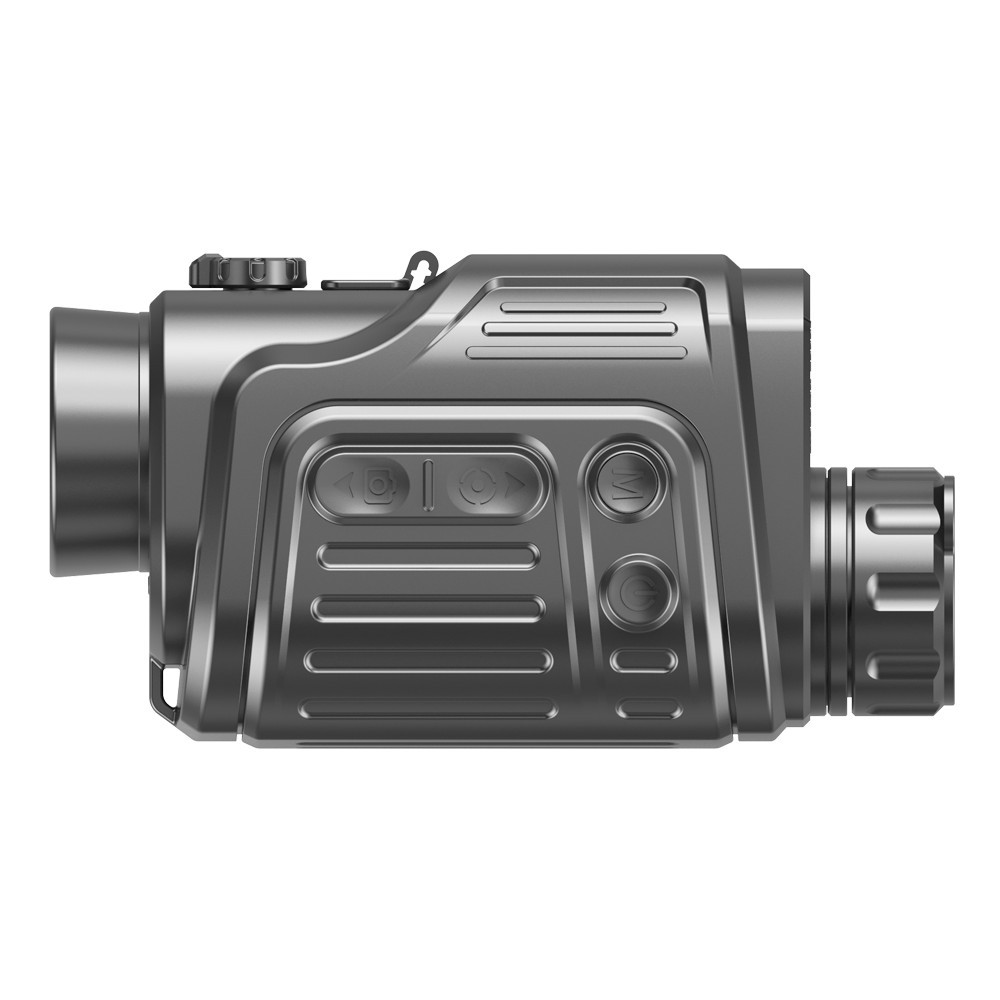

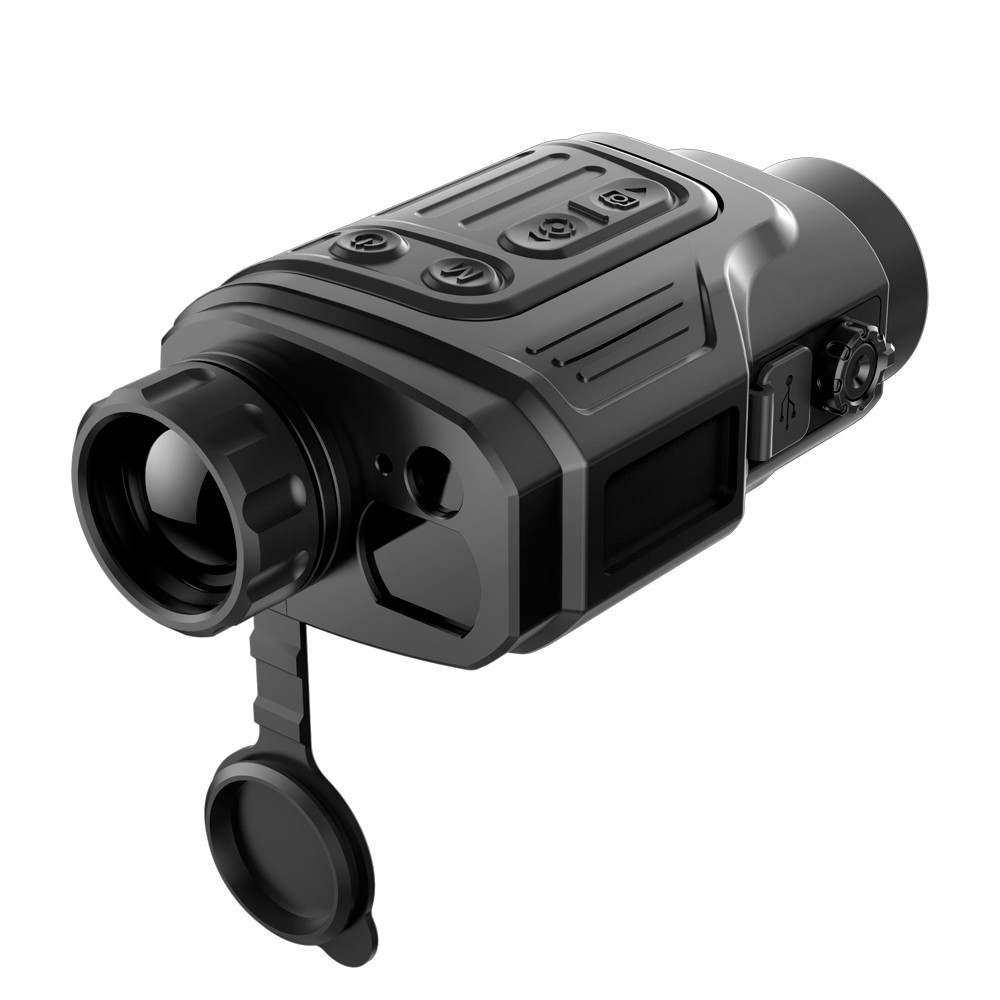

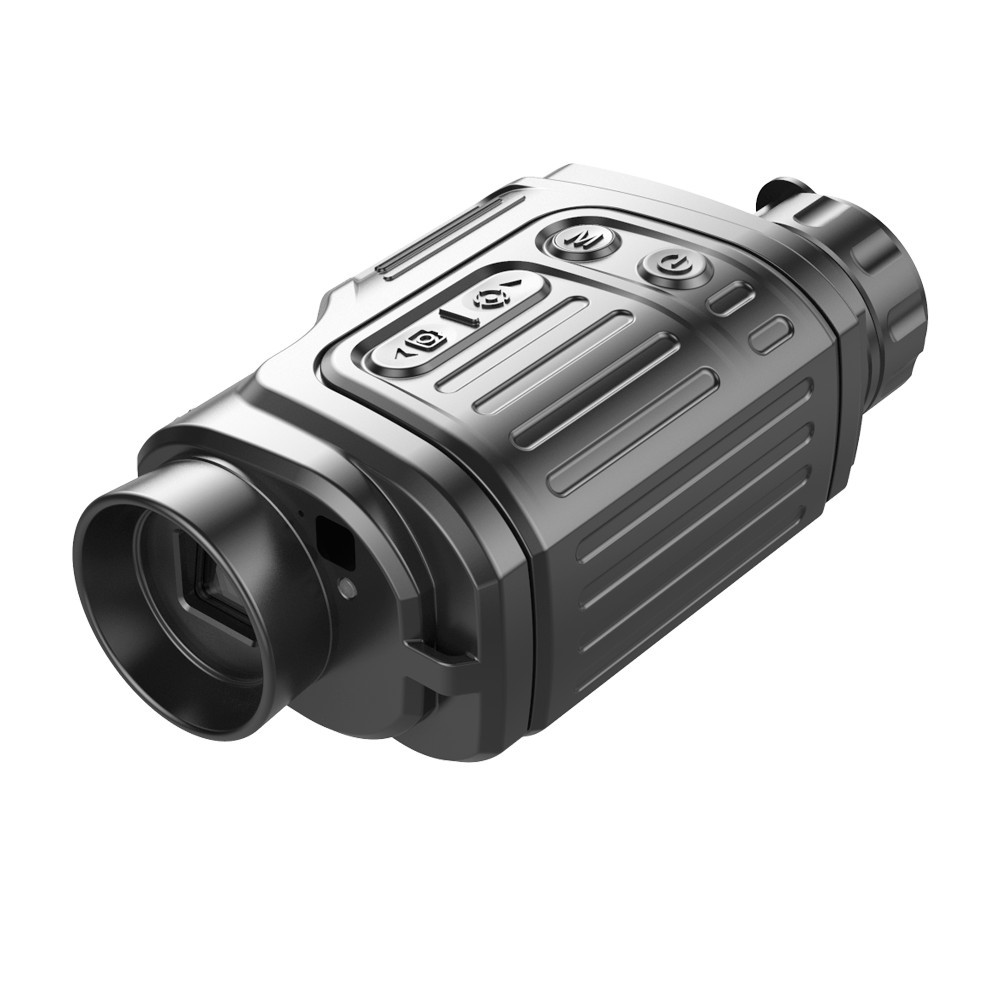

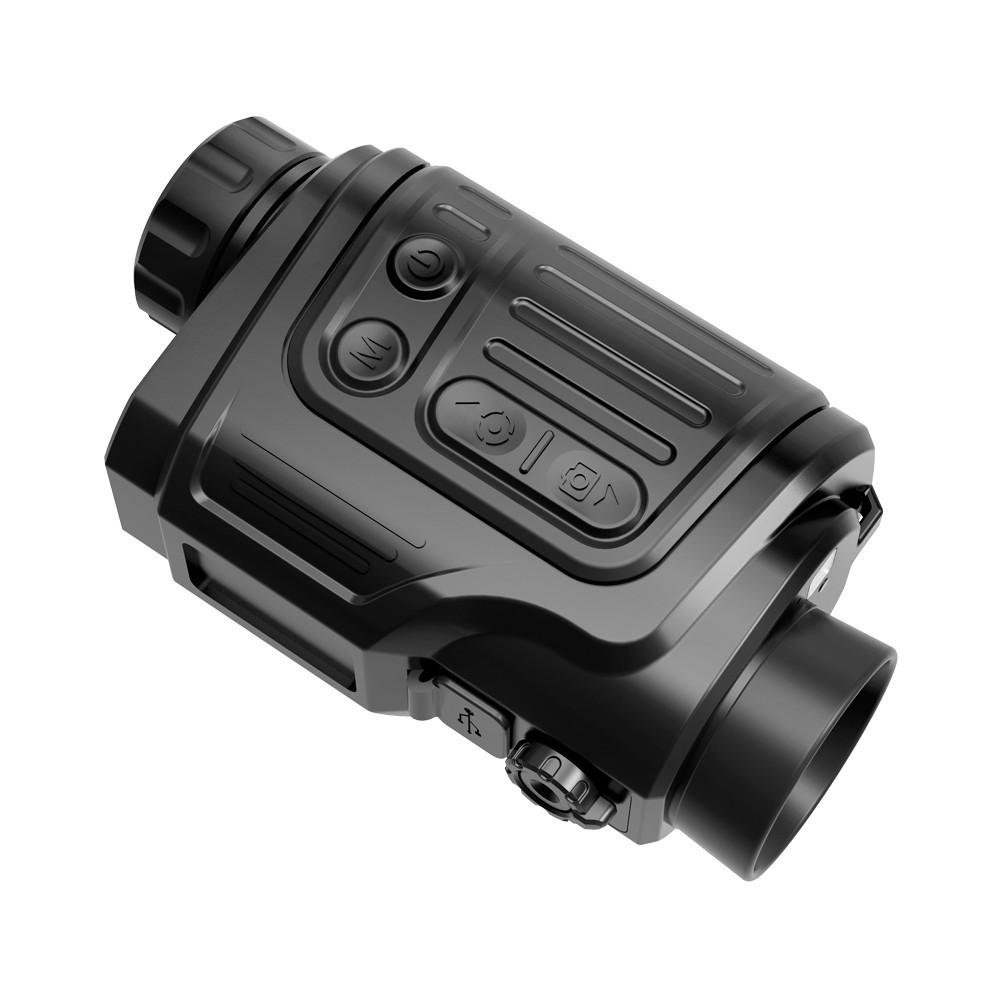

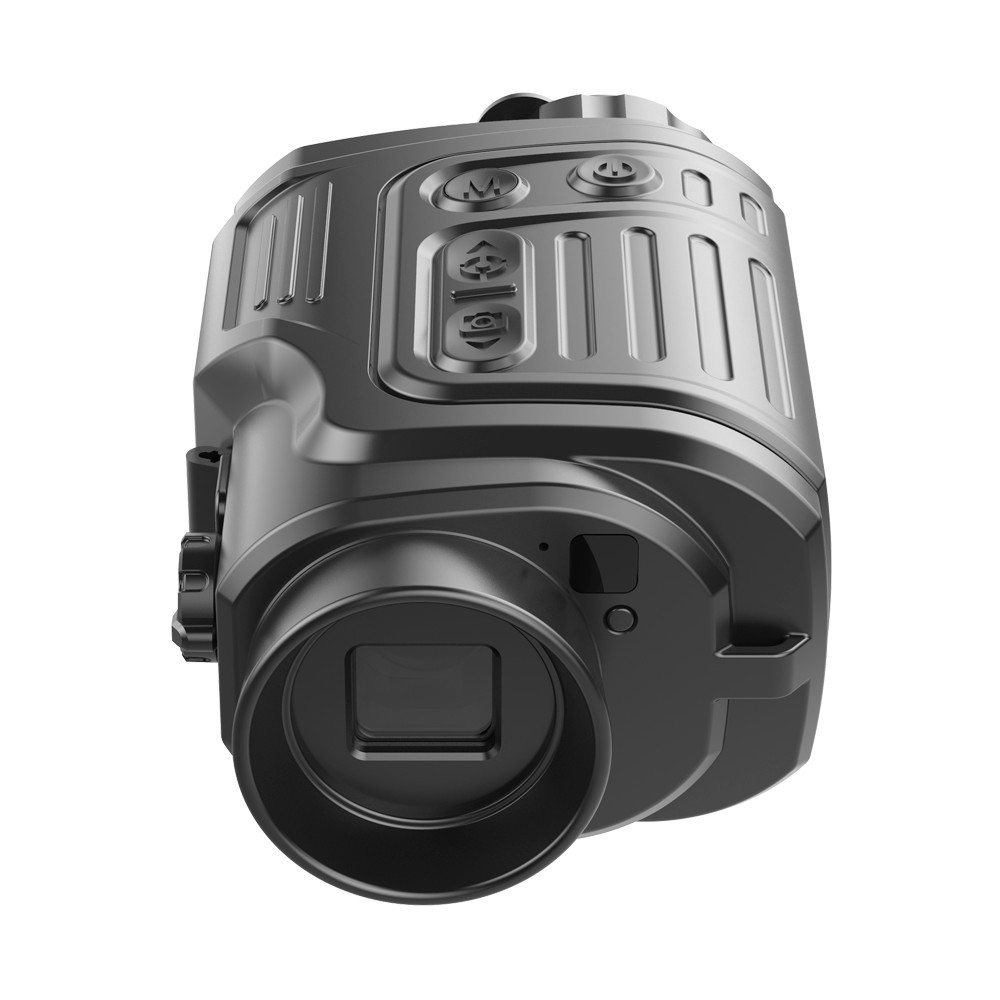

InfiRay Finder FH 25R LRF thermal monocular with rangefinder

Article No.:
IRAFH25R

Please consult with legal authorities about the usability for hunting purposes!

Thermal sensor, The smaller the value the more detail the picture has.: 640x512 12μm Thermal sensor:
640x512 12μm
Thermal sensor NETD:
40 mK
Magnification interval (x):
1.5 – 6
Horizontal field of view (°), One of the most important value when choosing the proper thermal camera. Bigger values are better for short distance. Less values are better for great distances.: 17.5 Horizontal field of view (°):
17.5
User's Guide (HUN), A linkre kattintva letölthető a magyar nyelvű használati útmutató.:

Hungarian version

User's Guide (HUN):
Thermal sensor:
640x512 12μm
2 501.34 EUR
Details

Meet Finder Series






The Finder series products are light and easy to carry, especially suitable for one-handed operation  that can be put in a pocket anytime and anywhere. The compact design makes the Finder the best  choice for outdoor investigation.












  • High Image Quality



The advanced image processing ability of the InfiRay detector,  which has high performance electronics and optimized  infrared optics, creates excellent image clarity and provides  better detection and classification, both in day and night.








  • 12 µm Thermal Imaging Sensor



High performance 12 μm pixel pitch  detectors are embedded. Powerful objective lens in combination with a 12 µm professional grade thermal imaging sensor provides exceptional detection capabilities. A standard 1,7 m (5.58 ft) tall object can be detected at a 1300 m (1420 yds) distance in complete darkness.












  • Long Detection Range 1298 m



The powerful objective lens combined with a 12 μm  professional grade thermal imaging sensor provides  exceptional detection capabilities.









  • High Image Frequency 50 Hz




The 50 Hz refresh rate guarantees that you will  capture every moment that you are interested in.

















  • HD Micro Display












1280×960 high-resolution  internal display offers sharp image  and vivid colors.










  • Integrated Laser Rangefinder (LRF) 600m












The Finder series has a built-in laser ranging module, which helps to  quickly and accurately capture and display the target distance. The  ranging accuracy is ± 1 m and the maximum ranging distance is 600 m. Accurate distance readings help to quickly assess the size of territory, distance and relief. Integrated, precision laser rangefinder provides accurate rangefinding, it provides both single ranging and continuous ranging modes. Continuous  ranging can be quickly activated to adapt to the constantly changing  distance of the observed object.




















  • Pocket Machine








The compact size and light weight makes it easy to  carry and operate with one hand. It can be put into  the pocket anytime and anywhere. The Finder weighs  only 320 g,which is lighter than conventional  rangefinders, but much more powerful.



Compact size of thermal imager makes it an optimal portable unit for scouting and spotting.












  • Infrared Sensor Switch









By sensing the reflection, the infrared sensor switch control  the display on and off automatically which saves power and extends the device's operation time. It also has the  advantage of high sensitivity, strong anti-interference ability  and stable working performance.








  • Built-in Video Recorder and  WiFi Connection











With built-in storage space , Finder series support to save the interesting moments in the form of photos or video for sharing with colleagues, friends and family. It can store many hours of recorded video and tens of photos.












  • App Supported



Built in Wi-Fi module provides connectivity of Finder with Android or iOS smartphones or tablets. The smartphone and thermal imager combination offers a set of unique features such as direct image streaming, downloading and sharing recorded files, firmware.




  • Built-in Accelerometer and  Digital Compass



Built-in accelerometer and digital compass improves  accuracy by precisely identifying cant and angles.





Info
Article number: IRAFH25R Article number:
IRAFH25R
When do I get it?: Already on its way When do I get it?:
Already on its way
Data storage: 16 GB built-in memory Data storage:
16 GB built-in memory
Base magnification (x): 1,5 Base magnification (x):
1,5
Tripod thread: 1/4 coll Tripod thread:
1/4 coll
Digital zoom: 1.5x / 2x / 2.5x / 3x / 3.5x / 4x Digital zoom:
1.5x / 2x / 2.5x / 3x / 3.5x / 4x
Diopter compensation: adjustable - 4 - +5 dpt Diopter compensation:
adjustable - 4 - +5 dpt
Other properties:

Laser rangefinder up to 600 m
NETD: 50mk@30℃;
Live video via WiFi (active when battery saving mode is off);
photo and video mode;
PIP mode

Other properties:

Laser rangefinder up to 600 m
NETD: 50mk@30℃;
Live video via WiFi (active when battery saving mode is off);
photo and video mode;
PIP mode

Energy supply: built-in Li-ion, rechargeable Energy supply:
built-in Li-ion, rechargeable
Detection distance (Information data, that shows the distance an object can be seen from as one pixel. It's just one pixel without shape and contours. The distance, from that the object, game or human body can be identificate with it's shape, is usually much shorter.):

Detection:
Human (1.7 x 0.5 m): 1298 m

Detection distance:

Detection:
Human (1.7 x 0.5 m): 1298 m

Type: Egyszemes kereső Type:
Egyszemes kereső
Video recording: Yes Video recording:
Yes
Manufacturer: InfiRay Manufacturer:
InfiRay
Warranty: 3-year general warranty for the device, 10 years for the sensor, 2 years for the battery Warranty:
3-year general warranty for the device, 10 years for the sensor, 2 years for the battery
Type: Monocular Type:
Monocular
Image repetition frequency: 50 Hz Image repetition frequency:
50 Hz
Display: 1280x960 LCOS color Display:
1280x960 LCOS color
Screen color modes: Black Hot, White Hot, Red Hot, Iron, Saturated Screen color modes:
Black Hot, White Hot, Red Hot, Iron, Saturated
Field of view (°): 17.5° x 14.0° Field of view (°):
17.5° x 14.0°
Minimum focus range (m): 1 Minimum focus range (m):
1
Least magnification: 1.5 Least magnification:
1.5
Utmost magnification: 6 Utmost magnification:
6
Working / storage temperature: -20℃- +50℃ / -30℃- +60℃ Working / storage temperature:
-20℃- +50℃ / -30℃- +60℃
Magnification: 1,5x Magnification:
1,5x
Lens: 25 mm , manual focus Lens:
25 mm , manual focus
Old article number: IRAFH25R Old article number:
IRAFH25R
Spectral range: 8-14 μm Spectral range:
8-14 μm
Sensor: ceramic VOX detector 640x512, 12 µm-es pixel size, NETD <= 40 mK Sensor:
ceramic VOX detector 640x512, 12 µm-es pixel size, NETD <= 40 mK
Color: black Color:
black
In the box: thermal, USB-C charging cable, AC power supply, wrist strap, neck strap, lens cleaning cloth, user's manual, warranty card In the box:
thermal, USB-C charging cable, AC power supply, wrist strap, neck strap, lens cleaning cloth, user's manual, warranty card
Weight (g): 320 Weight (g):
320
Shock resistance: fall resistance 1 m Shock resistance:
fall resistance 1 m
Operating time: up to 6 hours Operating time:
up to 6 hours
Water resistance: IP66 Water resistance:
IP66
Product type: Thermal camera, Nightvision Product type:
Thermal camera, Nightvision
EAN code: 6973202301302 EAN code:
6973202301302
Type: Monocular Type:
Monocular
