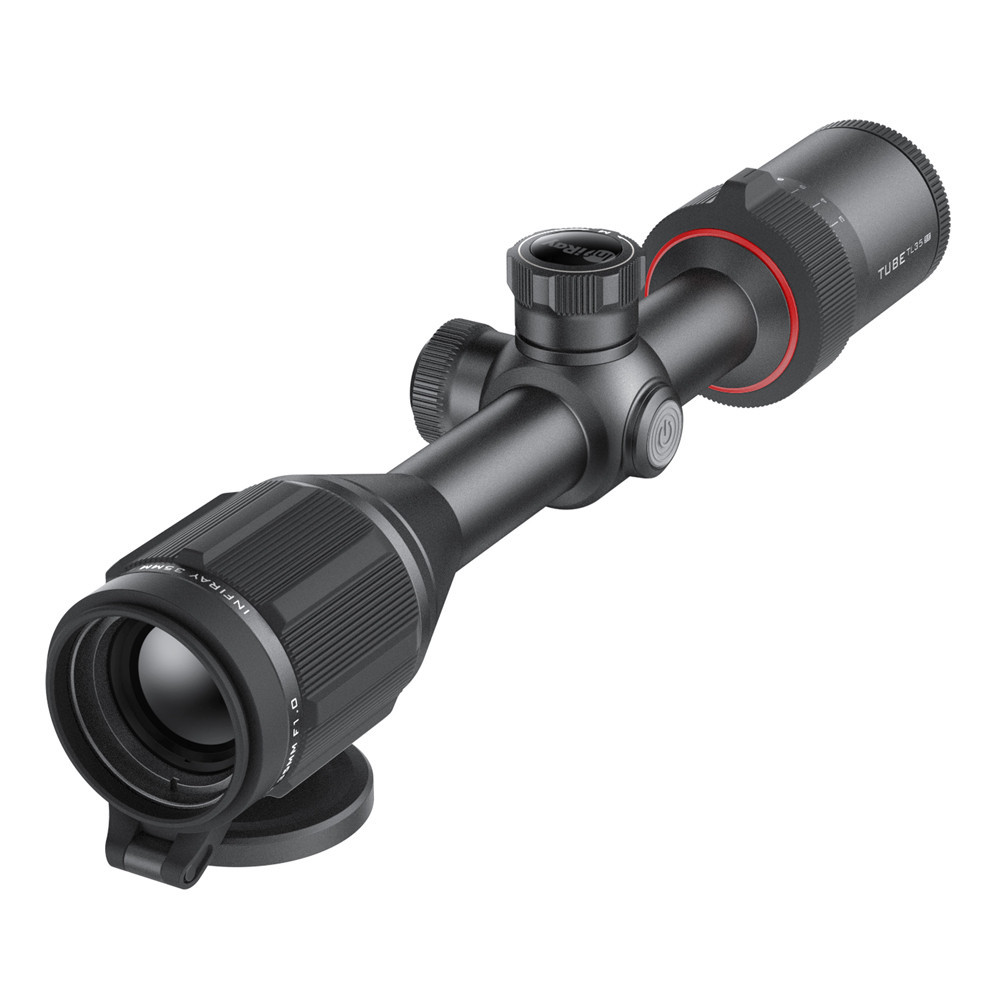

InfiRay Tube TL25 SE thermal riflescope
InfiRay Tube TL25 SE thermal riflescope
2 030.01 EUR
1 868.35 EUR

InfiRay Tube TL25 SE thermal riflescope

Please consult with legal authorities about the usability for hunting purposes!

Riflescope front lens diameter
25 mm
Riflescope magnification
2.0 - 8.0x
Thermal sensor
384x288 12µm
Thermal sensor NETD
25 mK
Magnification interval (x)
2.0 – 8.0
Horizontal field of view (°)
10.5
Horizontal filed of view
10.5
User's Guide (HUN)
Céltávcső frontlencse átmérő
25 mm
Thermal sensor
384x288 12µm
In stock
8
2 030.01 EUR
1 868.35 EUR
Discount: 8
Saving 161.66 EUR
We recommend the following product(s) as accessories
Details

Meet with TUBE SE Series

12um Sensor with NETD <25mK

TUBE SE is equipped with the 12um sensor with NETD < 25mK,which is lighter, lower power consumption, ensures perfect detailed recognition even in the hardest weather conditions when thermal contrast is low.




Easier to Carry

TUBE SE has a body that only weighs 720g which is 28% less compared to the normal 1kg thermal riflescope.




Easier to Use

Zoom Ring

TUBE SE adopts a zoom ring to adjusting magnification which is consistent with the using habit of the day scope. The zoom ring is made of silicone material, which is soft and comfortable, easy to twist and anti-slip.




Controller Controls Over 90% Functions

Over 90% functions can be completed by the controller of TUBE SE, the operation is simplified and to bring your more convenience during the night.




Easier to Shoot

    Bluetooth LRF

TUBE SE is able to provide the distance measurement on the screen when the LRF is connected to the device through Bluetooth, earning you more chances to win in every shooting.




11h+ Working time

The working time of TUBE SE is up to 11 hours to keep your hunting going all night, so you don't need to take the power pack and extra charging accessories.


Built-in Mic

TUBE SE is equipped with a MIC function, therefore customers can record the voice when recording.


Info
Data storage
32 GB built-in memory
Base magnification (x)
2,0
Material
aluminium
Eye relief
50 mm
Plugs
USB-C charging and data transfer
Digital zoom
1 - 4x
Diopter compensation
-5 - +4 dpt
Other properties

Photo and video recording (24 hours video or 20.000 picture)
Video output
WiFi

Energy supply
built-in, rechargeable battery 3350 mAh
Detection distance '>
Human (1.7 x 0.5 m): 1800 m
Manufacturer
InfiRay
Warranty
3-year general warranty for the device, 10 years for the sensor, 2 years for the battery
Image repetition frequency
50 Hz
Display
1536x1080 AMOLED 0,49 inch
Screen color modes
5 modes
Exit pupil
6 mm
Tube diameter (mm)
25,4
Field of view (°)
10 .5 × 7.4
Least magnification
2.0
Utmost magnification
8.0
Shock resistance
6000 J
Sizes
310x70x70
Working / storage temperature
-20 - +50
Lens
35 mm
Sensor
384x288 pixel, uncooled Vox microbolometer , 12 µm pixel size; NETD: <= 25 mK
Color
black
In the box

thermal riflescope, 2 pcs of 25,4 mm mounting rings, soft case with shoulder strap, charger and video cable, lens cleaning cloth

Weight (g)
750
Operating time
up to 11 hours
Water resistance
IP67
Product type
Thermal camera, Nightvision
Riflescope magnification
2.0 - 8.0x
Article No.
IRATL25SE
Akkumulátor használat

A dupla akkumulátoros Infiray Tube céltávcsövek töltése, használata:

A készülék két akkumulátorral rendelkezik: egy beépített fő- és egy üzemidő növelő cserélhető egységgel. A monitoron a bal oldali akku- ikon a cserélhető, a jobb oldali a beépített akku töltöttségét jelzi. Működés során a céltávcső szoftvere minden indításkor a főakkumulátorról indul, ellenőrzi a cserélhető akkumulátor töltöttségét, majd átvált annak használatára, így először a cserélhető akkumulátort meríti, csak ezután a beépített akkumulátort.
Ha a beépített főakkumulátor fel van töltve de a cserélhető már lemerült, a készülék rövidebb üzemidővel ugyan, de működik tovább. FONTOS: USB-C kábelen keresztül csak a beépített akkumulátor töltődik, a kiegészítő cserélhető akkumulátor a mellékelt külső töltőben töltendő! Ennek elmulasztása természetesen rövidebb üzemidőhöz vezet.
Fordított esetben, feltöltött cserélhető, de lemerült beépített főakkumulátorral viszont a készülék nem helyezhető üzembe, be sem töltődik a szoftver, ami a kiegészítő akkumulátorra váltana át, ezért mindig ügyeljen a készülék beépített akkumulátorának – jobb oldali ikon - töltöttségére!
