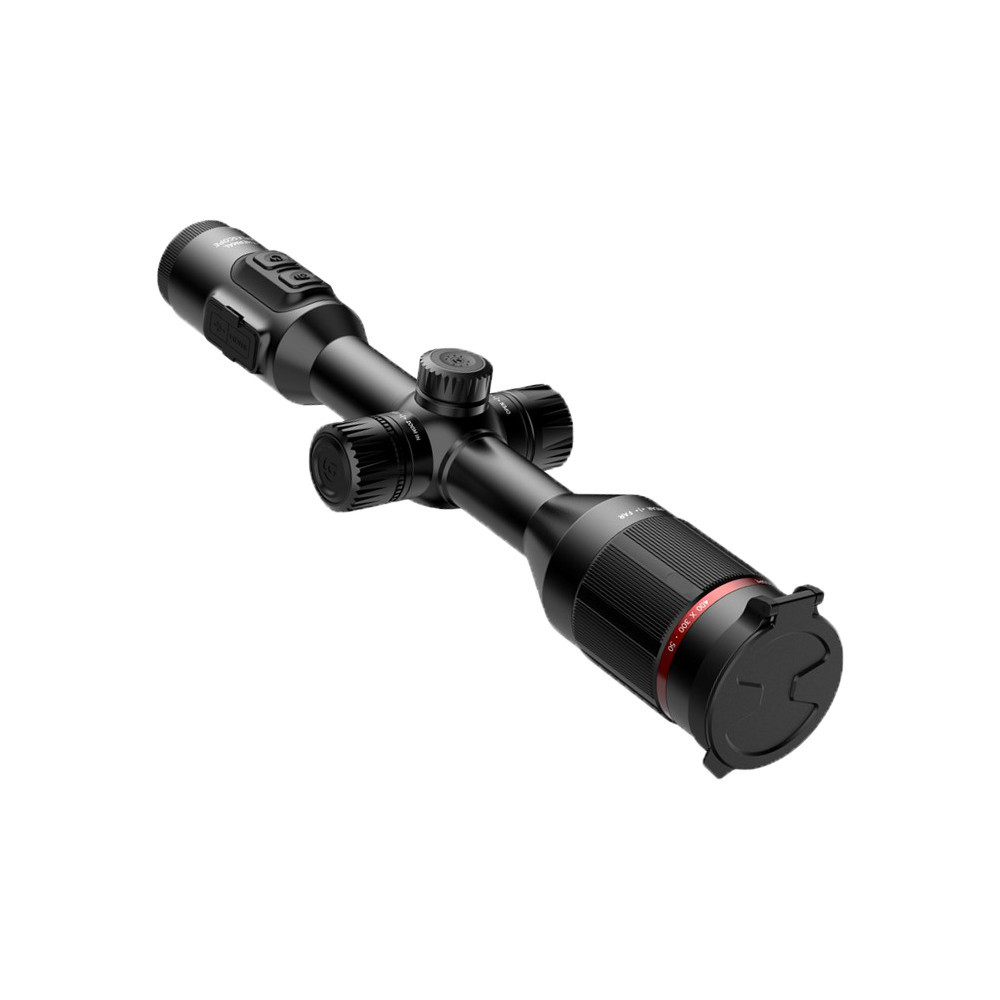

Guide TU620 thermal riflescope

Article No.:
GUITU620

Please consult with legal authorities about the usability for hunting purposes!

Riflescope magnification:
1.4 - 11.2x
Thermal sensor:
640x480 12μm
Thermal sensor NETD:
30 mK
Magnification interval (x):
1.4 – 11.2
User's Guide (HUN) :
Thermal sensor:
640x480 12μm
3 525.25 EUR
Details

Classical design, more powerful

Full-color OLED display

1024 x 768 Full-color OLED, High contrast , image details boost, Improving viewing comfort.

Smooth Zoom For Flexible Searching

Long press the up/down button to smoothly zoom in and zoom out. Make the search more flexible and pinpoint the target more quickly while hunting.

Designed for Professional Hunters

No Need Conversion. Reticle density can be zoomed in synchronously with the image, and the reticle line width can be maintained at any magnification, without conversion, avoiding errors, and helping hunters improve shooting accuracy.

Multiple Color Palettes to Highlight the Target

Six color palettes: white hot, black hot, red hot, green hot, iron red, blue heat, Support one-button switch to identify the location of the target instantly, helping to achieve all-weather observations.

Multiple scene modes, Highlight Target Clearly

“Enhance/Highlight/Natural” can be quickly switched by one button, the image can be adaptively adjusted for different scenes , “Enhance/Highlight” can effectively reduce image impurities to highlight the target.

Photo and Video Recording

Support photos and videos, Recording wonderful moments at any time. Can share to your social media by APP.

10 hours Super Long Battery Life

Support 10 hours super long operation time. TU Series have dual battery system which consist of internal battery and external battery. External battery can be replaced without power-off , ensuring all-day operations.

IP67 Protection Rating, Rugged and Durable

With IP67 waterproof-rated for protection from heavy-rainfall, dust, and impact. Working temperature is -30°C~50°C ,suitable for all kinds of harsh weather. It also passed UN38.3 battery certification, RoHS, CE, FCC certification, etc. Quality guaranteed.

Info
Article number:
GUITU620
Data storage:
16 GB built-in memory
Plugs:
USB-C, Micro HDMI
Digital zoom:
1-8x
Detection distance :
Human (1.7 x 0.5 m): 1000m; car (2.3 x 2.3 m): 2400m
Manufacturer:
Guide
Warranty:
3 years manufacturer, 10 years for the sensor
Image repetition frequency:
50 Hz
Display:
1024x768 color OLED, 0,39''
Screen color modes:
6 color modes
Tube diameter (mm):
30
Field of view (°):
17.46°x13.14°
Least magnification:
1.4
Utmost magnification:
11.2
Shock resistance:
500G/1ms
Sizes:
367 x 107 x 69mm
Working / storage temperature:
-30 - +50°C / -45 - +70°C
Lens:
25 mm
Old article number:
GUITU620
Sensor:
640x480 pixels, 12 µm pixel size; NETD<=30mK
Color:
black
In the box:
thermal camera scope, 2 x 30 rings for mounting, soft-walled, strong carrying case with shoulder strap, charger and video cable, lens cleaning cloth
Weight (g):
980
Water resistance:
IP67
Product type:
Thermal camera, Nightvision
EAN code:
6970883550364
Riflescope magnification:
1.4 - 11.2x
