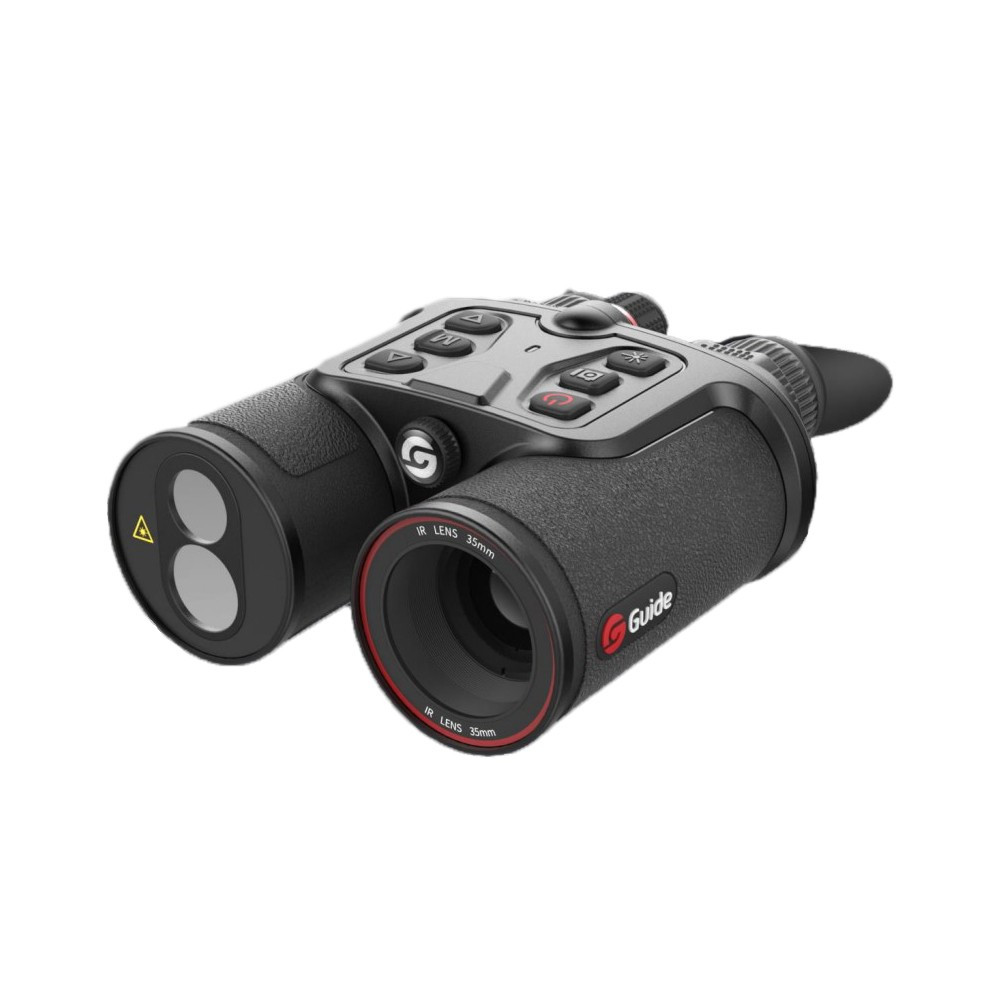

Guide TN650 Thermal binoculars

Article No.:
GUITN650

Please consult with legal authorities about the usability for hunting purposes!

Thermal sensor:
640x480 12μm
Thermal sensor NETD:
30 mK
Magnification interval (x):
2.8 – 22.4
Horizontal field of view (°):
8.8°
User's Guide (HUN):
Thermal sensor:
640x480 12μm
On stock
2 673.64 EUR
2 352.80 EUR
Saving 320.84 EUR
Details

Handheld Thermal Binoculars

TN Normae Series follows classic binocular design, greatly reducing the fatigue feeling of long-time observation. It adopts high-sensitivity VOx uncooled IR detector, bring you high quality imaging and immersive observation experience with full color OLED 1024×768 high-definition display. A variety of functions to meet all your needs, such as taking photos, videos, WIFI, laser ranging, GPS, compass, etc.



  • 640×480 IR resolution
  • 50mm/F1.2 Focal Length
  • ≤30mK NETD
  • 2.8X~22.4X Magnification

Ergonomic design Easy observation

Binocular design, greatly reducing the fatigue feeling of long-time observation; Adjustable interpupillary distance between 60mm~70mm, Catering to different group of people; Ergonomic design,raised buttons can be quickly recognized by touch even in total darkness.

Quick location,All new experience

In the dark, laser ranging ensures accurate location with distance information.

High Quality Imaging In Day and Night

Up to 640 × 480 VOx uncooled IR resolution and 50Hz image frame rate, ensure the observation of moving target smoothly.

Full-color OLED display

1024 x 768 Full-color OLED, High contrast, image details boost, Improving viewing comfort.

Well-designed PIP mode, highlighting the target

PIP mode, Identify the location of the target instantly by PIP Mode even in outdoor.

Smooth Zoom For Flexible Searching

Long press the up/down button to smoothly zoom in and zoom out. Make the search more flexible and pinpoint the target more quickly.

Multiple Color Palettes to Highlight the Target

• Six color palettes: white hot, black hot, red hot, green hot, iron red, blue heat.

• Support one-button switch to identify the location of the target instantly, helping to achieve all-weather observations.

Multiple scene modes,Highlight Target Clearly

“Enhance/Highlight/Natural” can be quickly switched by one button, the image can be adaptively adjusted for different scenes , “Enhance/Highlight” can effectively reduce image impurities to highlight the target.

Photo and Video Recording

Support photos and videos, recording wonderful moments at any time. Realize remote control, live image and video transmission via WIFI connection, can share to your social media by APP.

IP66, 1-meter Drop test

With IP66 waterproof-rated for protection from heavy-rainfall, dust, and impact. Working temperature is -30°C~50°C ,suitable for all kinds of harsh weather. It also passed UN38.3 battery certification, RoHS, CE, FCC certification, etc. Quality guaranteed.

Info
Article number:
GUITN650
Data storage:
16 GB built-in memory
Base magnification (x):
2.8
Tripod thread:
1/4 coll
Plugs:
micro HDMI output, USB Type C
Digital zoom:
1X-8X
Diopter compensation:
-4 -+2
Other properties:

photo, video

PIP, hotspot tracking

built-in WiFi, GPS, compass, gyroscope, Bluetooth

UN38.3 (Battery certificate), RoHS, CE, FCC,   EAC

Energy supply:
rechargeable 2x18650 battery
Detection distance:
Detection (m) car 3300 Human 2000 recognition (m) car 2000 Human 1000
Type:
Kétszemes kereső
Manufacturer:
Guide
Warranty:
30 months manufacturer's warranty
Type:
Binoculars
Image repetition frequency:
50 Hz
Display:
1024×768 color OLED
Exit pupil:
16.4mm
Field of view (°):
8.8°×6.6°
Least magnification:
2.8
Utmost magnification:
22.4
Sizes:
162×146×70mm
Working / storage temperature:
-10 - +50°C / -30°- +60°C
Lens:
50mm/F1.2, manual focus
Old article number:
GUITN650
Spectral range:
8 - 14 µm
Sensor:
640x480 @12μm, VOx, NETD ≤30mk
Color:
black
In the box:
thermal camera, batteries, mains charger, wrist strap, USB-A - USB-C cable, Micro HDMI cable, soft case, warranty card, user's manual
Rangefinder:
LRF
Weight (g):
880
Shock resistance:
fall resistance 1 m
Operating time:
up to 6 hours
Water resistance:
IP66
Product type:
Thermal camera, Nightvision
When do I get it?:
Orderable
EAN code:
6970883550425
Type:
Binoculars
