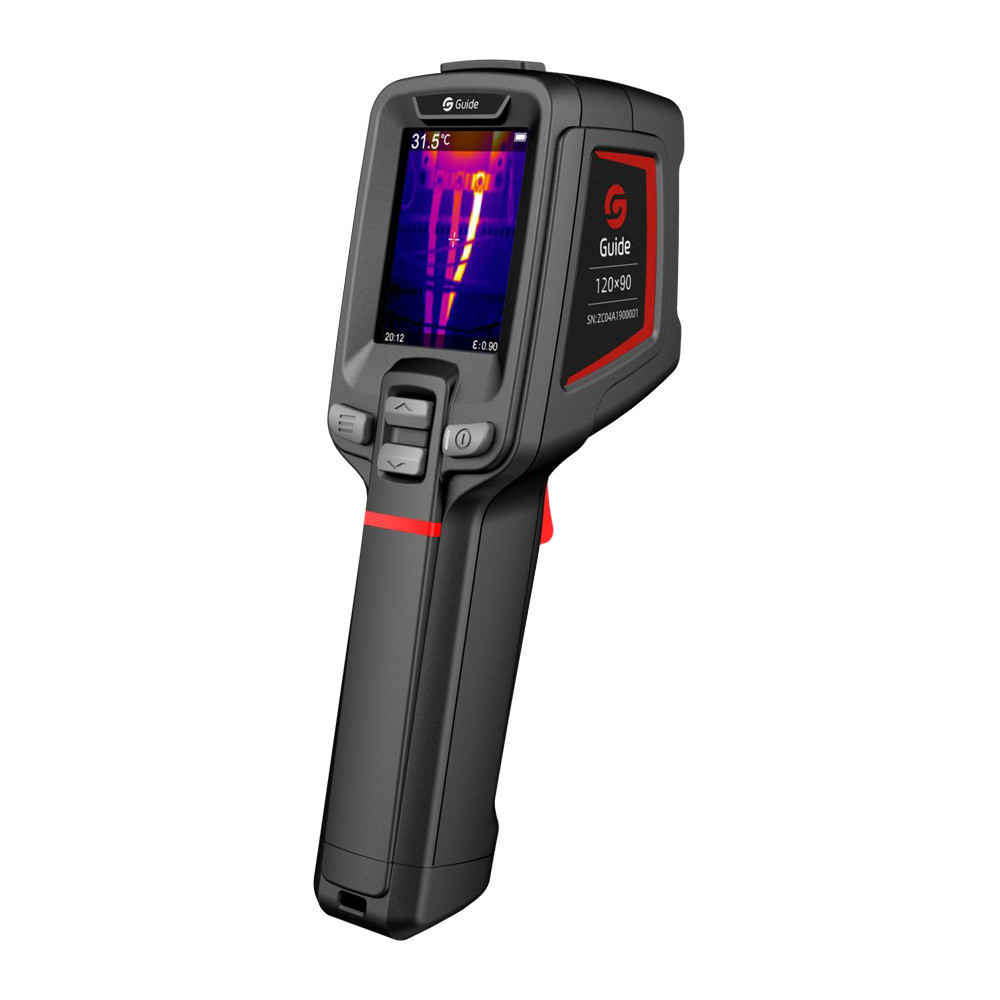

Guide T120V Thermal Camera

Article No.:
GUIT120V

For entry level industrial purposes

Equipped also with CMOS camera

Thermal sensor:
120x90 17μm
Thermal sensor NETD:
60 mK
Magnification interval (x):
1 – 1
User's Guide (HUN):
Thermal sensor:
120x90 17μm
On stock
342.73 EUR
Details

Entry-level Portable Thermal Camera

T120 Entry-level Thermal Image Camera is an affordable temperature measuring tool widely used for building diagnostics, HVAC inspections, electrical system inspections and more. It perfectly overcomes the shortcomings of the single spot infrared thermometers and helps work smarter, safer and faster. Equipped with Guide’s selfdeveloped 120x90 WLP IR modules, T120 series thermal cameras can display radiometric data of 10,800 pixels instantly which helps quickly detect large areas and pinpoint fault spots accurately.



  • 120x90IR resolution
  • 8HrsOperating time
  • 1 secondTurn on
  • IP54Encapsulation
  • Digital CMOS camera, IR, VIS and PIP

• Boot-up in 1 second Boot up and display fully radiometric image instantly Full screen max & min temperature alarm. 2.4 inch Large Display , 240x320 pixel Color LCD

• Good-handle Buttons Ergonomic design Easy to operate even wear the gloves. Trigger button for photo taking

• 8-hour Battery Life Low power consumption Large capacity battery. 2-hour Quick Charge ,USB Type-C Interface High power quick charge

• IR/Visible/Laser Indicator Pinpoint targets precisely. Rugged Design, 2-meter Drop Test, IP54 Encapsulation

Info
Article number:
GUIT120V
Data storage:
16 GB TF (micro USB) card, up to 32 GB compatible
Plugs:
USB-C
Digital zoom:
-
Other properties:

with CMOS camera and LED flash

Color palettes: White Hot, Iron Red, Hot Iron, Hot Iron, Arctic, Rainbow 1, Rainbow 2
Settings: temperature, date and time format
battery can be charged in the camera or outside, charging time 2.5 hours in the camera, 5 hours in external charger
automatic turning off, sleep mode
maximum humidity <95%
Certificate: CE, FCC, ROHS




Energy supply:
built-in, rechargeable Li-ion battery
Type:
Kézi kereső
Video recording:
-
Manufacturer:
Guide
Warranty:
2 years manufacturer's warranty
Type:
Handheld camera
IFOV:
7.6 mrad
Image repetition frequency:
25 / 9 Hz
Display:
320x240 pixel 2.4'',TFT
Screen color modes:
6 color modes
Field of view (°):
50°x38°
Least magnification:
1
Utmost magnification:
1
Sizes:
194x61.5x76 mm
Measurement properties:

Temperature ranges: -20°C - 400°C

Accuracy: +/- 2°C, or +/- 2 % for ambient temperatures between 15 and 30°C, for object temperatures above 0°C



Working / storage temperature:
-10 - +50 / -40 - +70°C
Magnification:
1x
Lens:
2.28 mm, F1.13, fix focus
Old article number:
GUIT120V
Spectral range:
7.5 - 14 μm
Sensor:
120x90 pixel uncooled VOx UFPA microbolometer , 17 μm pixel size, NETD: 60 mK,
Color:
grey
In the box:
camera, wrist strap, 16 GB TF card, battery charger, USB-C cable, user's manual
Supported photo resolutions:
.jpeg 120x90, 320x240 CMOS
Supported video resolutions:
-
Weight (g):
350
Shock resistance:
fall resistance 2 m
Operating time:
8 hours
Water resistance:
IP54
Product type:
Thermal camera, Nightvision
When do I get it?:
Already on its way
EAN code:
6970883550074
Type:
Handheld camera
