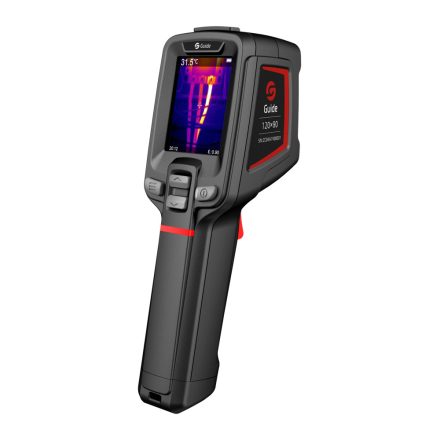

Guide T120 Thermal Camera

Article No.:
GUIT120

For entry level industrial purposes

Thermal sensor, The smaller the value the more detail the picture has.: 120x90 17μm Thermal sensor:
120x90 17μm
Thermal sensor NETD:
60 mK
Magnification interval (x):
1 – 1
User's Guide (HUN), A linkre kattintva letölthető a magyar nyelvű használati útmutató.:

Hungarian version

 User's Guide (HUN):

Hungarian version

Thermal sensor:
120x90 17μm
Guide T120 Thermal Camera
249.68 EUR
Details

Entry-level Portable Thermal Camera

T120 Entry-level Thermal Image Camera is an affordable temperature measuring tool widely used for building diagnostics, HVAC inspections, electrical system inspections and more. It perfectly overcomes the shortcomings of the single spot infrared thermometers and helps work smarter, safer and faster. Equipped with Guide’s selfdeveloped 120x90 WLP IR modules, T120 series thermal cameras can display radiometric data of 10,800 pixels instantly which helps quickly detect large areas and pinpoint fault spots accurately.



  • 120x90IR resolution
  • 8HrsOperating time
  • 1 secondTurn on
  • IP54Encapsulation

• Boot-up in 1 second Boot up and display fully radiometric image instantly Full screen max & min temperature alarm. 2.4 inch Large Display , 240x320 pixel Color LCD

• Good-handle Buttons Ergonomic design Easy to operate even wear the gloves. Trigger button for photo taking

• 8-hour Battery Life Low power consumption Large capacity battery. 2-hour Quick Charge ,USB Type-C Interface High power quick charge

• IR/Visible/Laser Indicator Pinpoint targets precisely. Rugged Design, 2-meter Drop Test, IP54 Encapsulation

Info
Article number: GUIT120 Article number:
GUIT120
When do I get it?: Orderable When do I get it?:
Orderable
Data storage: 16 GB TF (micro USB) card, up to 32 GB compatible Data storage:
16 GB TF (micro USB) card, up to 32 GB compatible
Plugs: USB-C Plugs:
USB-C
Digital zoom: - Digital zoom:
-
Other properties: Color palettes: White Hot, Iron Red, Hot Iron, Hot Iron, Arctic, Rainbow 1, Rainbow 2
Settings: temperature, date and time format
battery can be charged in the camera or outside, charging time 2.5 hours in the camera, 5 hours in external charger
automatic turning off, sleep mode
maximum humidity <95%
Certificate: CE, FCC, ROHS



  Other properties:
Color palettes: White Hot, Iron Red, Hot Iron, Hot Iron, Arctic, Rainbow 1, Rainbow 2
Settings: temperature, date and time format
battery can be charged in the camera or outside, charging time 2.5 hours in the camera, 5 hours in external charger
automatic turning off, sleep mode
maximum humidity <95%
Certificate: CE, FCC, ROHS




Energy supply: built-in, rechargeable Li-ion battery Energy supply:
built-in, rechargeable Li-ion battery
Type: Kézi kereső Type:
Kézi kereső
Video recording: - Video recording:
-
Manufacturer: Guide Manufacturer:
Guide
Warranty: 2 years manufacturer's warranty Warranty:
2 years manufacturer's warranty
Type: Handheld camera Type:
Handheld camera
IFOV: 7.6 mrad IFOV:
7.6 mrad
Image repetition frequency: 25 / 9 Hz Image repetition frequency:
25 / 9 Hz
Display: 320x240 pixel 2.4'',TFT Display:
320x240 pixel 2.4'',TFT
Screen color modes: 6 color modes Screen color modes:
6 color modes
Field of view (°): 50°x38° Field of view (°):
50°x38°
Least magnification: 1 Least magnification:
1
Utmost magnification: 1 Utmost magnification:
1
Sizes: 194x61.5x76 mm Sizes:
194x61.5x76 mm
Measurement properties:

Temperature ranges: -20°C - 400°C
Accuracy: +/- 2°C, or +/- 2% for ambient temperatures between 15 and 30°C, for object temperatures above 0°C

 Measurement properties:

Temperature ranges: -20°C - 400°C
Accuracy: +/- 2°C, or +/- 2% for ambient temperatures between 15 and 30°C, for object temperatures above 0°C

Working / storage temperature: -10 - +50 / -40 - +70°C Working / storage temperature:
-10 - +50 / -40 - +70°C
Magnification: 1x Magnification:
1x
Lens: 2.28 mm, F1.13, fix focus Lens:
2.28 mm, F1.13, fix focus
Old article number: GUIT120 Old article number:
GUIT120
Spectral range: 7.5 - 14 μm Spectral range:
7.5 - 14 μm
Sensor: 120x90 pixel uncooled VOx UFPA microbolometer , 17 μm pixel size, NETD: 60 mK, Sensor:
120x90 pixel uncooled VOx UFPA microbolometer , 17 μm pixel size, NETD: 60 mK,
Color: grey Color:
grey
In the box: camera, wrist strap, 16 GB TF card, battery charger, USB-C cable, user's manual In the box:
camera, wrist strap, 16 GB TF card, battery charger, USB-C cable, user's manual
Supported photo resolutions: .jpeg 120x90 Supported photo resolutions:
.jpeg 120x90
Supported video resolutions: - Supported video resolutions:
-
Weight (g): 350 Weight (g):
350
Shock resistance: fall resistance 2 m Shock resistance:
fall resistance 2 m
Operating time: 8 hours Operating time:
8 hours
Water resistance: IP54 Water resistance:
IP54
Product type: Thermal camera, Nightvision Product type:
Thermal camera, Nightvision
EAN code: 6970883550081 EAN code:
6970883550081
Type: Handheld camera Type:
Handheld camera
