Guide PC210 Industrial thermal camera
Guide PC210 Industrial thermal camera
481.48 EUR

Guide PC210 Industrial thermal camera

Entry level pocket size for industrial purposes

Thermal sensor
256x192 12μm
Horizontal field of view (°)
56
Horizontal filed of view
56
User's Guide (HUN)
Thermal sensor
256x192 12μm
Available for order
481.48 EUR
Details

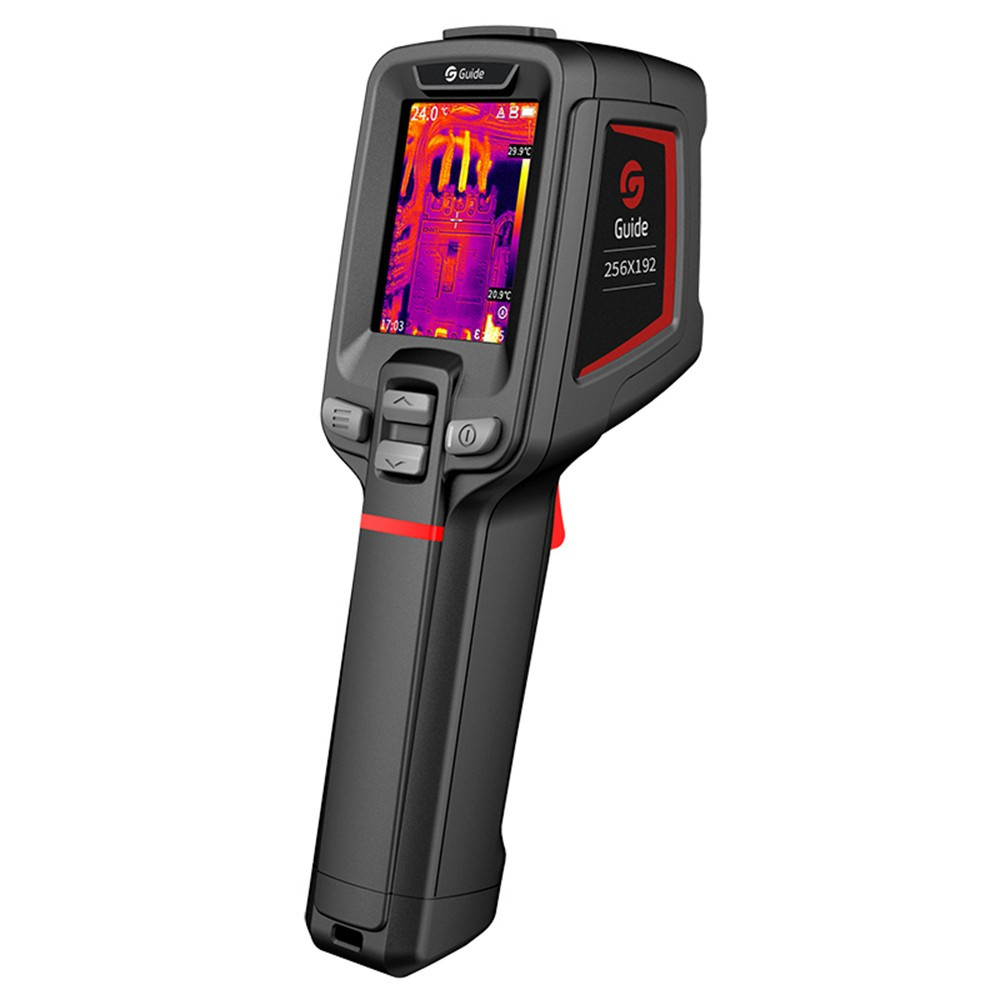

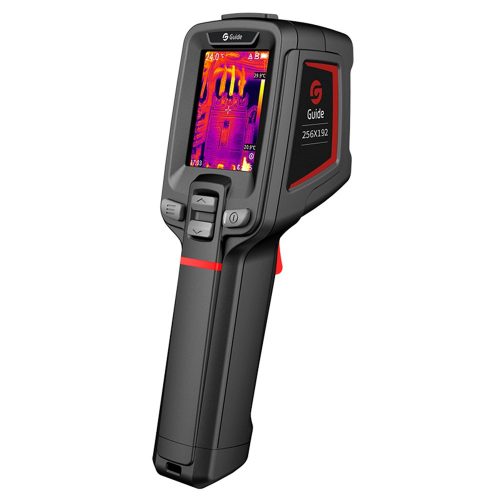

Guide PC210 Tool-like High Definition Thermal Camera

PC210, Tool-like Handheld Thermal Camera, With excellent performance in image quality and charging battery life ,This Thermal Camera adopts 256x192 IR Detector and 200W pixel visible light . Adopts the New SharpIR composite image enhancement technology, it can provide you with detailed infrared thermal imaging and dual-light fusion images to help you find potential faults more quickly.

Boot up in 1 Second

Boot up and display fully radiometric image instantly

Full screen max & min temperature alarm

2.4 inch Large Display

240x320 pixel Color LCD

GUIDE T120V thermal camera_1.jpg



New SharpIR composite image enhancement technology

Based on advanced and deep learning technology,

SharpIR performs various optimization processes such as

defogging, sharpening, contrast enhancement, and lossless

magnification on low-resolution images to enhance the

clarity of infrared images




16-hour Battery Life

Low power consumption,

Large capacity battery


2.5-hour Fast Charge

USB Type-C Interface

High power fast charge

GUIDE T120V thermal camera_4.jpg



Rugged Design

2-meter Drop Test, IP54 Encapsulation

IR/Visible/Laser Indicator

Pinpoint targets precisely

GUIDE T120V thermal camera_5.jpg



Info
Article number
GUIPC210
Data storage
memory card, 32 GB expandable memory card socket
Plugs
USB-C
Energy supply
rechargeable Li-ion battery
Type
Kézi kereső
Manufacturer
Guide
Warranty
2 years manufacturer's warranty
Type
Handheld camera
Display
240×320 pixel 2.4" LCD
Screen color modes
IR, visual picture, Pip, MIF
Field of view (°)
56°×48°
Sizes
194mm×61.5mm×76mm
Measurement properties

Temperature ranges: -20°C-150°C,100°C-550°C(Automatic switching)

Working / storage temperature
-15 - +50°C / -40 - +70°C
Lens
3.2 mm, fix focus
Old article number
GUIPC210
Sensor
256×192@12μm, VOx
Color
black
In the box
camera, wrist strap, SD card, battery charger, USB cable, adapter, program CD, user's manual
Supported photo resolutions
JPEG with temperature data, 256x192
Weight (g)
375
Shock resistance
fall resistance 2 m
Operating time
16 hours
Water resistance
IP54
Product type
Thermal camera, Nightvision
EAN code
6970883550258
Type
Handheld camera
Article No.
GUIPC210
