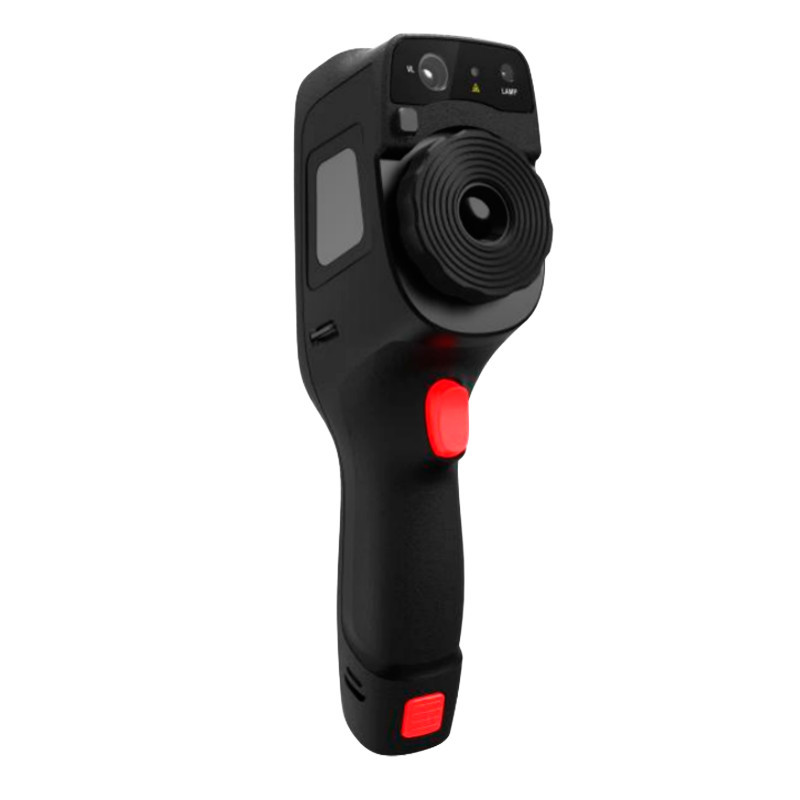

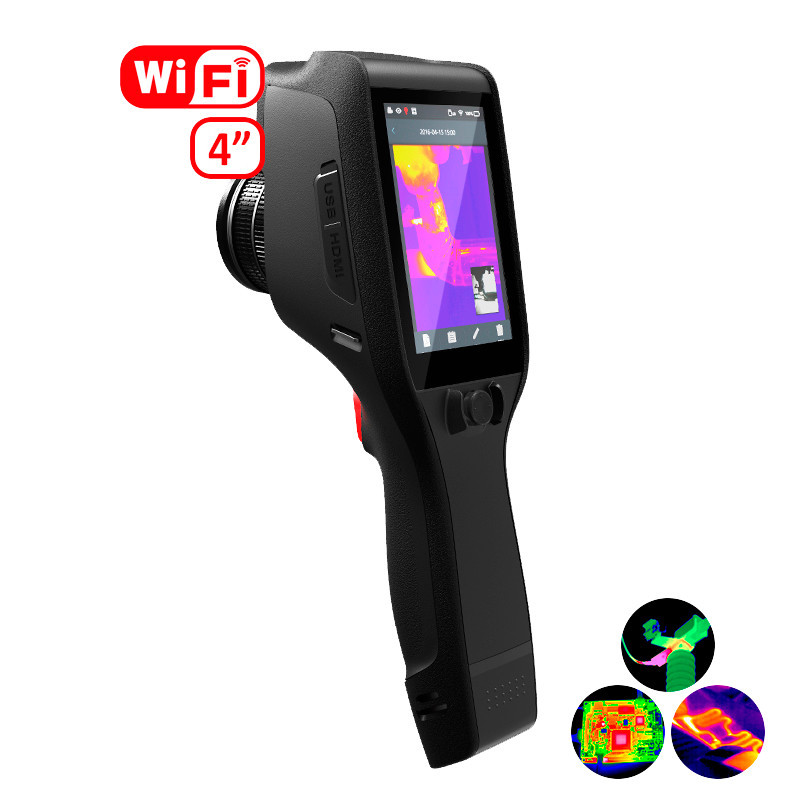

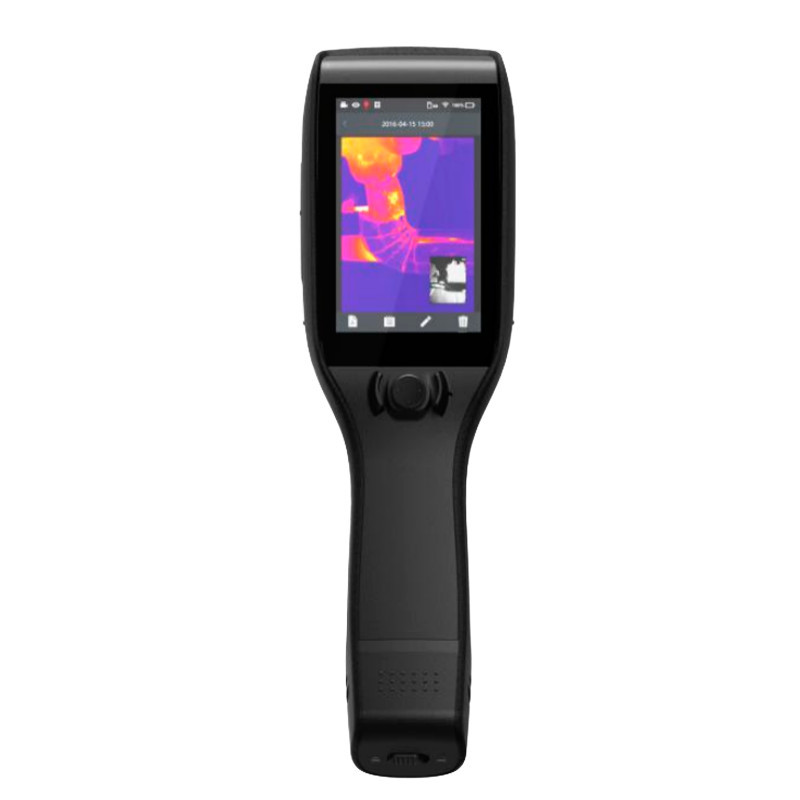

Guide D384A industrial thermal camera

Guide D384A industrial thermal camera
Guide D384A industrial thermal camera
Guide D384A industrial thermal camera
Guide D384A industrial thermal camera

For professional industrial use

Thermal sensor
384x288 25µm
Thermal sensor NETD
40 mK
Magnification interval (x)
1 – 4
Horizontal field of view (°)
35
Horizontal filed of view
35
Thermal sensor
384x288 25µm
Out of stock
3 922.05 EUR
Not available for purchase!
Details
Coming soon...
Info
Article number
GUID384A
Data storage
built-in memory and optional 32 GB-ig expandable memory card
Base magnification (x)
1
Plugs
micro USB 2.0, micro HDMI, SD card
Other properties
5 MP fix lens camera; Fov: 25°×19°;
laser, WiFi, built-in light source, 21 language menu,
Color palettes: White Hot, Fulgurite, Iron Red, Hot Iron, Medical, Arctic, Rainbow 1, Rainbow 2
Settings: temperature, date and time format, watermark, report
60s Voice memo, note option, visual marking
video streaming: USB and WiFi
built-in microphone és speaker
built-in vibration
battery can be charged in the camera or outside, charging time 4 hours in the camera, 5 hours in external charger
automatic turning off, sleep mode
maximum humidity <95%
Certificate: CE, FCC, ROHS




Energy supply
built-in, rechargeable Li-ion battery 7.4 V
Type
Kézi kereső
Video recording
H.264 format, with temperature data
Manufacturer
Guide
Warranty
2 years manufacturer's warranty
Alternative power source
12 V
Type
Handheld camera
IFOV
1.60 mrad
Image repetition frequency
60 / 50 Hz
Display
bright 4'' IPS LCD touch screen
Screen color modes
infra thermo picture, visual picture, mixed, PIP
Field of view (°)
35°×27°
Minimum focus range (m)
0.4
Least magnification
1
Utmost magnification
4
Sizes
274×91×78 mm
Measurement properties

Temperature ranges: -20°C - 150°C, 100°C - 650°C
Accuracy: +/- 2°C, or +/- 2% for ambient temperatures between 15 and 35°C, for object temperatures above 0°C

Working / storage temperature
-10 - +50°C / -40 - +70°C
Lens
15 mm F1.1, auto focus
Optional accessories
camera bag, lens hood, docking charger, tripod adapter
Old article number
GUID384A
Spectral range
8 - 14 μm
Sensor
384x288 pixel uncooled VOx UFPA microbolometer , 25μm pixel size, NETD: 40 mK,
Color
black
Supported photo resolutions
JPEG with temperature data
Weight (g)
735
Shock resistance
fall resistance 2 m
Operating time
4 hours
Water resistance
IP54
Product type
Thermal camera, Nightvision
Type
Handheld camera
Article No.
GUID384A
