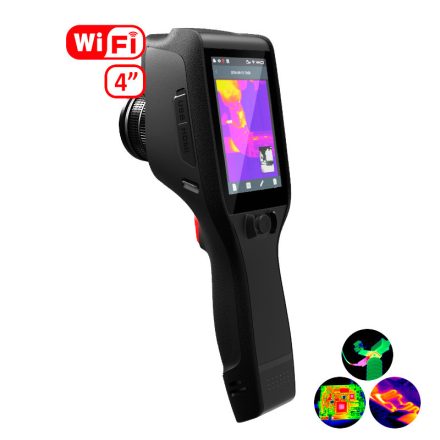

Guide D192M industrial thermal camera

Article No.:
GUID192M

For professional industrial use

Thermal sensor, The smaller the value the more detail the picture has.: 192x144 25μm Thermal sensor:
192x144 25μm
Thermal sensor NETD:
50 mK
Magnification interval (x):
1 – 4
Horizontal field of view (°), One of the most important value when choosing the proper thermal camera. Bigger values are better for short distance. Less values are better for great distances.: 37.8 Horizontal field of view (°):
37.8
Thermal sensor:
192x144 25μm
2 000.64 EUR
Details
Coming soon...
Info
Article number: GUID192M Article number:
GUID192M
When do I get it?: Already on its way When do I get it?:
Already on its way
Data storage: built-in memory and optional 32 GB-ig expandable memory card Data storage:
built-in memory and optional 32 GB-ig expandable memory card
Base magnification (x): 1 Base magnification (x):
1
Plugs: micro USB 2.0, micro HDMI, SD card Plugs:
micro USB 2.0, micro HDMI, SD card
Other properties: 5 MP fix lens camera; Fov: 25°×19°;
laser, WiFi, built-in light source, 21 language menu,
Color palettes: White Hot, Fulgurite, Iron Red, Hot Iron, Medical, Arctic, Rainbow 1, Rainbow 2
Settings: temperature, date and time format, watermark, report
60s Voice memo, note option, visual marking
video streaming: USB and WiFi
built-in microphone és speaker
built-in vibration
battery can be charged in the camera or outside, charging time 4 hours in the camera, 5 hours in external charger
automatic turning off, sleep mode
maximum humidity <95%
Certificate: CE, FCC, ROHS




Other properties:
5 MP fix lens camera; Fov: 25°×19°;
laser, WiFi, built-in light source, 21 language menu,
Color palettes: White Hot, Fulgurite, Iron Red, Hot Iron, Medical, Arctic, Rainbow 1, Rainbow 2
Settings: temperature, date and time format, watermark, report
60s Voice memo, note option, visual marking
video streaming: USB and WiFi
built-in microphone és speaker
built-in vibration
battery can be charged in the camera or outside, charging time 4 hours in the camera, 5 hours in external charger
automatic turning off, sleep mode
maximum humidity <95%
Certificate: CE, FCC, ROHS




Energy supply: built-in, rechargeable Li-ion battery 7.4 V Energy supply:
built-in, rechargeable Li-ion battery 7.4 V
Type: Kézi kereső Type:
Kézi kereső
Video recording: H.264 format, with temperature data Video recording:
H.264 format, with temperature data
Manufacturer: Guide Manufacturer:
Guide
Warranty: 2 years manufacturer's warranty Warranty:
2 years manufacturer's warranty
Alternative power source: 12 V Alternative power source:
12 V
Type: Handheld camera Type:
Handheld camera
IFOV: 3.45 mrad IFOV:
3.45 mrad
Image repetition frequency: 60 / 50 Hz Image repetition frequency:
60 / 50 Hz
Display: bright 4'' IPS LCD touch screen Display:
bright 4'' IPS LCD touch screen
Screen color modes: infra thermo picture, visual picture, mixed, PIP Screen color modes:
infra thermo picture, visual picture, mixed, PIP
Field of view (°): 37.8°×28.8° Field of view (°):
37.8°×28.8°
Minimum focus range (m): 0.5 Minimum focus range (m):
0.5
Least magnification: 1 Least magnification:
1
Utmost magnification: 4 Utmost magnification:
4
Sizes: 274mm × 97mm × 78mm Sizes:
274mm × 97mm × 78mm
Measurement properties:

Temperature ranges: -20°C - 150°C, 100°C - 650°C, with optional front lens up to 1500°C
Accuracy: +/- 2°C, or +/- 2% for ambient temperatures between 15 and 35°C, for object temperatures above 0°C
Measurement properties:

Temperature ranges: -20°C - 150°C, 100°C - 650°C, with optional front lens up to 1500°C
Accuracy: +/- 2°C, or +/- 2% for ambient temperatures between 15 and 35°C, for object temperatures above 0°C

Working / storage temperature: -10 - +50°C / -40 - +70°C Working / storage temperature:
-10 - +50°C / -40 - +70°C
Lens: 7 mm F1.1, fix focus Lens:
7 mm F1.1, fix focus
Optional accessories: camera bag, lens hood, docking charger, tripod adapter Optional accessories:
camera bag, lens hood, docking charger, tripod adapter
Old article number: GUID192M Old article number:
GUID192M
Spectral range: 8 - 14 μm Spectral range:
8 - 14 μm
Sensor: 192x144 pixel uncooled VOx UFPA microbolometer , 25μm pixel size, NETD: 50 mK, Sensor:
192x144 pixel uncooled VOx UFPA microbolometer , 25μm pixel size, NETD: 50 mK,
Color: black Color:
black
Supported photo resolutions: JPEG with temperature data Supported photo resolutions:
JPEG with temperature data
Weight (g): 840 Weight (g):
840
Shock resistance: fall resistance 2 m Shock resistance:
fall resistance 2 m
Operating time: 4 hours Operating time:
4 hours
Water resistance: IP54 Water resistance:
IP54
Product type: Thermal camera, Nightvision Product type:
Thermal camera, Nightvision
Type: Handheld camera Type:
Handheld camera
