Leica Calonox Sight SE thermal imaging clip-on

Leica Calonox Sight SE thermal imaging clip-on
Leica Calonox Sight SE thermal imaging clip-on
Leica Calonox Sight SE thermal imaging clip-on
Leica Calonox Sight SE thermal imaging clip-on
Leica Calonox Sight SE thermal imaging clip-on

Please consult with legal authorities about the usability for hunting purposes!

Thermal sensor
384x288 17µm
Magnification interval (x)
1 – 1
Horizontal field of view (°)
8.9
Horizontal filed of view
8.9
User's Guide (HUN)
Thermal sensor
384x288 17µm
Out of stock
12
2 894.32 EUR
2 538.85 EUR
Discount: 12
Saving 355.47 EUR
Not available for purchase!
We recommend the following product(s) as accessories
Details

Extreme precision and maximum repeatability

Precise spotting, precise shot.

As a thermal imaging attachment, the Leica Calonox Sight SE is ideal for use with a riflescope and is therefore equipped with 1x magnification. Thanks to its one-piece construction, the Calonox Sight SE offers outstanding reliability and a consistently precise, repeatable point of impact.



Superior image quality with Leica Image Optimization (LIO™)

Uniquely sharp, detailed, high-contrast images.

With the Calonox thermal cameras, Leica continues its long, successful track record in digital image optimization, and extends its excellent reputation as a camera manufacturer. Leica’s own image processing (Leica Image Optimization - LIO™) improves the image with special algorithms, thus achieving particularly detailed color gradations, excellent contrast, and high detail resolution.

The outstanding recognition range of the Leica Calonox Sight and Calonox Sight SE are based on a high-end vanadium oxide (VOx) sensor with 384 x 288 pixels and 17 µm pixel size with excellent temperature resolution.

Impressive detail recognition at a long range

Detect, recognize, identify.

See more, identify game safely: With a defined target size of 1.7 x 0.5 m, the Leica Calonox Sight SE can detect targets up to a distance of 2,000 meters, recognize targets up to 700 m, and precisely identify them up to 350 m.

Extra-large field of view

Keep an eye on everything.

Ideal for close-up observations, the 42-mm objective provides a large field of view, and optimum overview at a long range. Equipped with 1x magnification, both the Leica Calonox Sight and the Calonox Sight SE are specially optimized for use with a riflescope.

Adapter rings & zeroing in

Simply be sure.

To make full use of the Leica Calonox Sight SE as an attachment, you need adapter rings that match your riflescope.

With clip-on mode, you can adjust the screen section for use with your riflescope. To enable successful zeroing in, the reticle correction helps precisely align the screen with the reticle in the riflescope.

Elegant design & intuitive operation

Reduced to the essentials.

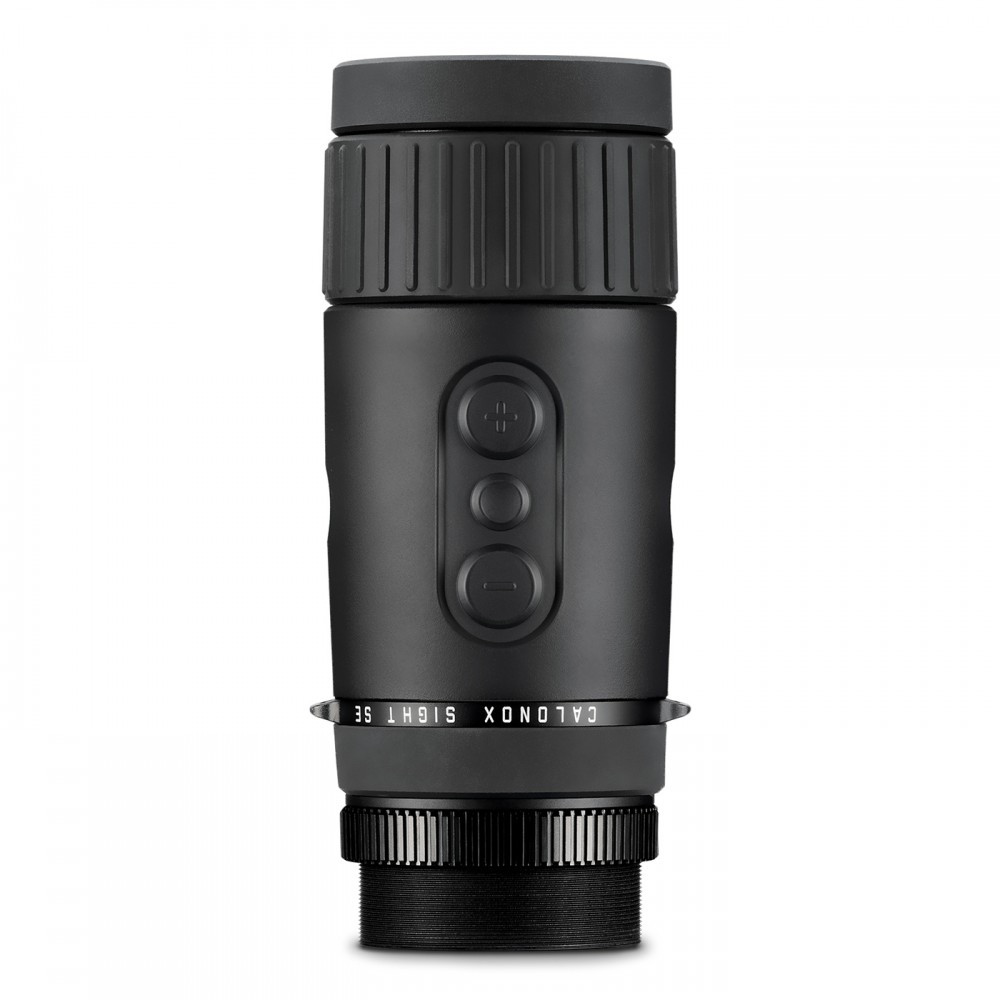

The shapely product design in the well-known Leica style is geared towards the user’s hunting needs. Its cylindrical shape and easy operability integrate perfectly into the hunter’s equipment. The user-friendly, intuitive three-button menu offers streamlined navigation, which enables easy and quick handling even when wearing gloves.

OLED display & rechargeable battery

State-of-the-art technology.

The powerful OLED display with 1024 x 768 pixels enables comfortable observation and reliable identification when stalking or when shooting from blinds. The permanently installed rechargeable battery with approx. 11 hours of power is particularly well protected against cold and moisture. And charging is possible during operation, e.g. by using a powerbank.

Info
Data storage
no
Base magnification (x)
1
Plugs
PAL video out via USB-C
Digital zoom
-
Other properties
Thread sizes: M52x0.75
Energy supply
built-in Li-Ion battery
Detection distance '>

Detection range: 2000 m (1.7x0.5 m) 2 pixel;
Recognition range: 700 m (1.7x0.5 m) 6 pixel;
Identification range: 350 m (1.7x0.5 m) 12 pixel

Video recording
none
Manufacturer
Leica
Warranty
2 years manufacturer's warranty
Type
Monocular
Image repetition frequency
50 Hz
Display
0.4'' OLED 1024 x 768, Leica Image Optimization
Field of view (m)
15.5m / 100m
Field of view (°)
8.9° x 6.7°
Least magnification
1
Utmost magnification
1
Sizes
165 x 65 mm
Magnification
1x
Lens
42 mm focus distance
Optional accessories
Rusan or Recknagel adapters
Sensor
384x288 pixel Vox sensor, 17 µm pixel size
Color
black
In the box
clip-on, cordura case, charging cable, lens cleaning cloth
Supported photo resolutions
-
Supported video resolutions
-
Weight (g)
685
Operating time
8-11 hours
Water resistance
IP67
Product type
Thermal camera, Nightvision
Type
Monocular
Article No.
50504
