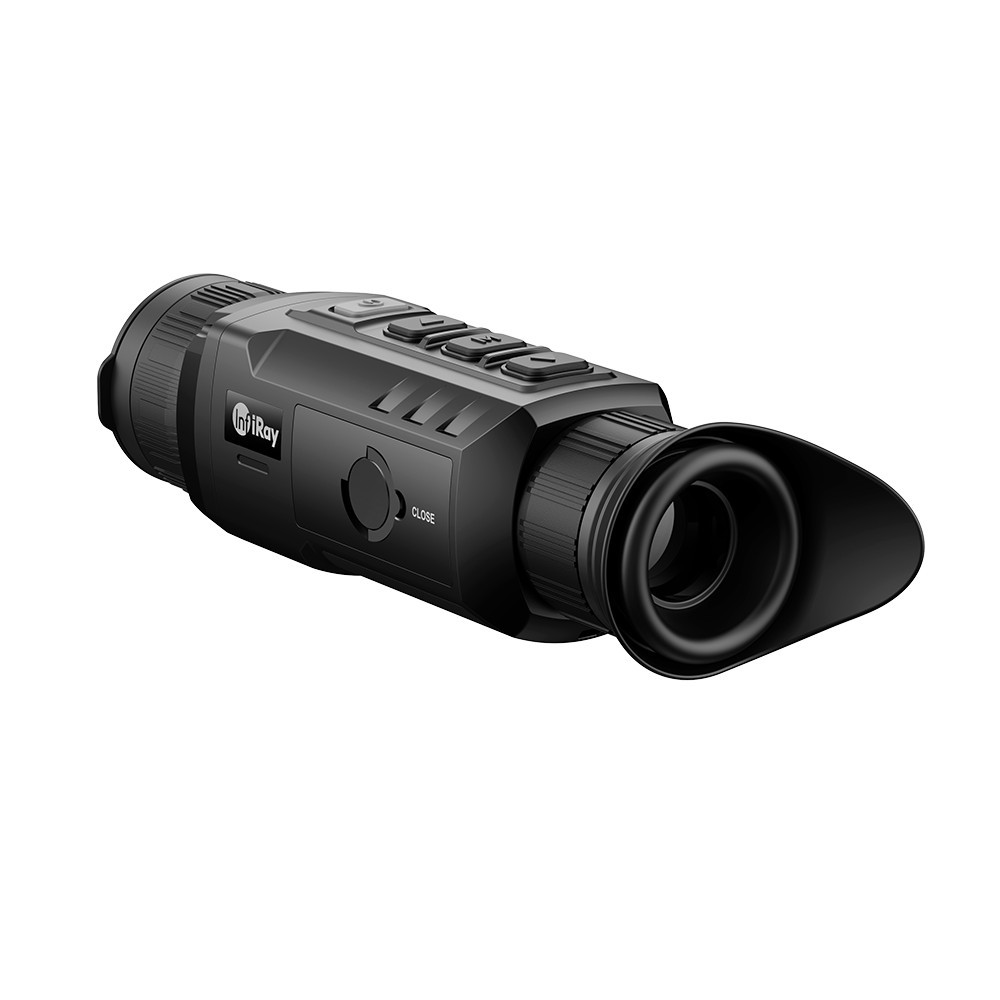

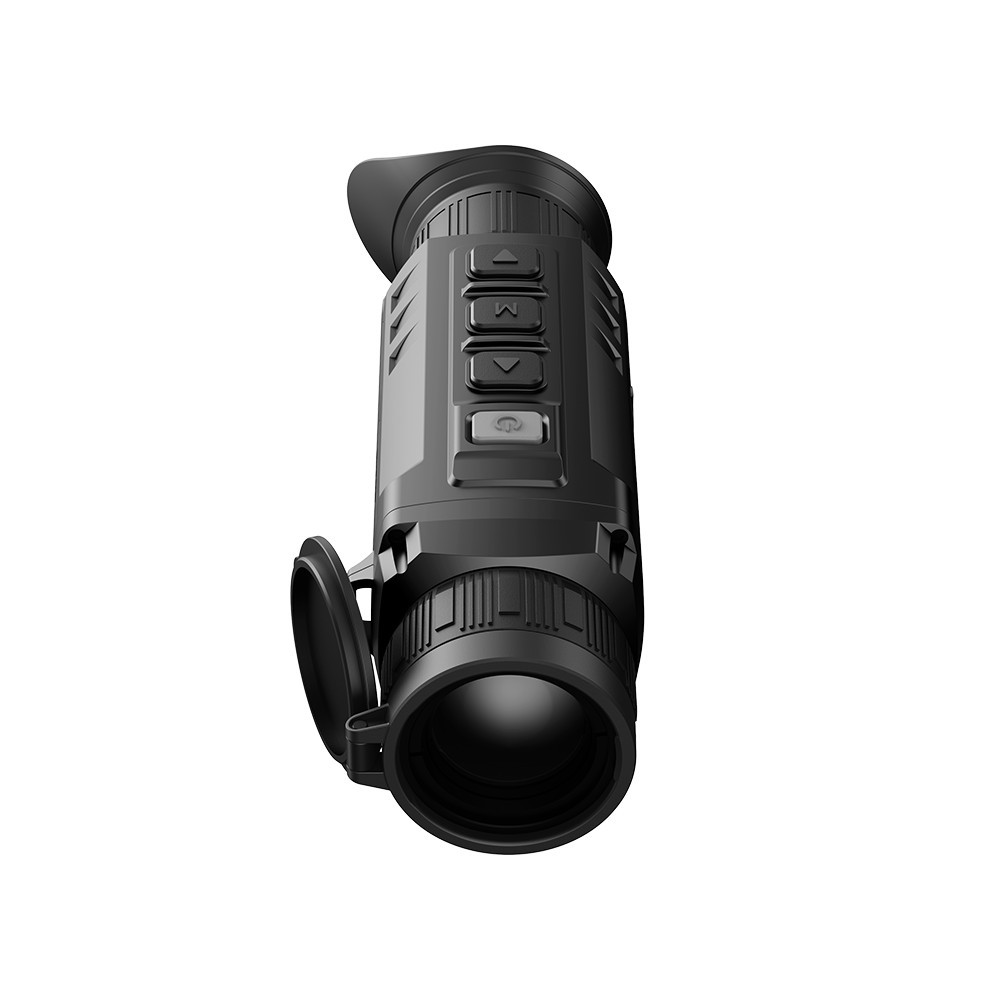

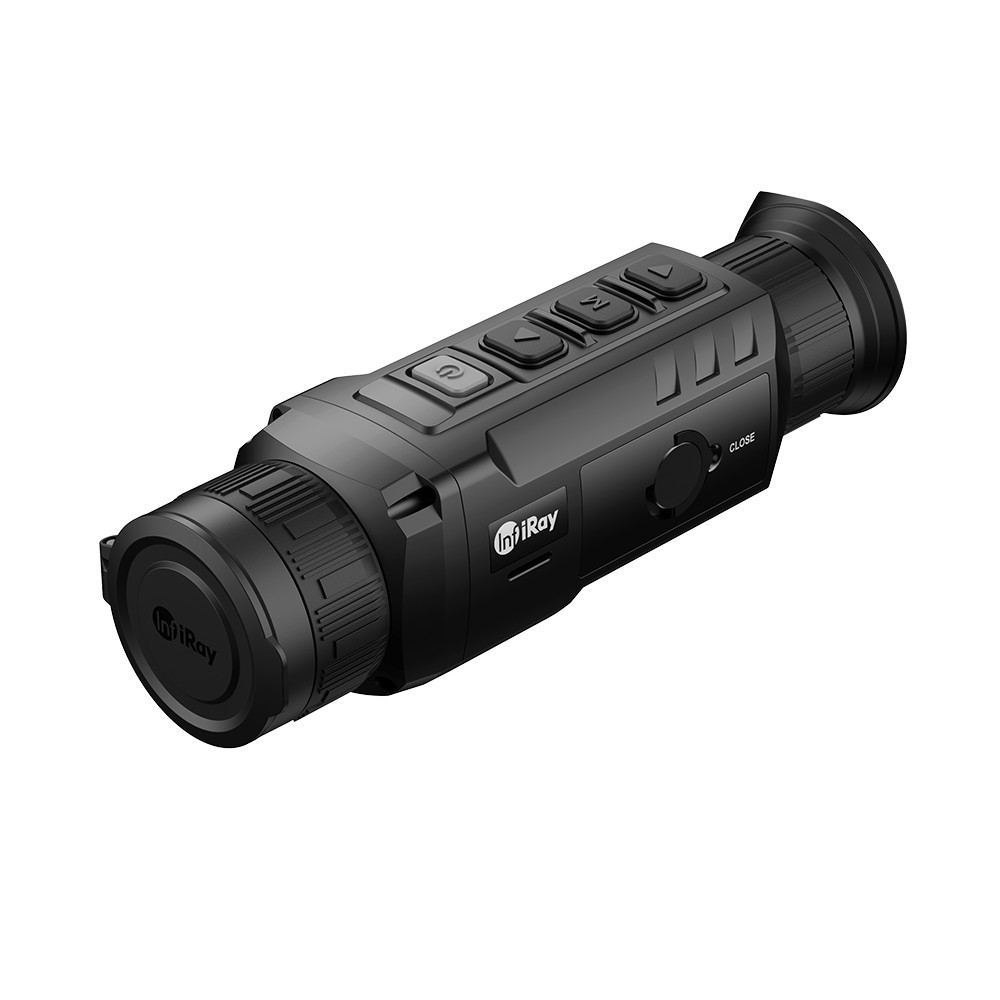

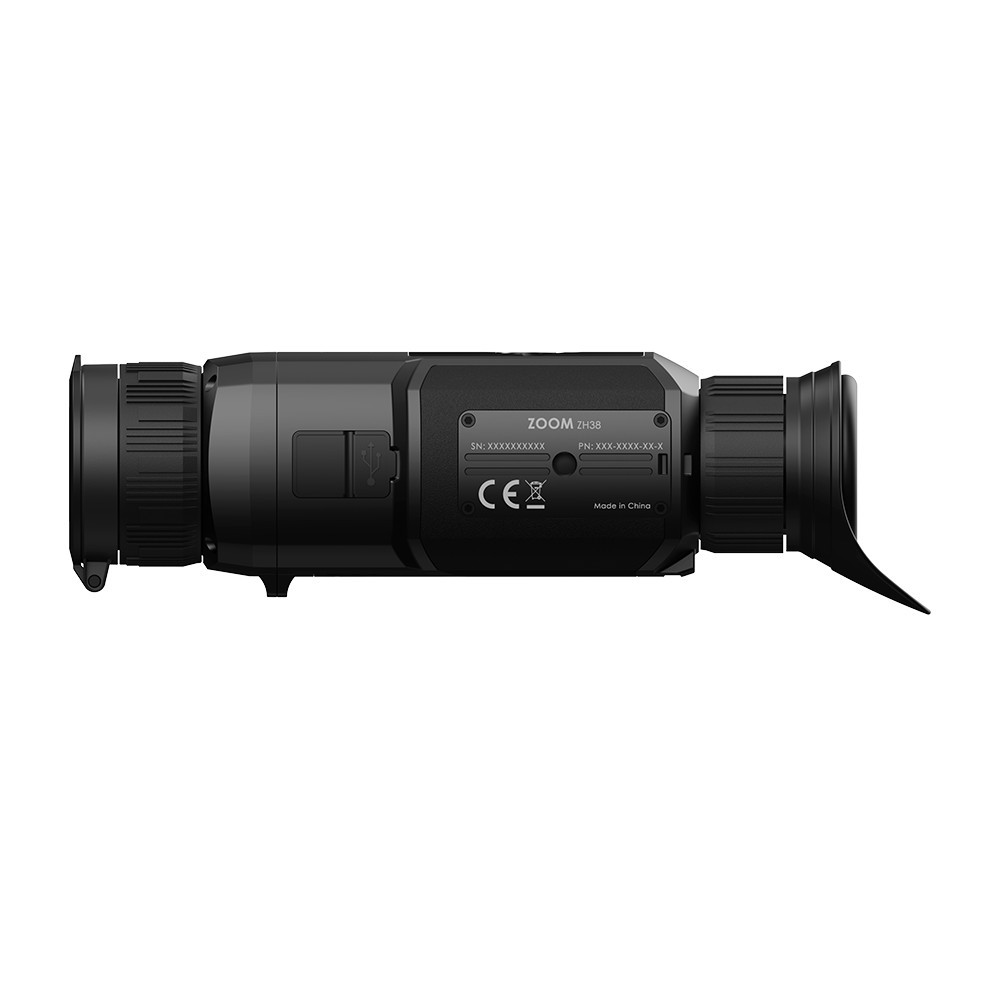

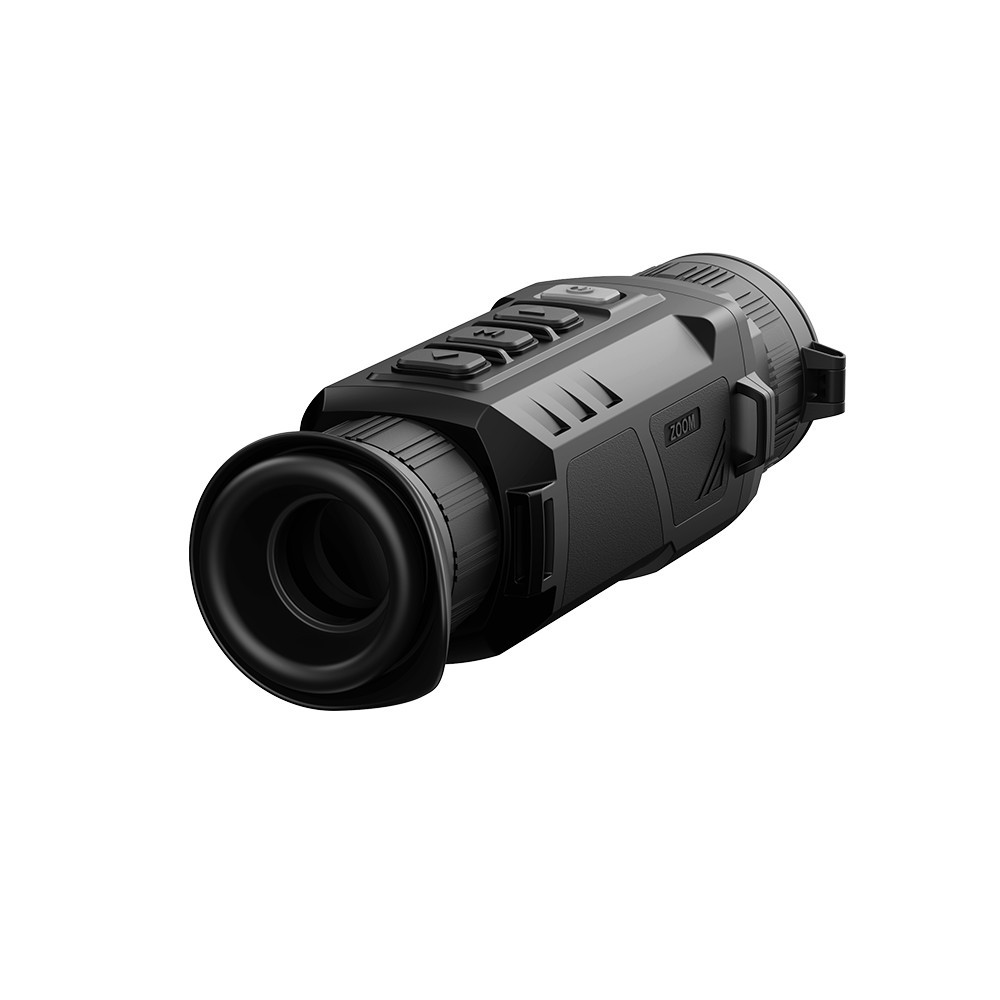

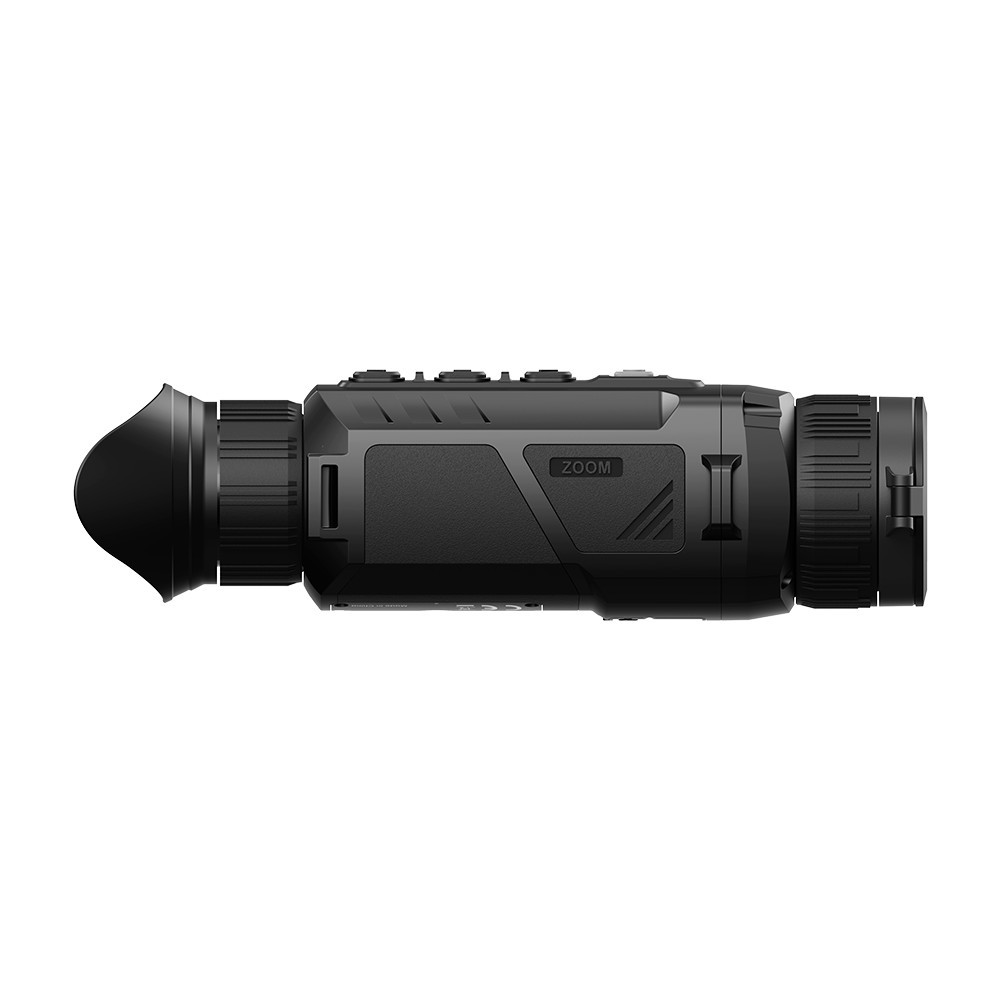

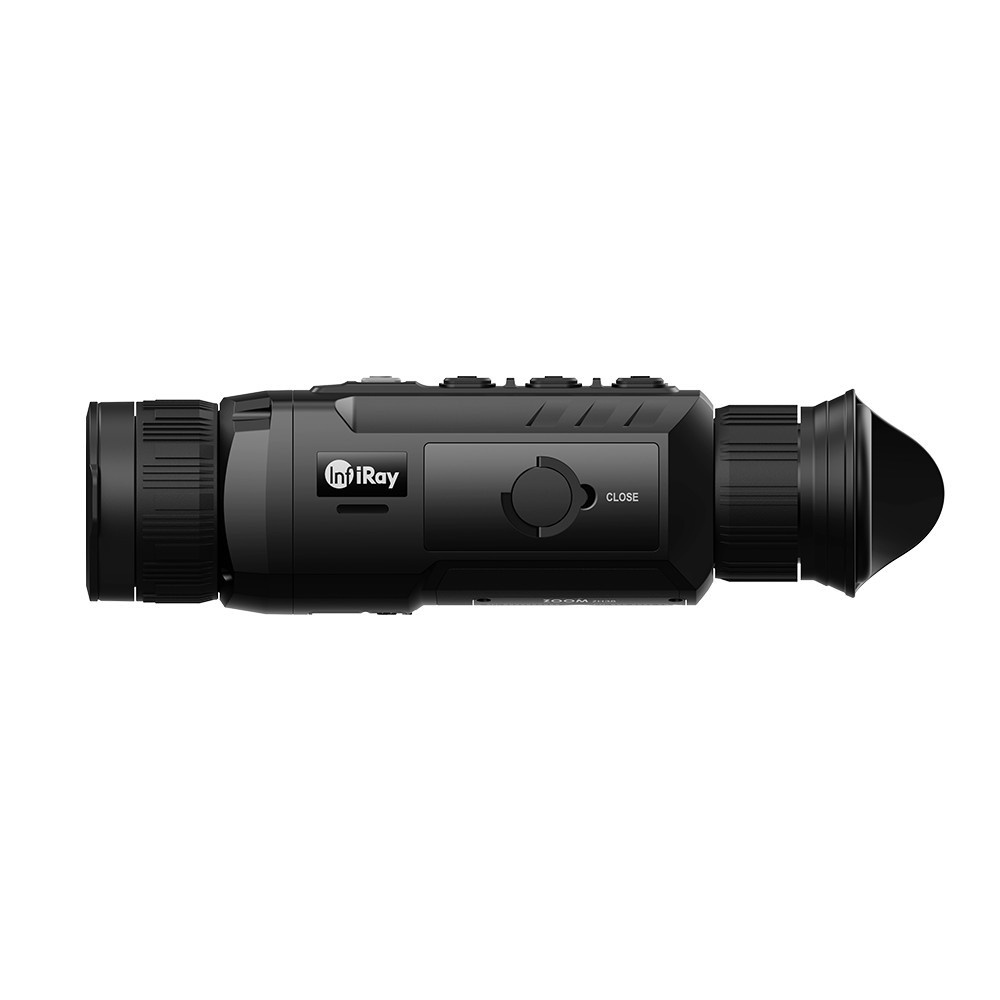

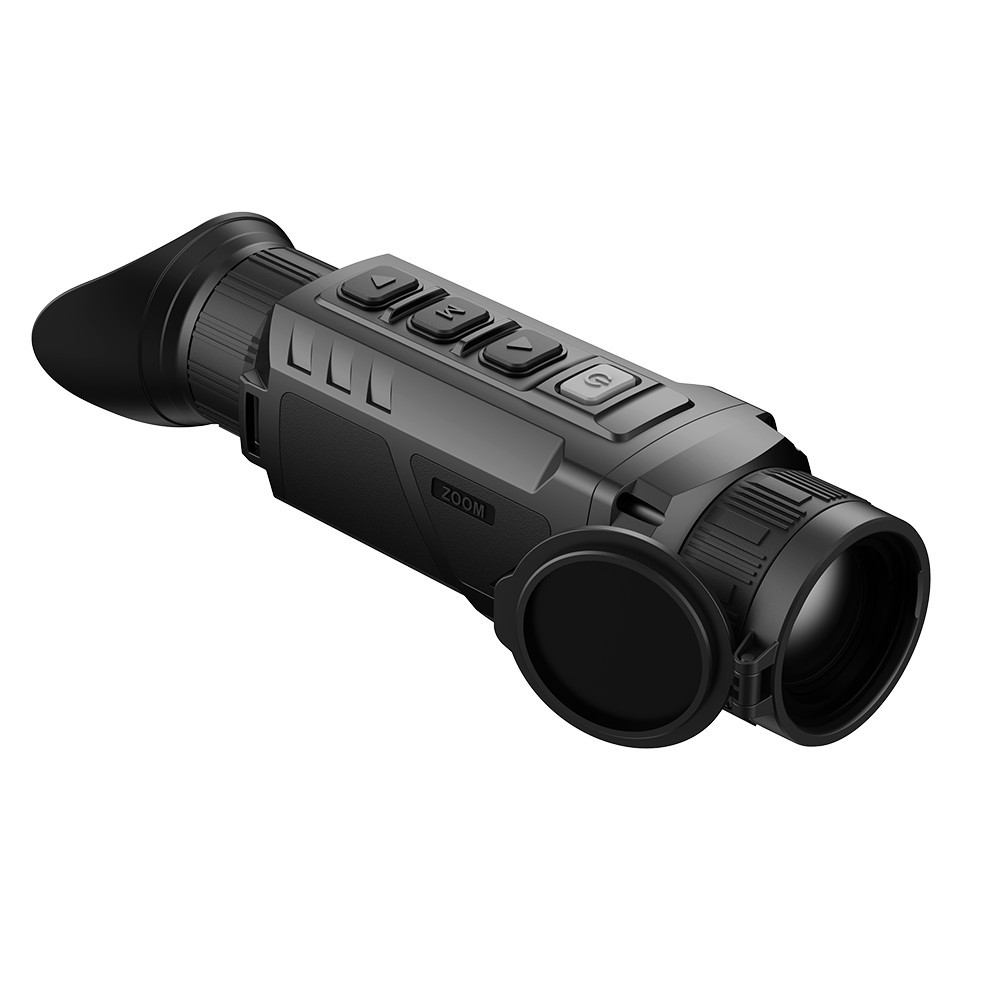

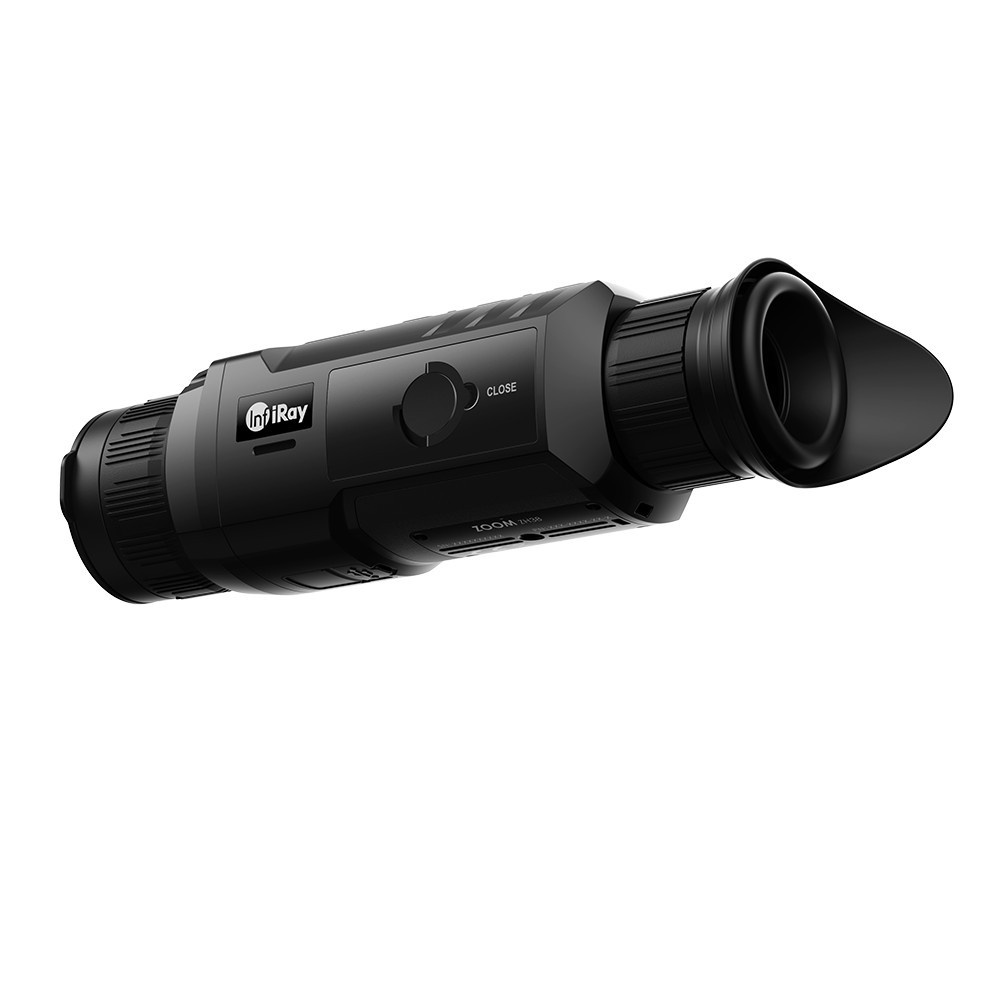

InfiRay Zoom ZL38 thermal monocular

Article No.:
IRAZL38

Please consult with legal authorities about the usability for hunting purposes!

Thermal sensor:
384x288 12µm
Thermal sensor NETD:
25 mK
Magnification interval (x):
2.7 – 21.3
User's Guide (HUN) :
Thermal sensor:
384x288 12µm
2 343.52 EUR
Details

MeetZOOMSeries



Three “FIRSTS” in the Industry

The First “FIRST” — Dual Field of View Design

The first breakthrough innovation is our “zoom as you wish” function. Using the unique dual FOV and 2× optical zoom, the user can quickly switch the dual FOV manually, a larger FOV with a focal length of 19mm is used for target search while a smaller FOV with a focal length of 38mm for target identification. Meet the need to see far, accurately and clearly.

The Second “FIRST” —1440×1080 High Display Resolution

The ZH38 has a built-in full-color high-definition display with a resolution of up to 1440×1080, coupled with the 20 times magnification eyepiece, and supports ×1/×2/×3/×4 electronic zoom for clearer and more comfortable observation, which greatly improves the human eye observation experience.



High Image Quality with NETD≤25mK

The imaging effect of ZOOM series can withstand the test as always, ZH38 is equipped with uncooled Vox 12μm 640×512 high resolution sensor featuring NETD≤25mk (25 °C, F#=1.0). And with ultra clear function, your adventures will never again be stopped by even the worst weather conditions. Better image quality is provided with the powerful sensor and image algorithms, which will bring you a different clear outdoor experience.





10 Hours×2 Batteries

The ZOOM series uses low-power components, lower power consumption, with a replaceable 4400mAh large-capacity lithium battery pack, battery life up to 10 hours, additional battery pack as standard, battery life up to 20 hours, to achieve long-term outdoor operation worry-free.



32GB Storage

ZH38 is built with memory of 32GB which can support to store video and pictures, while the built-in WiFi module supports APP applications.

PIP Function

Built-in Picture-in-Picture function of ZH38 improves accuracy by providing a 2x magnified image of the reticle area at the top of the display. It helps users to zoom in on the targets while retaining the rest of the field of view visible.





5 Color Palettes

For different hunting environments and personal habits, the ZOOM series still includes 5 color modes: white hot, black hot, red hot, color and hot target highlight. Especially in the hot target highlight, the hottest spot in the environment can be automatically and quickly captured in order to find the target.



Info
Data storage:
32GB
Base magnification (x):
2.6
Eye relief:
20 mm
Plugs:
USB-C
Digital zoom:
1x, 2x, 3x, 4x
Diopter compensation:
- 5 / + 5 dpt
Other properties:

Observation distance:

1. 19 mm:  987 m / 1,7x0,5 m (human body)

2. 38 mm: 1974 m / 1,7x0,5 m (human body)

Energy supply:
IBP-1/4400mAh/DC3.7V Li-ion
Manufacturer:
InfiRay
Warranty:
3-year general warranty for the device, 10 years for the sensor, 2 years for the battery
Image repetition frequency:
50 Hz
Display:
0.4″ AMOLED 1440×1080
Field of view (°):
13.9°×10.4° - 6.9°×5.2°
Least magnification:
2.7
Utmost magnification:
21.3
Sizes:
190×65×60 mm
Lens:
19/38 mm
Old article number:
IRAZH38
Sensor:
640x512 resolution Vox uncooled microbolometer ; pixel size: 12 μm; refresh rate: 50Hz; NETD <= 25 mK
Color:
black
In the box:

thermal camera with neckstrap, cordura case with shoulder strap, 2xIBP-1 batteries, charger, AC adapter, USB-C cable, wrist strap, cleaning tissue

Weight (g):
540g
Operating time:
up to 10 hours
Water resistance:
IP67
Product type:
Thermal camera, Nightvision
EAN code:
6973202302163
