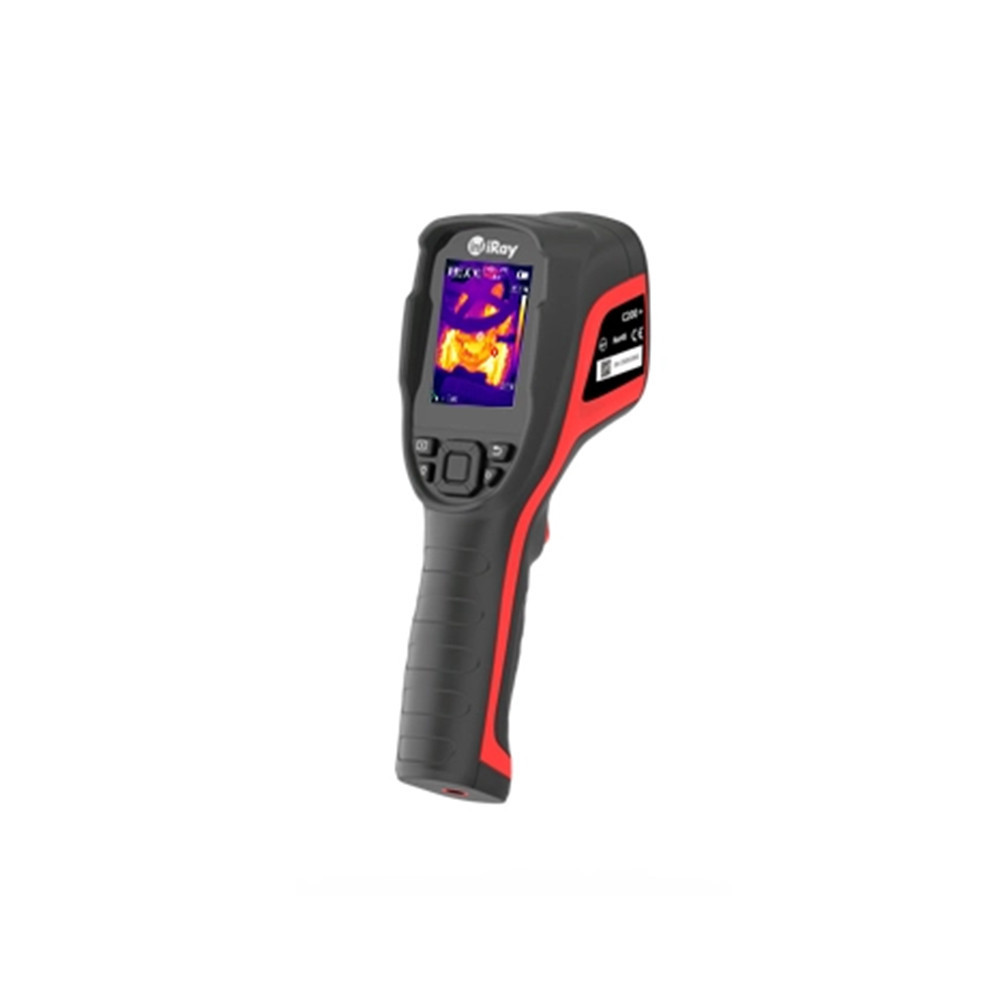

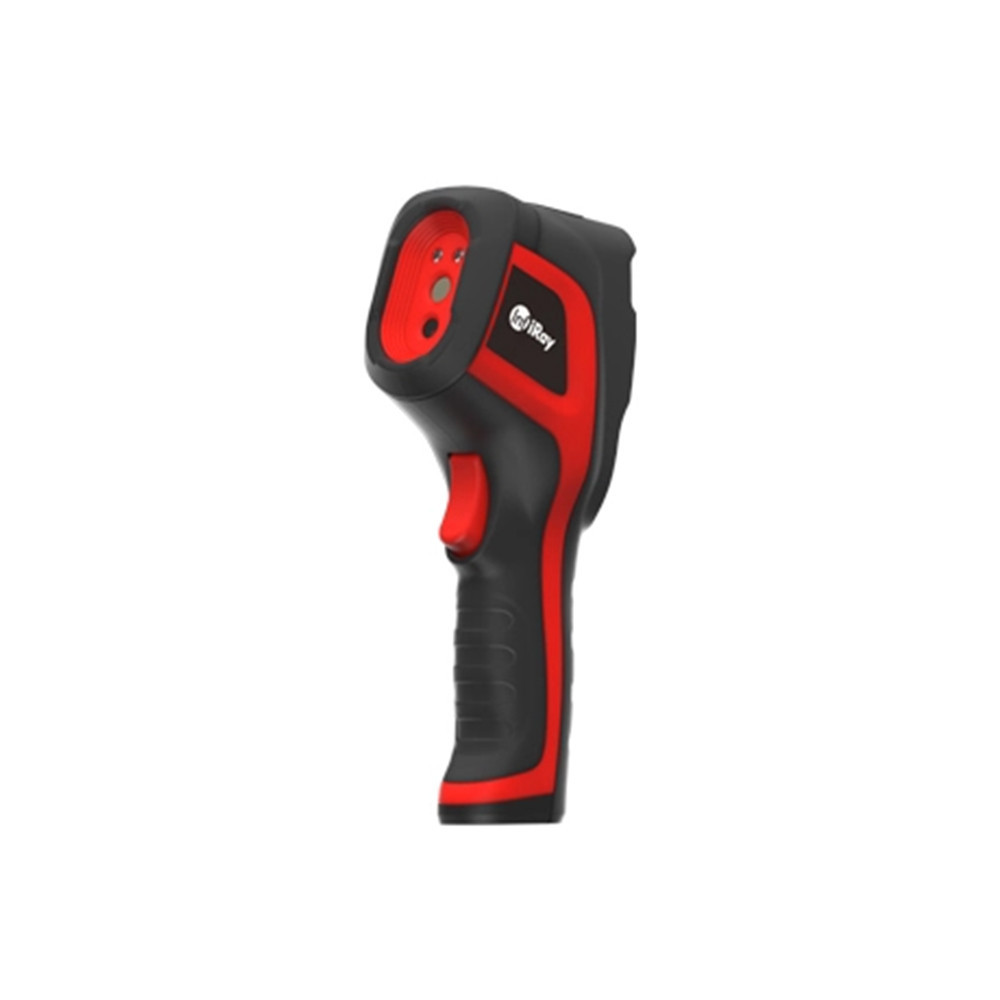

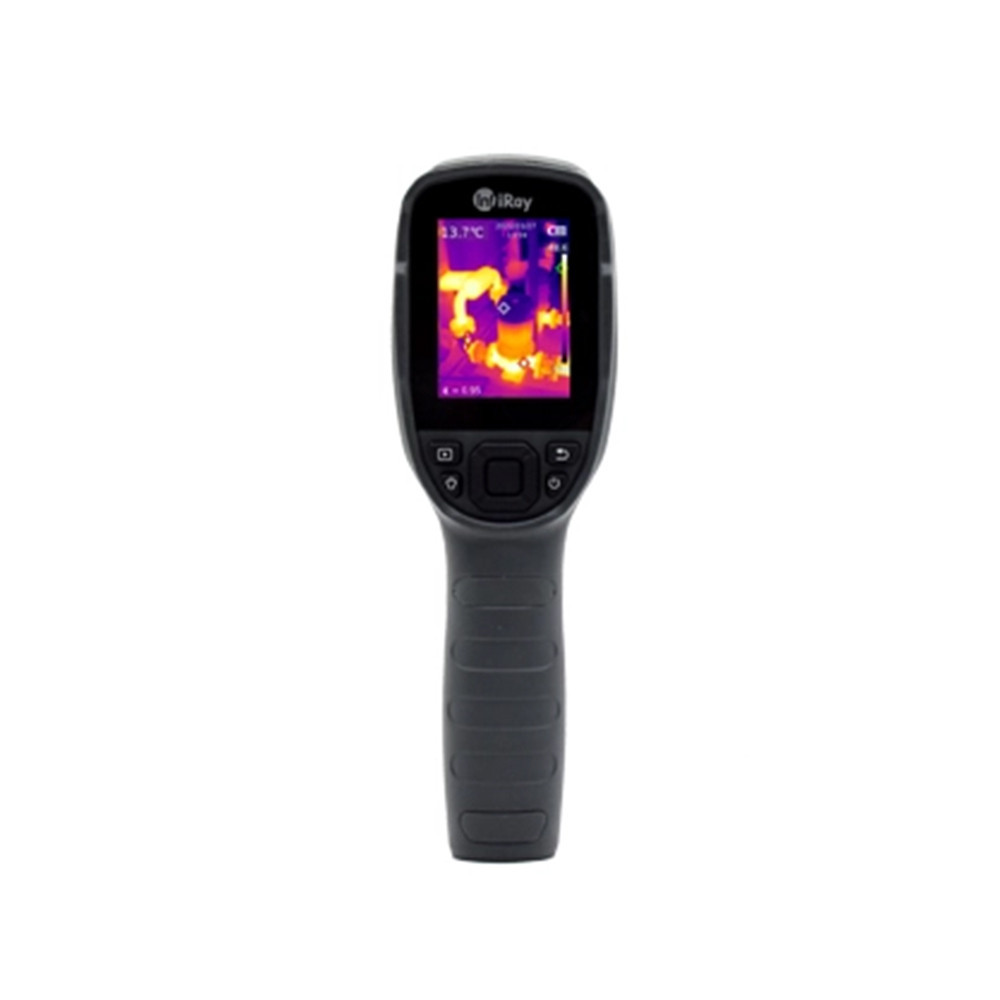

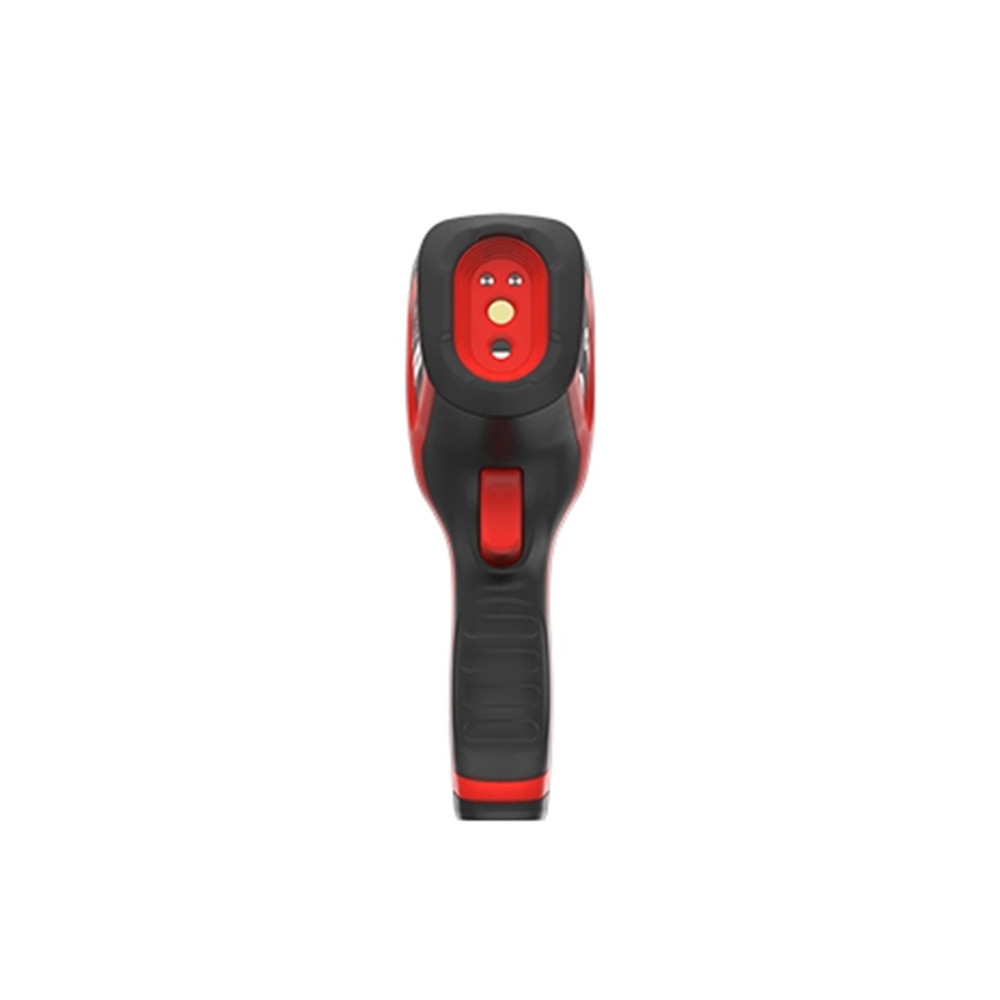

InfiRay C200+ industrial thermal camera

Article No.:
IRAC200PLUS
Thermal sensor NETD:
40 mK
Thermal sensor:
256x192 12μm
425.06 EUR
Details

The Infiray C200+ series handheld thermal camera, with a 40mK high-sensitivity 256×192 infrared detector, combined with the Matrix Ⅳ intelligent image algorithm, offers you clearer and cleaner heat maps. For full productivity, the product is equipped with intelligent professional features such as a new 500nit sunlight screen, automatic range, 2×/4× digital zoom, built-in video taking, and Wi-Fi screen projection* (*for C200Pro+ only), bringing users a smoother work experience with clearer images and more powerful performance.

Image+: distinguish smaller temperature differences and more details

  • 12μm 256×192 infrared detector, featuring low power consumption and small size
  • 40mK professional-grade high sensitivity to capture smaller temperature differences
  • Brand new Matrix IV image algorithm based on AI
  • 500nit sunlight screen, brighter and easier on eyes
  • 4 image modes + 7 color palettes, providing rich image modes



Feature+: professional grade, full services based on thermal sensors, catering to all industrial control scenarios

  • Based on the newly developed CPU, with a shorter startup duration of 6S, and smooth operation response



Software+: complete software PC client and App

  • Complete secondary analysis software for PCs
  • Heat map transmission & analysis applications for mobile devices



Performance+: rugged, easy to use, and quick to deploy

  • Newly developed TPU material More wear-resistant
  • 15-hour battery life, shutdown charging display
  • IP54, waterproof and dustproof + 2m drop protection
  • Built-in 32GB memory card, expandable to 128GB

Applications of C200+ SERIES Handheld Thermal Imager

Info
When do I get it?: Orderable When do I get it?:
Orderable
Data storage: 32GB MicroSD card, expandable to 128GB Data storage:
32GB MicroSD card, expandable to 128GB
Tripod thread: yes Tripod thread:
yes
Plugs: USB-C Plugs:
USB-C
Digital zoom: 2×/4× Digital zoom:
2×/4×
Other properties:

Picture modes: Infrared, dual-spectrum fusion, visible light, PIP

Other properties:

Picture modes: Infrared, dual-spectrum fusion, visible light, PIP

File format: mp4 File format:
mp4
Resolution: 2 megapixel Resolution:
2 megapixel
Manufacturer: InfiRay Manufacturer:
InfiRay
Warranty: 3-year general warranty for the device, 10 years for the sensor, 2 years for the battery Warranty:
3-year general warranty for the device, 10 years for the sensor, 2 years for the battery
IFOV: 3.8 mrad IFOV:
3.8 mrad
Image repetition frequency: 25 Hz Image repetition frequency:
25 Hz
Display: 2.8'' color LCD 320x240 pixel Display:
2.8'' color LCD 320x240 pixel
Screen color modes: 7 modes Screen color modes:
7 modes
Field of view (°): 56°×42° Field of view (°):
56°×42°
Sizes: 237 × 75 × 92 mm Sizes:
237 × 75 × 92 mm
Measurement properties:

IFOV: 3.8 mrad

Measurement types: Central temperature point/Highest temperature point/Lowest temperature point

Low temperature range: -20~+150°C
High temperature range: 100~550°C

Accuracy: ±2% or ±2°

Measurement Unit: Celsius, Fahrenheit, Kelvin

Measurement properties:

IFOV: 3.8 mrad

Measurement types: Central temperature point/Highest temperature point/Lowest temperature point

Low temperature range: -20~+150°C
High temperature range: 100~550°C

Accuracy: ±2% or ±2°

Measurement Unit: Celsius, Fahrenheit, Kelvin

Operating humidity: 10% - 95% Operating humidity:
10% - 95%
Working / storage temperature: -10°C to +50°C / -20°C to +60°C Working / storage temperature:
-10°C to +50°C / -20°C to +60°C
Sensor: 256x192 pixel, 12μm pixelsize <40mK Sensor:
256x192 pixel, 12μm pixelsize <40mK
Color: red Color:
red
In the box:

USB cable, 32GB SD card, user manual, storage bag

In the box:

USB cable, 32GB SD card, user manual, storage bag

Weight (g): 520 Weight (g):
520
Shock resistance: fall resistance 2 m Shock resistance:
fall resistance 2 m
Operating time: up to 15 hours Operating time:
up to 15 hours
Water resistance: IP54 Water resistance:
IP54
Product type: Thermal camera, Nightvision Product type:
Thermal camera, Nightvision
EAN code: 6973202306024 EAN code:
6973202306024
