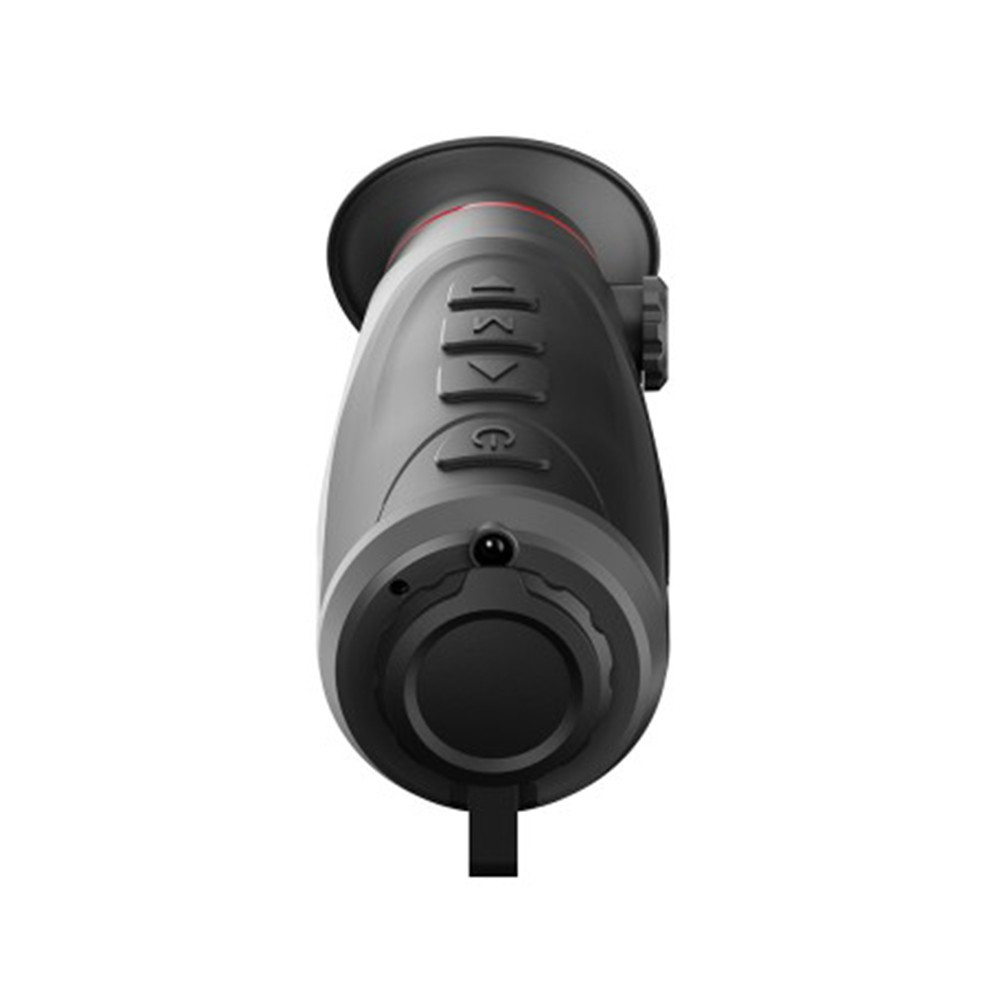

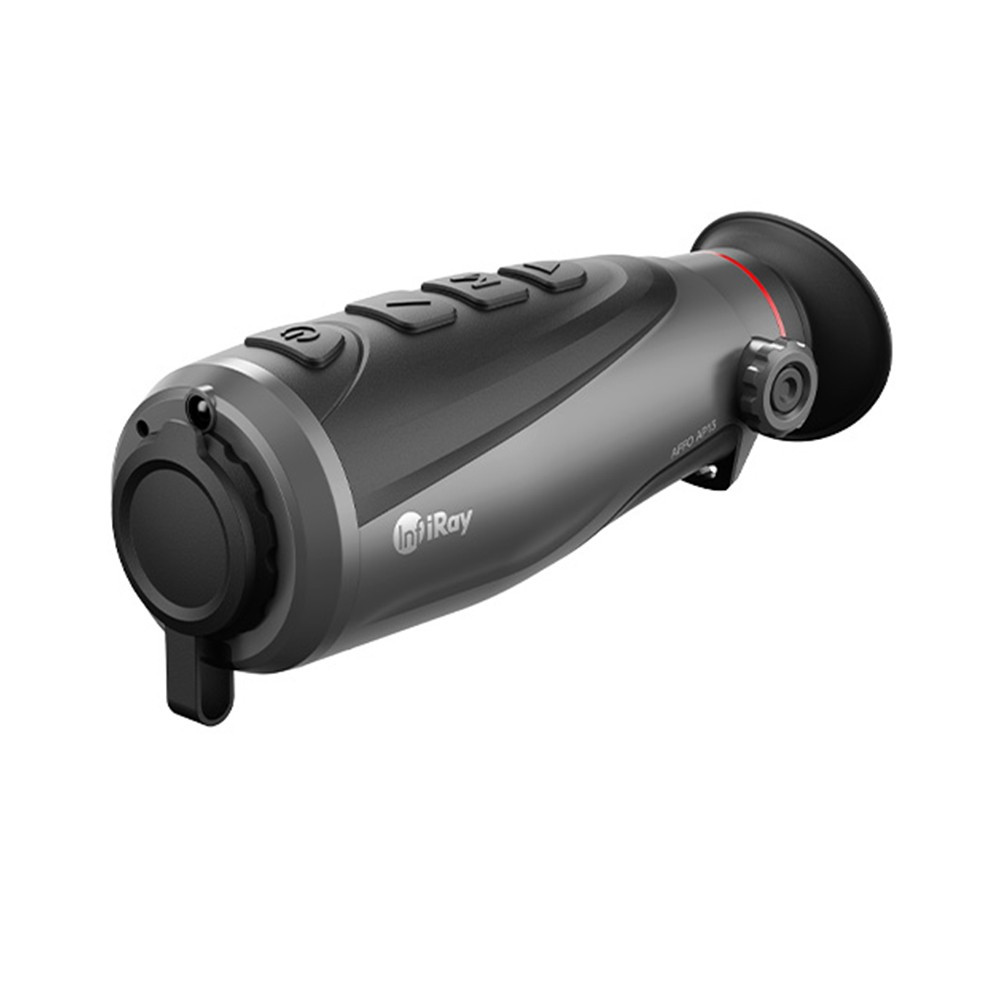

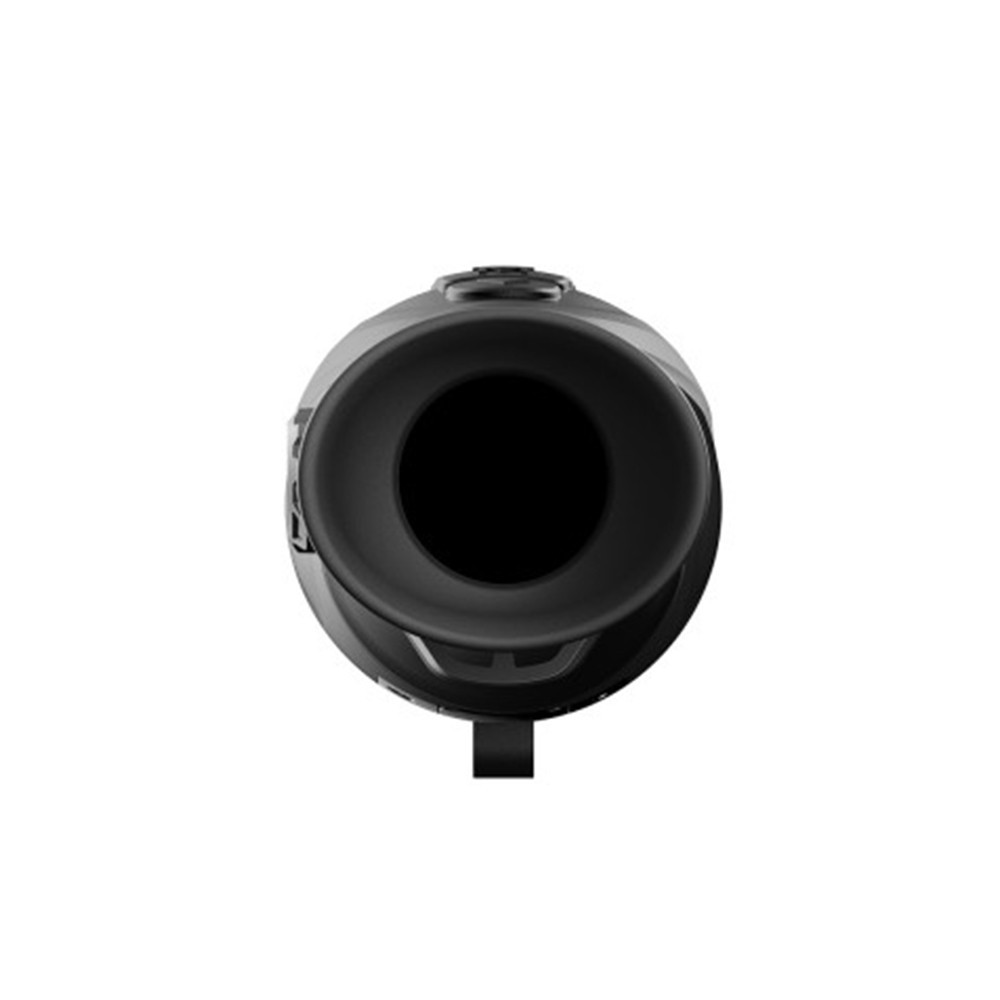

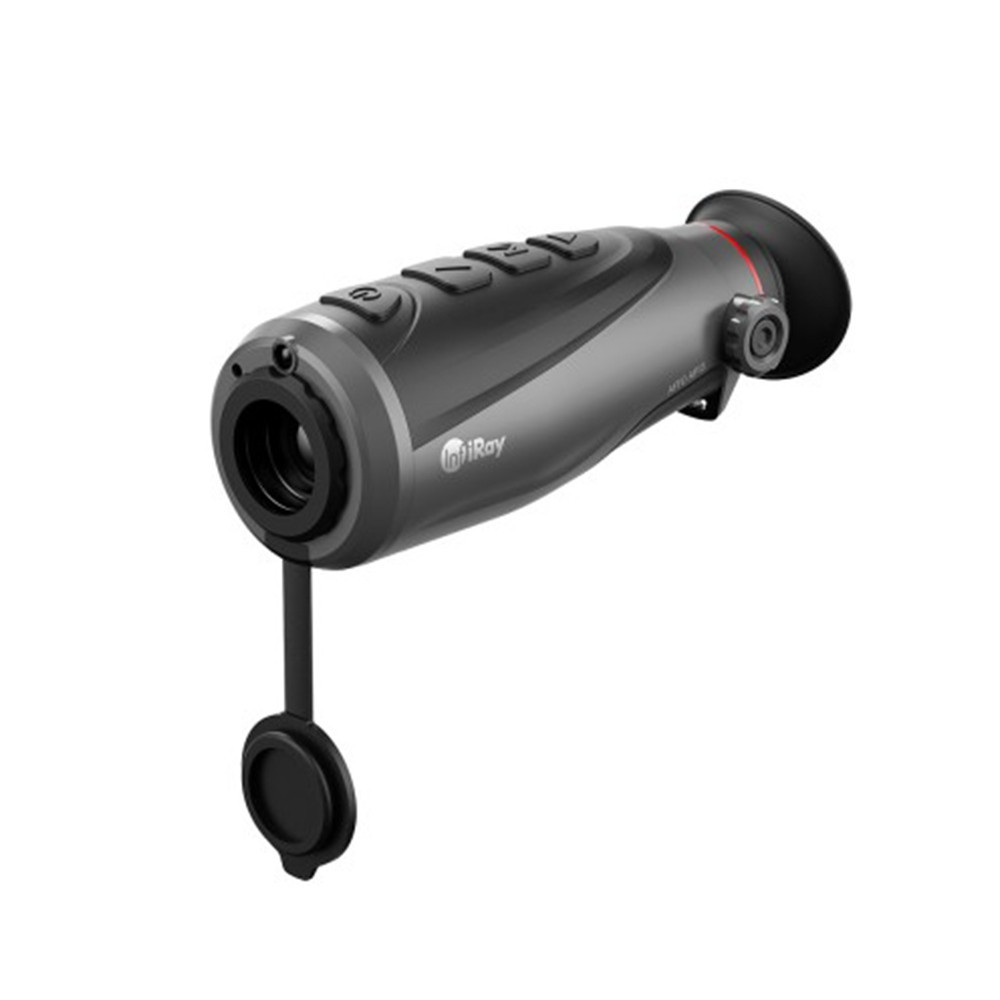

InfiRay Affo AL19 thermal monocular

1 058.23 EUR

InfiRay Affo AL19 thermal monocular

Name: InfiRay Affo AL19 thermal monocular
Brand: InfiRay
SKU: IRAAL19
Price: 1058.23 EUR
Availability: InStock

- 19 mm focal range lens, fix focus
- 384x288 pixel detector, 12 µm pixel size
- Detection range: 986 m (human body)
- 13.8° FOV, NETD <= 40 mK
- WiFi, photo recording

- Please consult with legal authorities about the usability for hunting purposes!

Details

Thermal sensor

384x288 12µm

Thermal sensor NETD

40 mK

Magnification interval (x)

1 – 4

Horizontal field of view (°)

13.8

Horizontal filed of view

13.8

User's Guide (HUN)

Hungarian version

Thermal sensor

384x288 12µm

Further data

In stock

1 058.23 EUR

Details

In Hungary and some EU countries, the use of night vision and thermal camera products for hunting purposes is limited, and the use of devices with crosshairs and/or aiming devices is prohibited. Please find out about the regulations in the country in question and follow their changes.

Do you wonder what it's like when a camera manufacturer launches a camera that has a simple, beautiful image and immediately sweeps the user off their feet?

The AFFO series offers practical features including a stadiometric rangefinder and picture-in-picture function.

The Affo series was released as the successor to the X-Eye series. With the Infiray Affo AL19 thermal camera, we get an even clearer and more detailed image, a clearer and more detailed field of view and improved hot spot tracking. AL19 will be the king of sprinklers. It provides an excellent field of view with low basic magnification thanks to the short focal length and the 384x288 pixel sensor. Due to the detail, however, it is also informative at 400 meters for large-bodied game. The built-in 32 GB internal memory allows you to record the moments you want, while the Wifi module allows you to connect to a smartphone or tablet, stream video or transfer files directly from the device, and update the operating system of the thermal camera. The downloadable app is called InfiRay Outdoor.

Furthermore, the device has an HDMI interface, so it can be directly connected to an HD screen, laptop, etc. for high quality display.

The thermal camera is equipped with 5 color palettes, in addition to the normal "white", "black", "red" and "color", we developed the "warm body highlighting" palette. By selecting this, users can easily find the target due to the high contrast between the background and the target. Automatically track the hottest point in the field of view, making target detection even faster.

The durable, rigid plastic lens cap has greater hardness and impact resistance, and is limited waterproof thanks to the insulation.

However, the strength of the camera is really the convincing force with which we almost immediately feel at home in all circumstances.

Info

Data storage

32 GB of internal storage

Base magnification (x)

1,2

Plugs

USB-C, HDMI

Diopter compensation

-3 - +1

Other properties

WI-FI, photo recording

Detection distance '>

Detection (m) human body: 675

Type

Seeker monocular

Manufacturer

InfiRay

Warranty

3-year general warranty for the device, 10 years for the sensor, 2 years for the battery

Image repetition frequency

50Hz

Display

640x400 OLED

Field of view (°)

13.8°×10.4°

Sizes

174×60×60 mm

Working / storage temperature

-10-+50℃ / -

Lens

13 mm focal length, fix focus

Old article number

IRAAL19

Sensor

256x192 pixel, 12 μm pixel size, NETD <= 40 mK

Color

grey

In the box

thermal monocular, zipped cordura case with soft inside and shoulder strap

Weight (g)

350

Operating time

up to 7.5 hours (22°C)

Water resistance

IP67

Product type

Thermal camera, Nightvision

EAN code

6973202303801

Article No.

IRAAL19
