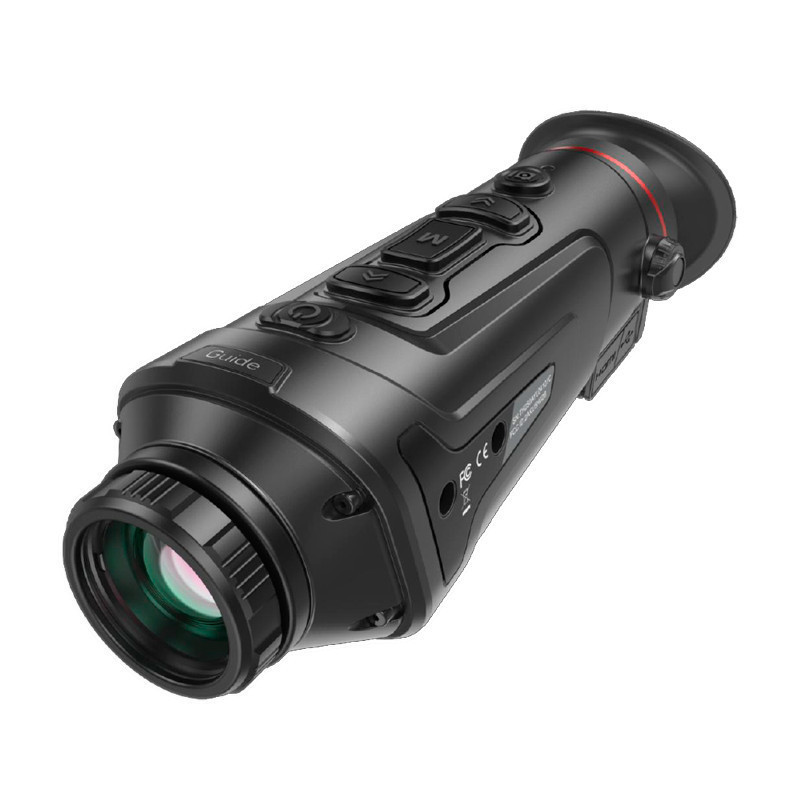

Guide TK421 Gen2 Kitalpha thermal monocular

Article No.:
GUITK421

Please consult with legal authorities about the usability for hunting purposes!

Thermal sensor, The smaller the value the more detail the picture has.: 400x300 17μm Thermal sensor:
400x300 17μm
Magnification interval (x):
2.3 – 9.2
Horizontal field of view (°), One of the most important value when choosing the proper thermal camera. Bigger values are better for short distance. Less values are better for great distances.: 11.1 Horizontal field of view (°):
11.1
User's Guide (HUN), A linkre kattintva letölthető a magyar nyelvű használati útmutató.:

Hungarian version

User's Guide (HUN):
Thermal sensor:
400x300 17μm
1 250.65 EUR
Details

Equipped with Guide’s new self-developed infrared detector and the patented image processing technology, the TK Gen2 Kitalpha Series captures sharp imaging and is packed with powerful features like image and video recording, smooth zoom, pseudo-color adjustment, approximate ranging and PIP. Personalized image observation is supported in different scene modes. The built-in laser indicator and illuminator facilitate itself to be operated in harsh environment.

Find the HD resolution images

Featuring the new self-developed infrared metal detector, TK Kitalpha Series comes with 400x300 and 640x480 thermal resolution. The 3DNR and PureIR adaptive filtering algorithm provides superior image quality and detailed vision in complex environments.



Outdoor lighting

Enable the outdoor lighting function to generate the visible light images.

Laser indicating

Enable the laser indicating function to locate the object at 200m.

Deliver a stunning HD view

Thanks to the full-color 0.4-inch HD display with 1280 x 960 pixels, the image is crisper and more delicate. It feels like watching 22-inch screen at 1 meter, which greatly improves the observation comfort.

Anti-Fog Eyepiece brings the clarity

This adaptive LCOS eyepiece prevents condensation or fogging and helps you maintain a clear view of your subject.

Bring extended 8x zoom capability

8X zoom can be used to observe targets from long distances for fast location.

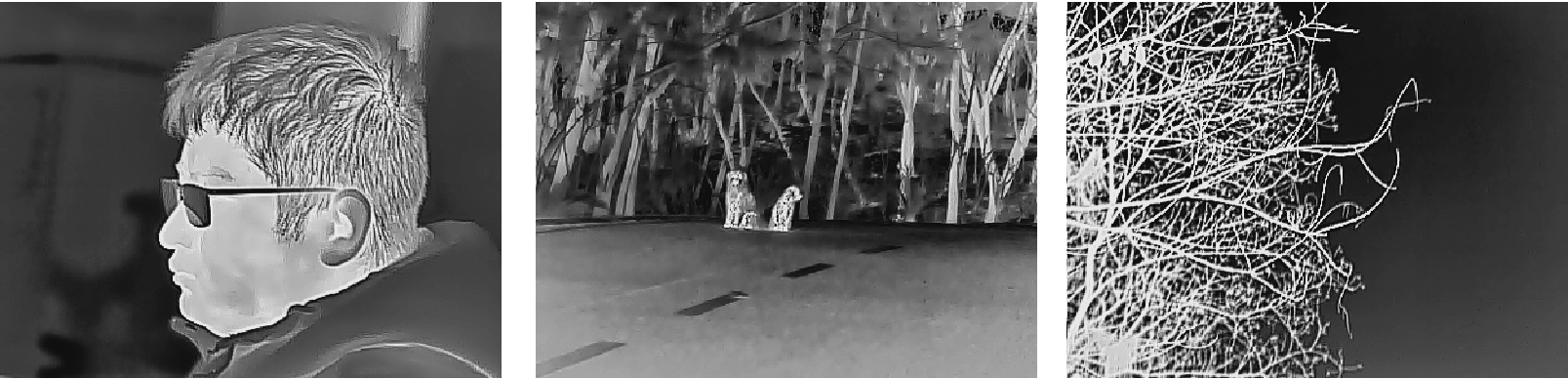

One-click switch between three scene modes. Switch between modes to give prominence to objects.

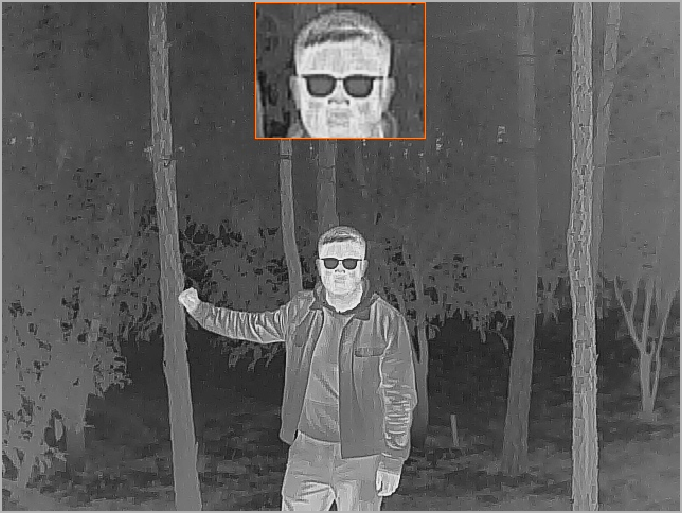

PIP mode for highlighting the target

The PIP mode allows you to zoom in on the target and highlight the details of the target when you are in the complex outdoor scenes.

Multiple color palettes to highlight the target

Six color palettes: White Hot, Black Hot, Iron Red, Blue Hot, Green Hot and Adjustable Red Hot.

Support one-button switch to identify the location of the target instantly, helping to achieve all-weather observations.

IP66, rugged and durable and quality guaranteed

With the IP66 protection level and 1-meter drop test, it is suitable for all kinds of harsh weather. The UN38.3 battery certification, RoHS, CE and FCC certification give the quality assurance.

New App with a variety of functions

The TargetIR APP provides a variety of functions, such as live image and video transmission, for operating the TK Kitalpha Series.

Info
Article number: GUITK421 Article number:
GUITK421
When do I get it?: Already on its way When do I get it?:
Already on its way
Data storage: 16 GB built-in memory Data storage:
16 GB built-in memory
Base magnification (x): 1.7 Base magnification (x):
1.7
Tripod thread: 1/4 coll Tripod thread:
1/4 coll
Plugs: micro HDMI output, USB Type C Plugs:
micro HDMI output, USB Type C
Digital zoom: 1x, 4x Digital zoom:
1x, 4x
Diopter compensation: -4; +2 Diopter compensation:
-4; +2
Other properties:

built-in WiFi, livestream function, USB-C picture transfer to computer, micro-HDMI - HDMI cable (the picture of the monocular can be seen on an externel big monitor)

Other properties:

built-in WiFi, livestream function, USB-C picture transfer to computer, micro-HDMI - HDMI cable (the picture of the monocular can be seen on an externel big monitor)

Energy supply: built-in 2x18650 battery, 6000 mAh Energy supply:
built-in 2x18650 battery, 6000 mAh
Detection distance (Information data, that shows the distance an object can be seen from as one pixel. It's just one pixel without shape and contours. The distance, from that the object, game or human body can be identificate with it's shape, is usually much shorter.): Detection: car - 2400 m, human body - 1000 m Detection distance:
Detection: car - 2400 m, human body - 1000 m
Type: Monocular finder Type:
Monocular finder
Manufacturer: Guide Manufacturer:
Guide
Warranty: 30 months manufacturer's warranty for the device Warranty:
30 months manufacturer's warranty for the device
Type: Monocular Type:
Monocular
Image repetition frequency: 50 Hz Image repetition frequency:
50 Hz
Display: 1280x960 pixel, 0.4'' color LCOS Display:
1280x960 pixel, 0.4'' color LCOS
Field of view (°): 15.4°×11.6° Field of view (°):
15.4°×11.6°
Minimum focus range (m): 2 Minimum focus range (m):
2
Least magnification: 2.3 Least magnification:
2.3
Utmost magnification: 9,2 Utmost magnification:
9,2
Sizes: 192x65x71 mm Sizes:
192x65x71 mm
Working / storage temperature: -10 - +50°C / -30°- +60°C Working / storage temperature:
-10 - +50°C / -30°- +60°C
Lens: 25 mm F1.1, manual focus Lens:
25 mm F1.1, manual focus
Old article number: GUIIR35 Old article number:
GUIIR35
Spectral range: 8 - 14 µm Spectral range:
8 - 14 µm
Sensor: 400x300 pixels 17 µm pixel size Sensor:
400x300 pixels 17 µm pixel size
Color: black Color:
black
In the box: thermal monocular, charger, wrist strap, USB-A - USB-C cable, Micro HDMI cable, soft case, warranty card, user's manual In the box:
thermal monocular, charger, wrist strap, USB-A - USB-C cable, Micro HDMI cable, soft case, warranty card, user's manual
Supported photo resolutions: 400x300 Supported photo resolutions:
400x300
Supported video resolutions: 400x300 Supported video resolutions:
400x300
Weight (g): 485 Weight (g):
485
Shock resistance: up to a drop from a height of 1 m Shock resistance:
up to a drop from a height of 1 m
Operating time: up to 5 hours Operating time:
up to 5 hours
Water resistance: IP66 Water resistance:
IP66
Product type: Thermal camera, Nightvision Product type:
Thermal camera, Nightvision
Type: Monocular Type:
Monocular
