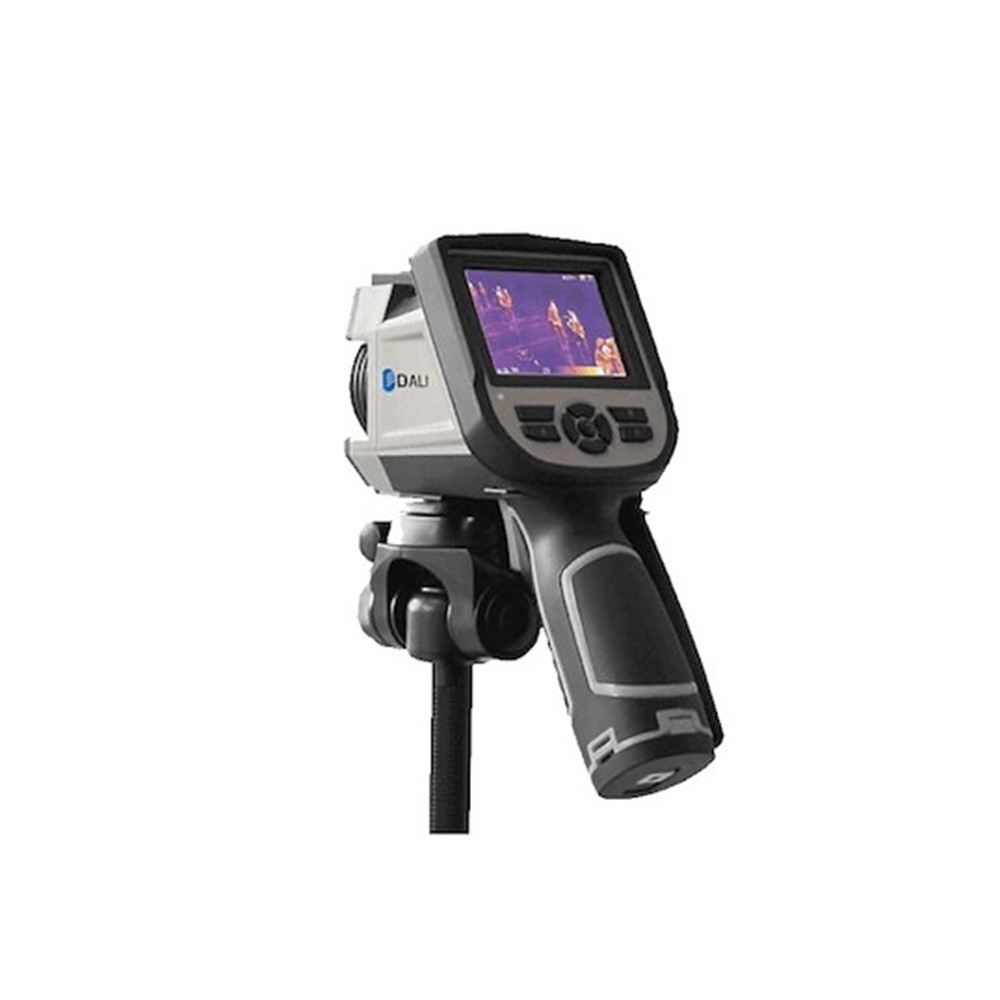

Dali TE-W300 body teperature thermal camera

You can access the information you need with one well-directed movement. Its extremely robust construction makes it easy to use and durable even in the event of increased use. It can be used ideally in a wide variety of areas, be it monitoring or even more serious medical use. Its ergonomic housing hides an LED light source, the manual fixing bracket can be placed on both sides of the handle, so it can be used comfortably with both right and left hands. The integrated 1/4" rack thread offers even wider use and data recording options.

The built-in 3.5" TFT LCD color display with 640x480 pixels shows the data captured by the sensor in great detail. Automatic and manual adjustment options enrich the image functions, and several selectable color modes are available to the user.

The TE-W2 measures temperatures from +20 to +50°C. Its accuracy is ±0.6℃. Automatic and manual modes are also available for measurement corrections. When choosing the measurement methods, it is possible to check up to 4 movable points or 3 movable (selectable) areas. It can record temperature along 1 movable line and offers the option of recording isotherms and measuring temperature differences. An alarm function can also be set in the form of a color or sound signal. The emission correction varies from 0.01 to 1.0. The automatic background temperature correction adapts to the user's settings. The correction of atmospheric influences is also automatically calculated by Dali's thermal camera. The designers really thought of everything.

The thermal camera can store images in JPEG format on a micro SD card (optional) with a maximum capacity of 16 GB. 8 GB is standard. It is possible to save the images automatically and manually, in addition to which the original thermal data is also saved. The audio commentary that can be saved next to the picture with the help of the built-in microphone can be a maximum of 60 seconds.

The included Li-Ion battery enables up to 4 hours of operation.

Characteristics:

• Shock-resistant up to a drop from 2 meters (25G, IEC 68-2-29)
• various temperature measurement functions
• IP54 level protection
• JPEG storage with audio commentary, MPEG4
• cost effectiveness
• laser pointer
• uncooled microbolometer
• sensor size 160x120 pixels
• IFOV: 2.72 mrad
• thermal sensitivity: ≤0.06℃@30℃
• image refresh: 50 / 60 Hz
• manual focus
• spectral measurement range: 8-14 µm
• °C / °F / K measurement
• external power supply option: yes, it can be operated from 12 V
• video output: yes, PAL/NTSC
• mini USB connection for image and data transfer
